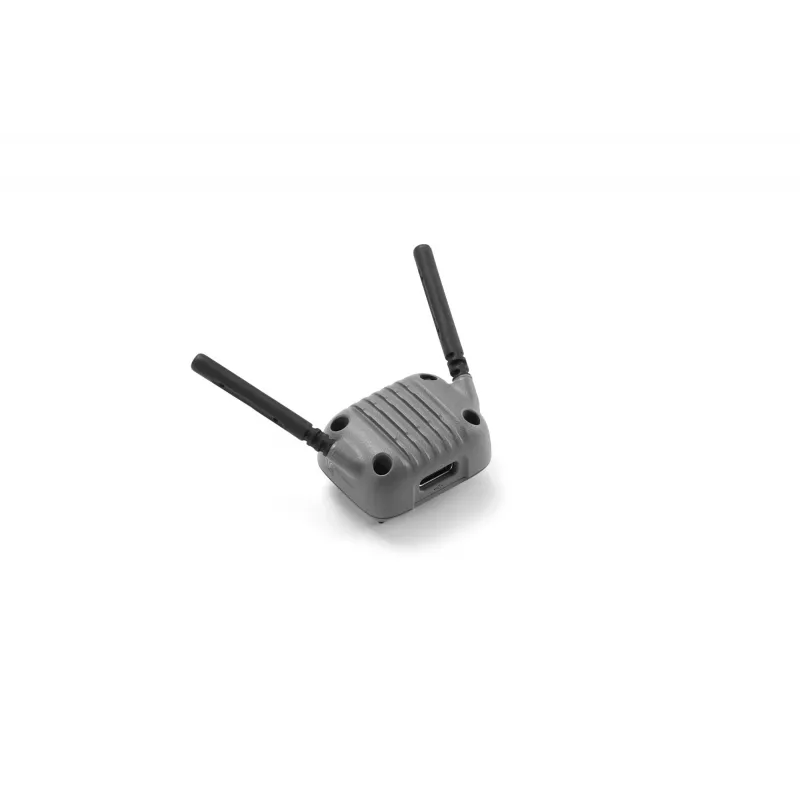

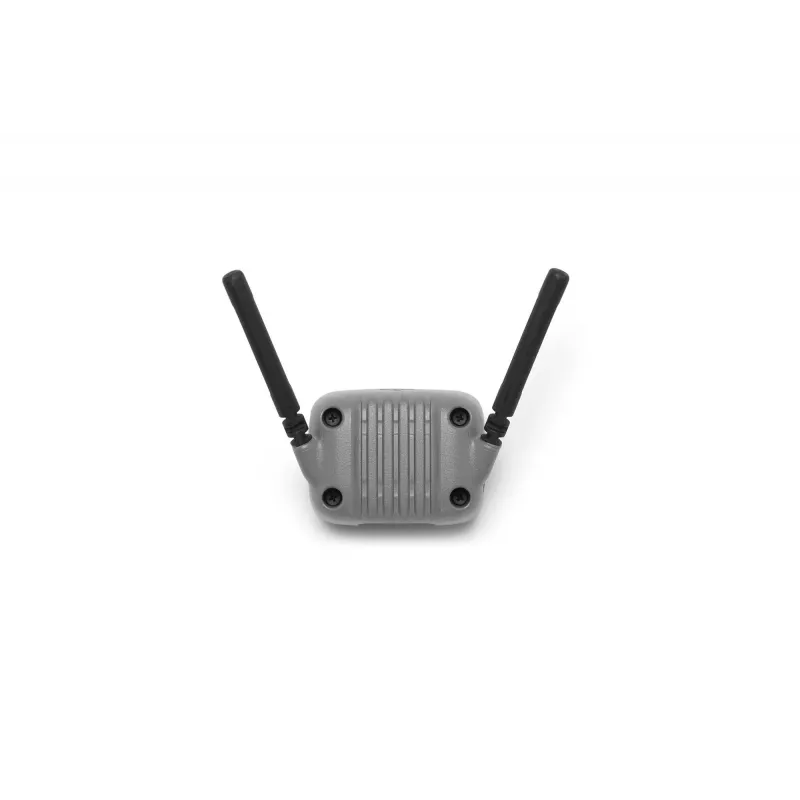

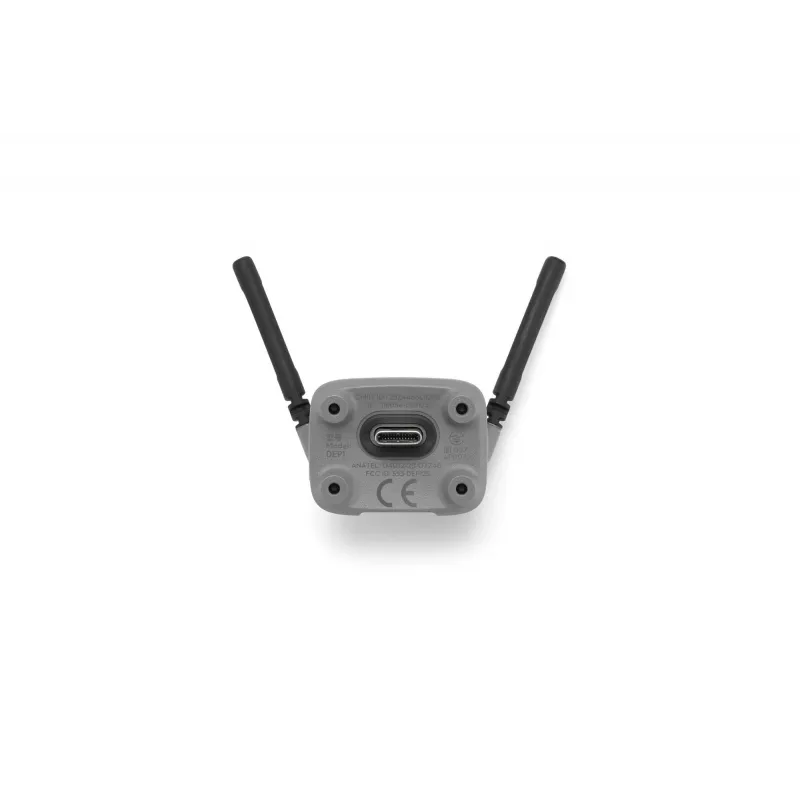

DJI Neo 2 Transceptor Digital Air Unit (CP.FP.00000276)

The DJI Neo 2 Digital Transceiver stands apart from conventional FPV air units by combining DJI's latest digital video transmission with a compact 20x20 mm mounting footprint, making it an ideal upgrade for pilots who demand low-latency HD video without sacrificing frame compatibility. This module delivers a crisp 1080p feed at up to 100 fps with latency as low as 28 ms, ensuring every maneuver feels immediate and precise.

Highlights

• DJI Neo 2 Digital Video Transmission system with 10 km max range (FCC)
• Ultra-low latency: 28 ms in Low Latency Mode (1080p/100fps)
• Supports DJI Goggles 2 and Goggles Integra, plus FPV Remote Controller 2
• Wide input voltage range: 7.4-26.4 V (2S-6S LiPo)
• MMCX antenna connector for flexible antenna options
• Customizable Betaflight OSD with stereo audio input

In daily use

Mount the Neo 2 on any frame with a standard 20x20 mm hole pattern and connect it to your flight controller for a seamless digital FPV experience. The auto frequency selection hops across 10 channels (FCC) to maintain a stable link, while manual mode gives you full control in crowded RF environments. With H.264 encoding at up to 50 Mbps, the video remains sharp even during high-speed passes, and the stereo audio input lets you capture engine sounds for immersive playback.

Full specifications

• Video Transmission System: DJI Neo 2 Digital Video Transmission
• Operating Frequency: 2.400-2.4835 GHz; 5.725-5.850 GHz
• Max Transmission Distance: 10 km (FCC), 2 km (CE/SRRC/MIC)
• Latency: 28 ms (1080p/100fps Low Latency), 40 ms (1080p/60fps High Quality)
• Max Video Bitrate: 50 Mbps
• Video Resolution & Frame Rate: 1080p@100fps, 1080p@60fps
• Input Power: 7.4-26.4 V (2S-6S LiPo)
• Operating Temperature: -10°C to 40°C (14°F to 104°F)
• Antenna Connector: MMCX
• Supported Goggles: DJI Goggles 2, DJI Goggles Integra
• Supported Remote Controller: DJI FPV Remote Controller 2
• Channels: 1-10 (FCC), 1-8 (CE/SRRC/MIC) in Auto and Manual modes
• Power Consumption: 4-9 W
• OSD Support: Customizable Betaflight OSD
• Video Encoding Format: H.264
• Audio Input: Yes (Stereo)
• Mounting Hole Pattern: 20x20 mm

Final note

For pilots seeking a reliable, high-performance digital video link in a compact package, the DJI Neo 2 Digital Transceiver delivers the range, clarity, and low latency needed for competitive racing and cinematic freestyle.
