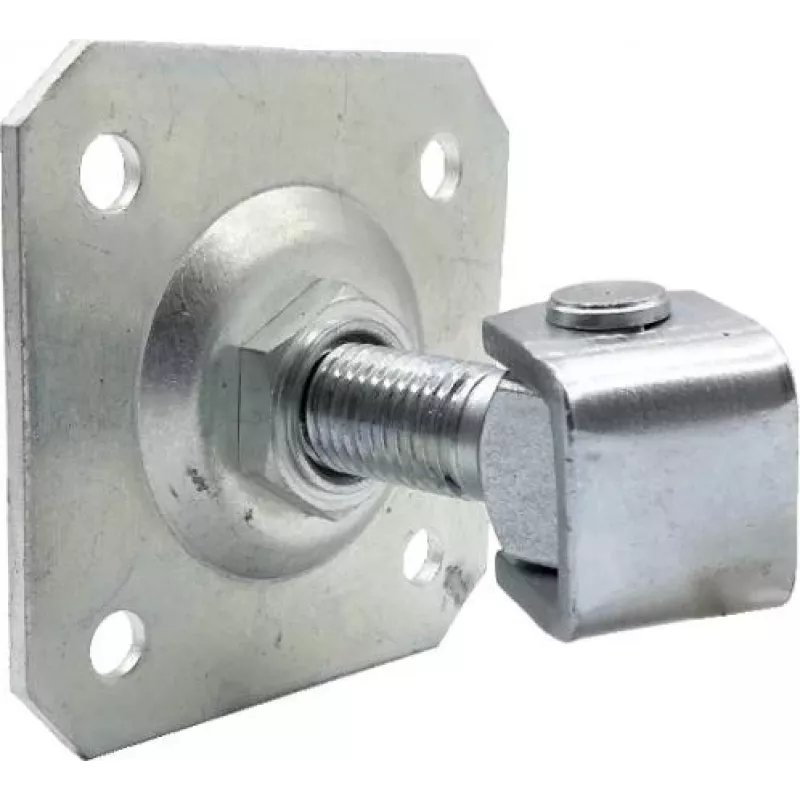

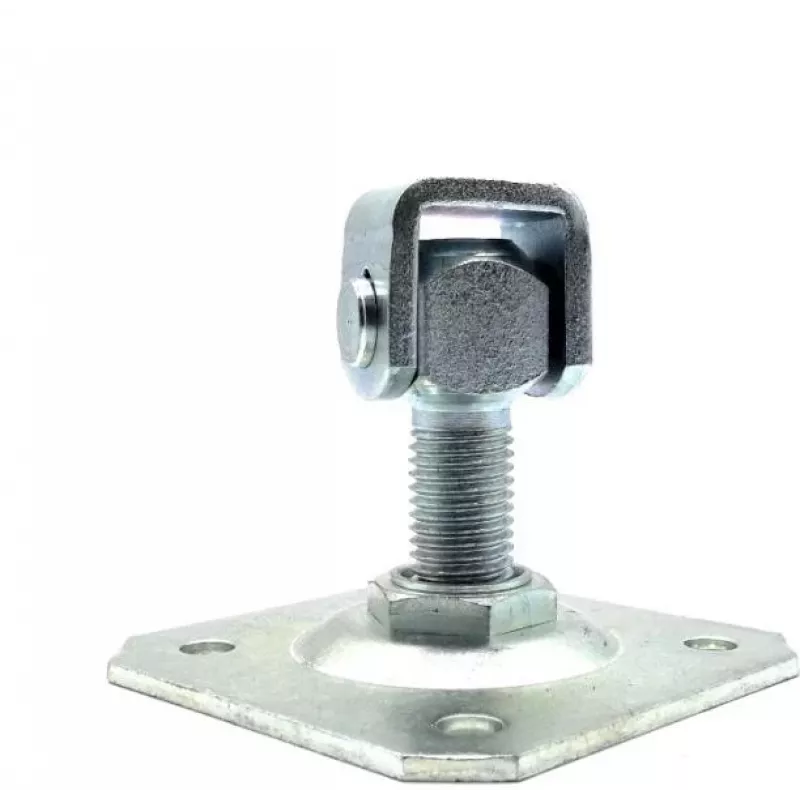

Dobradiça ajustável para soldar PSG 61.019.01 com placa de montagem 100x100x4mm - rosca M20 (argola galvanizada)

The PSG 61.019.01 is a heavy-duty adjustable weld-on hinge designed for demanding industrial applications. Featuring a robust mounting plate measuring 100x100x4mm and an M20 threaded eye, this hinge provides reliable performance for gates, doors, and metal constructions. The galvanized finish ensures excellent corrosion resistance, making it suitable for outdoor use.

Advantages

Vertical adjustability via threaded pin allows for precise alignment during installation. The weld-on design ensures a permanent, strong connection. High corrosion resistance extends service life in harsh environments.

Suitable for

• Heavy-duty gates
• Industrial doors
• Metal constructions
• Outdoor applications

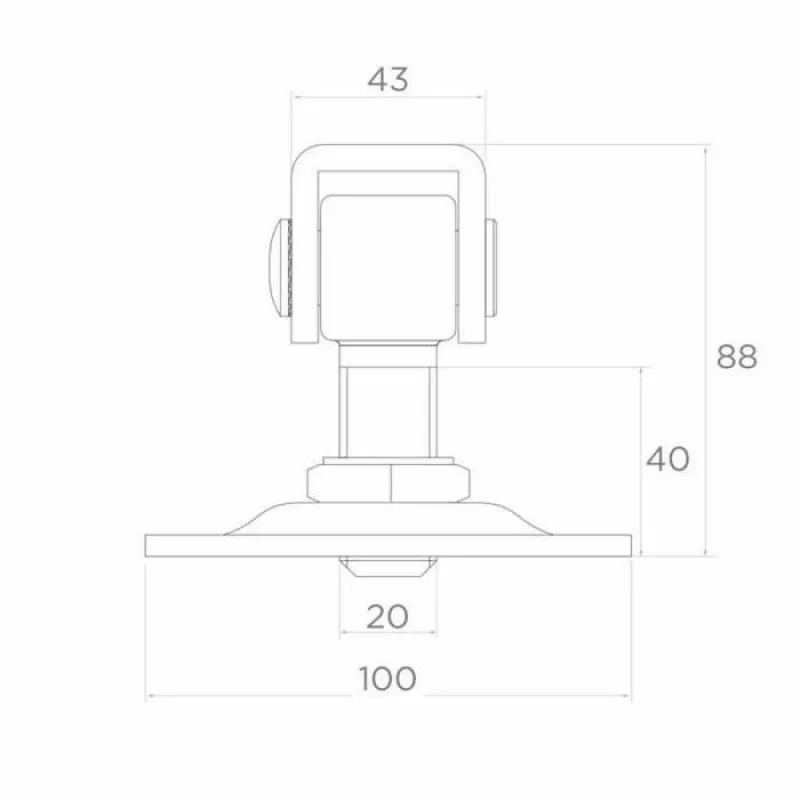

Key specifications

• Hinge Type: Adjustable Weld-on Hinge
• Mounting Plate Dimensions: 100 x 100 mm
• Mounting Plate Thickness: 4 mm
• Thread Size: M20
• Adjustability: Yes (vertical adjustment via threaded pin)
• Pin Material: Steel
• Surface Finish: Galvanized (Zinc Plated)
• Installation Method: Weld-on
• Weight: approx. 0.8 kg

Recommendations

For optimal performance, ensure proper welding technique and use appropriate safety equipment. Verify load capacity for your specific application.
