Dock para portátil/replicador de portas Conceptronic DONN02G USB 3.2 Gen 1 (3.1 Gen 1) Type-C alumínio

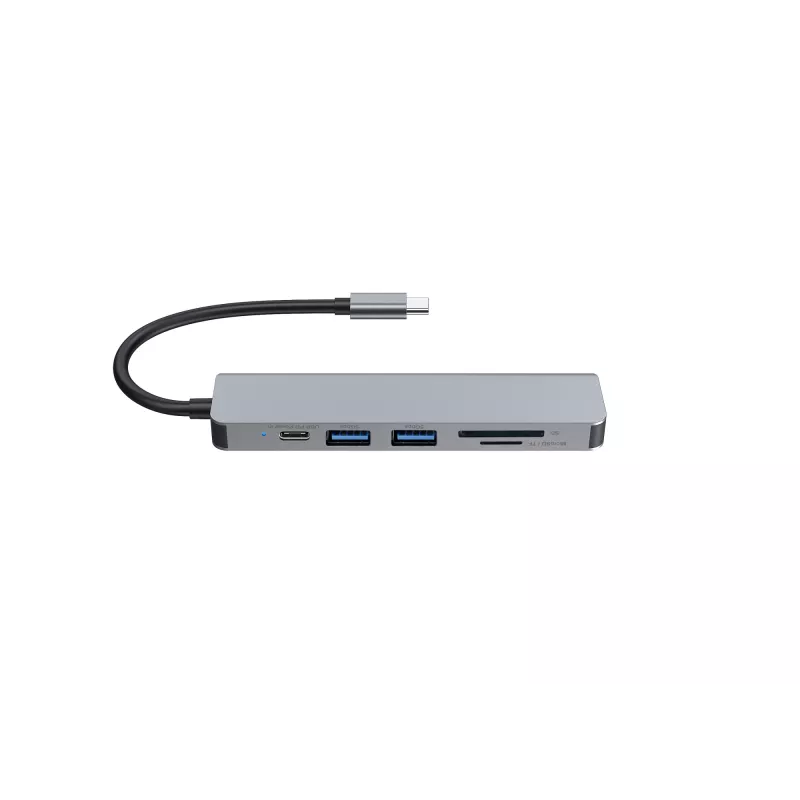

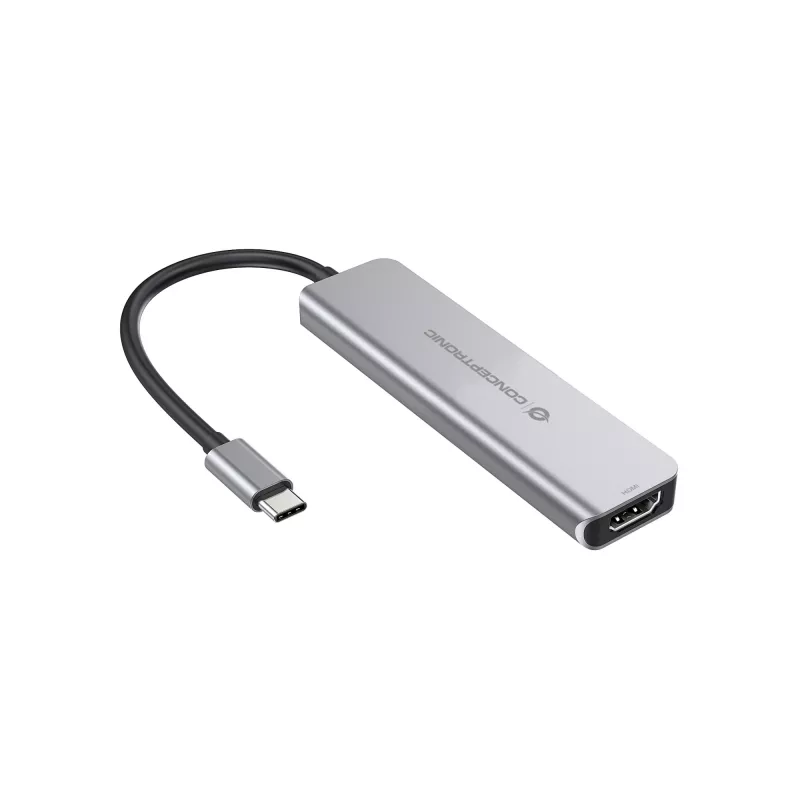

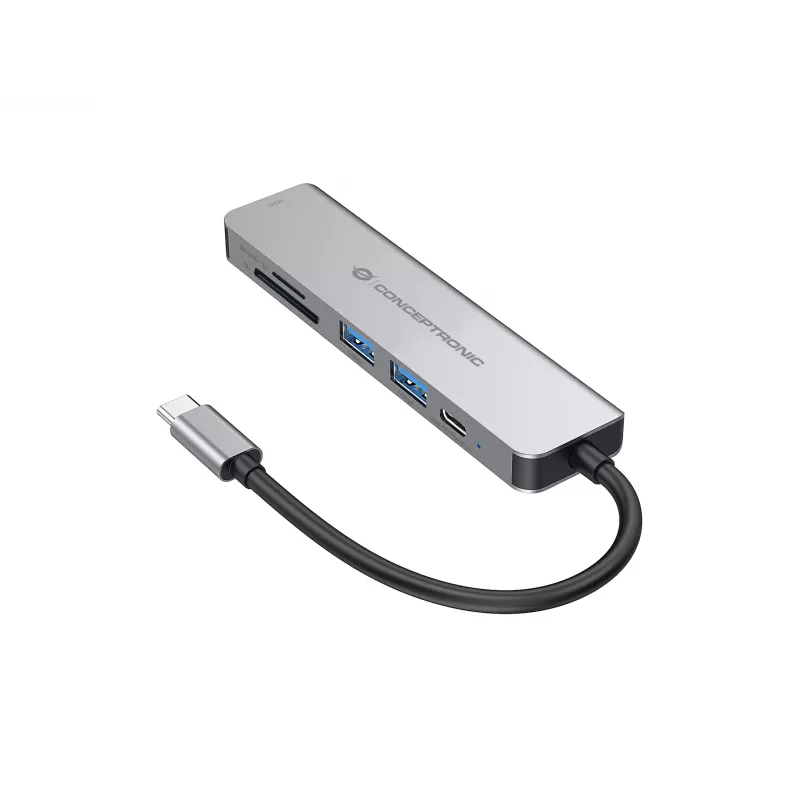

The Conceptronic DONN02G Laptop Dock is a compact 6-in-1 USB-C adapter and hub that expands a USB Type-C port with HDMI output, USB-C Power Delivery (PD) up to 60W, USB 3.0 Type-A data port and SD/MicroSD (TF) card readers. Housed in an aluminium casing and sized for portability, it connects to smartphones, gaming consoles, MacBook, Chromebook Pixel and other modern laptops with a USB-C host interface to add an external display, data transfer and card reading capabilities.

Advantages

This USB-C to HDMI adapter combines multiple functions in one small aluminium dock: HDMI video output for HDTVs, monitors or projectors, USB 3.2 Gen 1 Type-A for high-speed data transfer, USB-C PD pass-through to charge the host device (up to 60W) and built-in SD and MicroSD/TF card slots. The device uses a USB 3.2 Gen 1 (3.1 Gen 1) Type-C host interface for broad compatibility and offers a lightweight, space-saving design for desktop or mobile use.

Suitable for

• Connecting a laptop or smartphone with USB-C to an external monitor, TV or projector
• Charging a USB-C host device while using external peripherals (up to 60W PD)
• Transferring files via USB 3.2 Gen 1 Type-A port
• Reading SD, MicroSD or SDXC memory cards

Key specifications

• Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
• Hub interfaces: USB-C (PD passthrough), USB 3.2 Gen 1 Type-A, HDMI
• Power Delivery: up to 60W
• Memory card support: SD, MicroSD (TF), SDXC
• Product colour: Aluminium
• Dimensions (W×D×H): 35.8 mm × 120 mm × 15 mm
• Weight: 0.065 kg

How to use

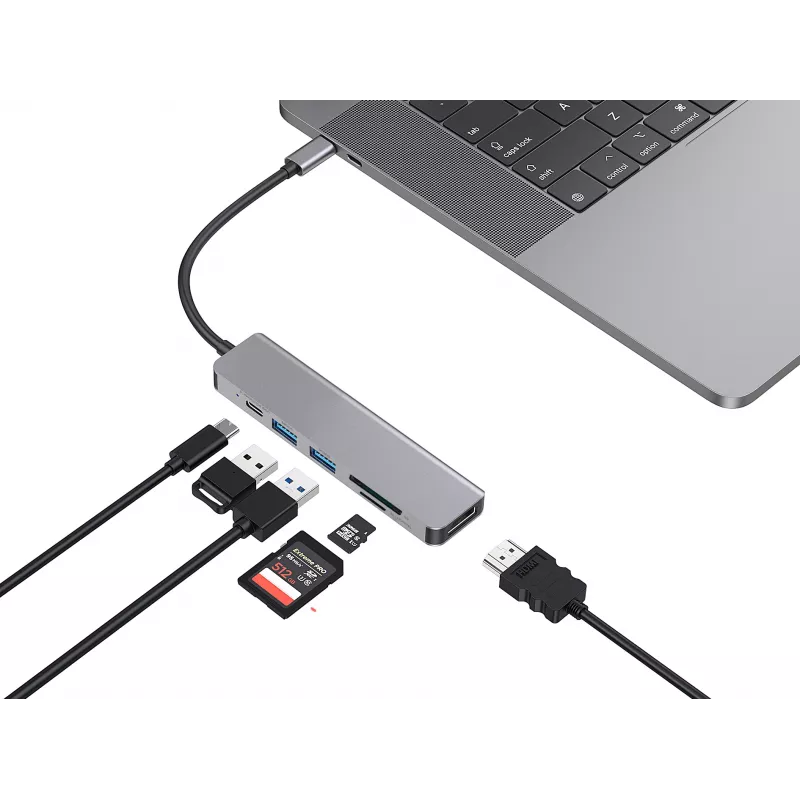

Connect the dock to a host device using the built-in USB-C cable or port. Plug an HDMI cable from the dock to a TV, monitor or projector to mirror or extend the display; ensure the host device supports video output over USB-C (DisplayPort Alt Mode). For charging, connect a USB-C PD charger to the dock’s USB-C power input to supply up to 60W to the host while peripherals are in use. Insert SD or MicroSD cards into the corresponding slots and use the USB Type-A port for data transfers with external drives or peripherals.

Recommendations

Use a USB-C cable and power adapter rated for PD and adequate wattage to achieve full 60W charging. Verify that your host device supports DisplayPort Alt Mode over USB-C for HDMI output. Avoid forcing cards into the slots and insert/remove memory cards while the host is not actively writing to them to prevent data loss.
