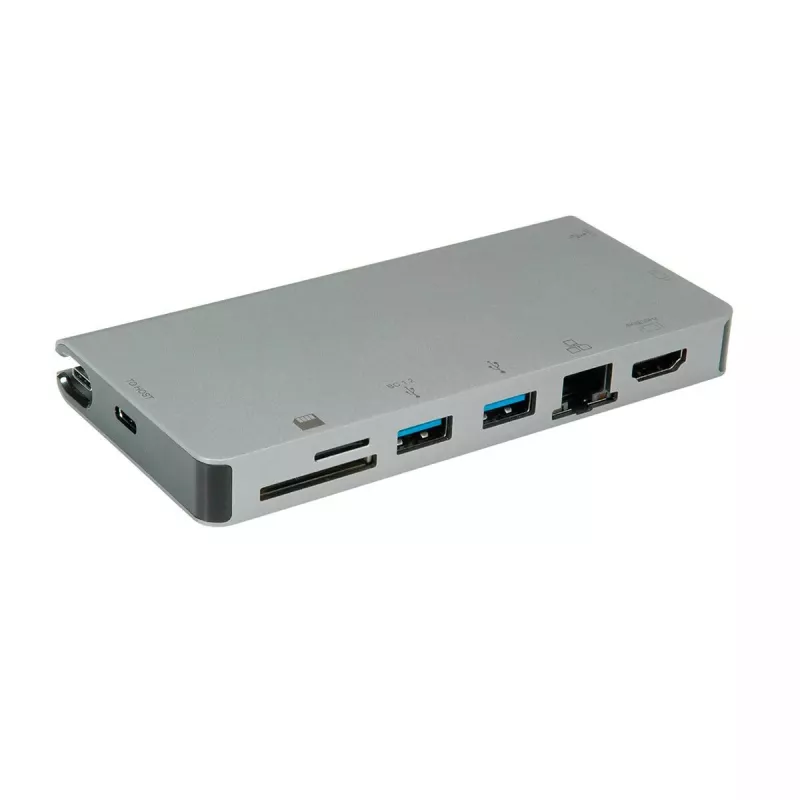

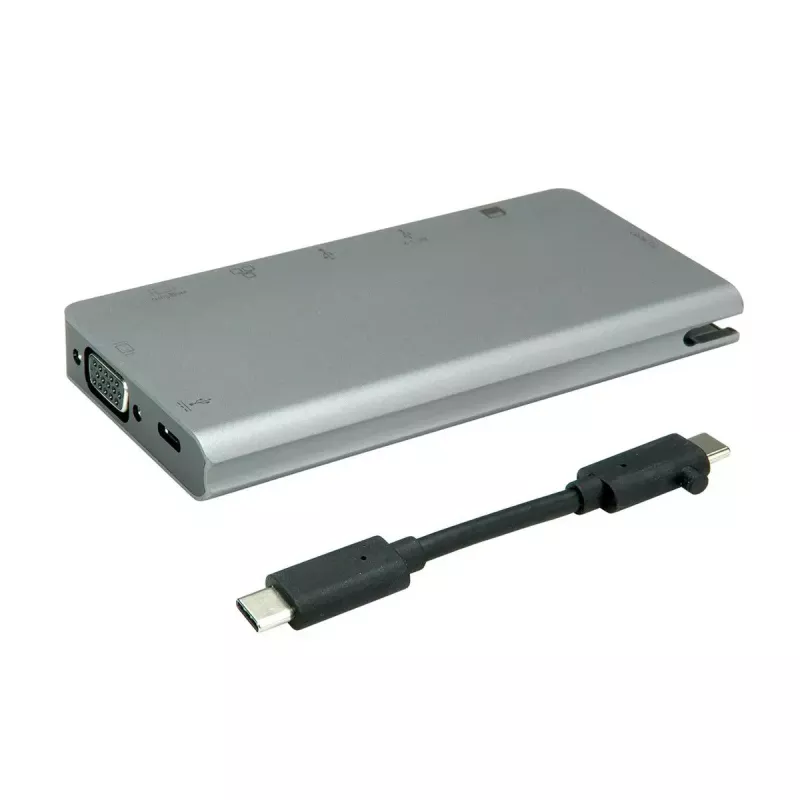

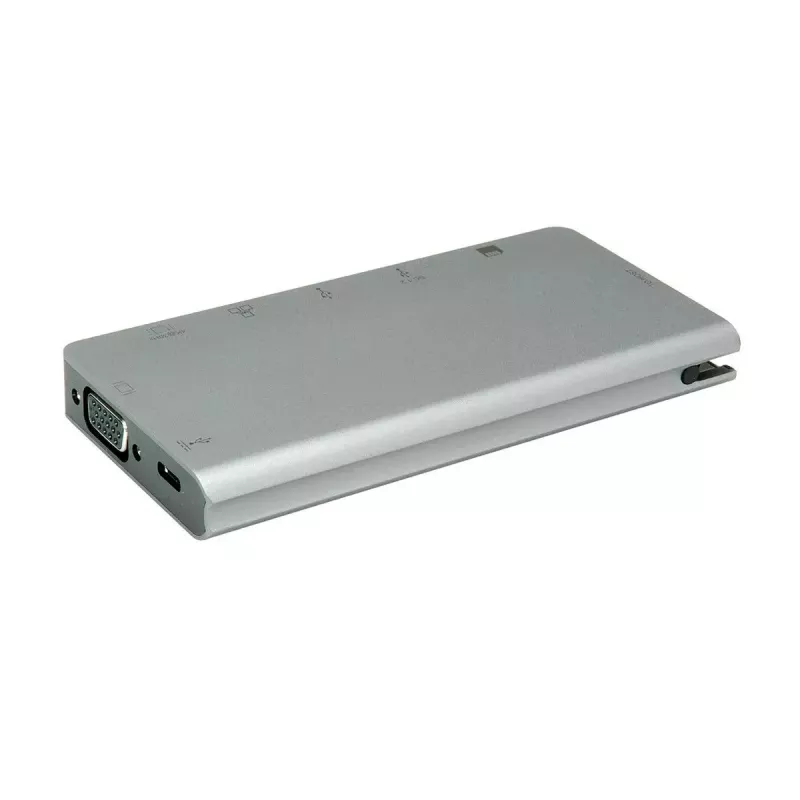

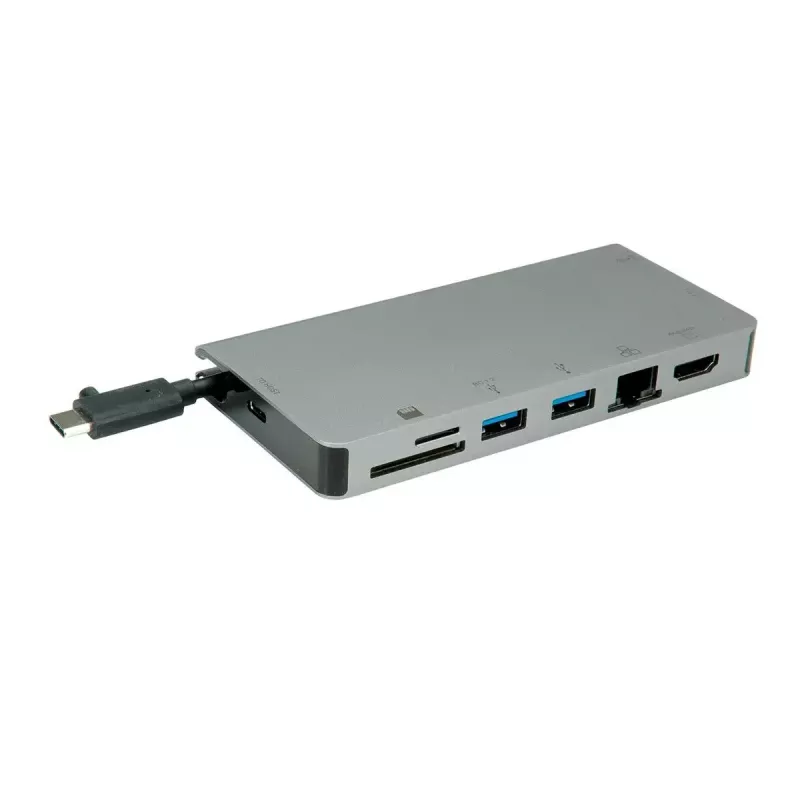

Dock para portátil ROLINE 12.02.1022

Docking Station for MacBooks, Ultrabooks and notebooks that expands a USB-C port into HDMI (4K @60Hz), VGA, Gigabit Ethernet, SD/MicroSD card reader, two USB 3.2 Gen 1 Type-A ports and a USB-C Power Delivery port. The ROLINE 12.02.1022 offers wired USB 3.2 Gen 1 Type-C connectivity, Gigabit LAN (10/100/1000 Mbit/s) and a compact grey housing suitable for desktop or mobile work setups.

Advantages

This dock provides simultaneous video output via HDMI up to 3840x2160 @60Hz and an additional VGA output, fast data transfer over two USB 3.2 Gen 1 Type-A ports (up to 5 Gbit/s), integrated SD/MicroSD card support and a Gigabit Ethernet port for stable wired network connections. The built-in USB-C PD port enables power delivery to compatible laptops while keeping cable clutter to a minimum.

Suitable for

• Expanding connectivity of USB-C equipped laptops and ultrabooks
• Connecting external monitors via HDMI and VGA
• Stable wired network access for office and home use
• Transferring files from SD and MicroSD cards

Key specifications

• Model: ROLINE 12.02.1022
• Connectivity: Wired USB 3.2 Gen 1 Type-C
• Video outputs: 1× HDMI (up to 3840x2160 @60Hz), 1× VGA (D-Sub)
• USB ports: 2× USB 3.2 Gen 1 Type-A (5 Gbit/s)
• Card reader: SD / MicroSD
• Ethernet: 1× RJ-45 Gigabit LAN (10/100/1000 Mbit/s)
• Output power (dock): 5 V, 1.5 A
• Colour: Grey

How to use

Connect the docking station to your laptop’s USB-C port. Attach external displays to the HDMI and/or VGA ports and connect peripherals to the USB-A ports. Insert SD or MicroSD cards into the card slot to access media files. Plug an Ethernet cable into the RJ-45 port for wired network access. If your laptop supports USB-C Power Delivery, connect its USB-C PD cable to the dock’s PD port to enable charging while using the dock.

Recommendations

For optimal video performance use the HDMI port for high-resolution external displays (up to 3840x2160 @60Hz). When both HDMI and VGA are connected, check your laptop’s display settings as some systems may limit concurrent output. Use a shielded Ethernet cable for the best network stability and verify your laptop supports USB-C PD if you plan to charge through the dock.
