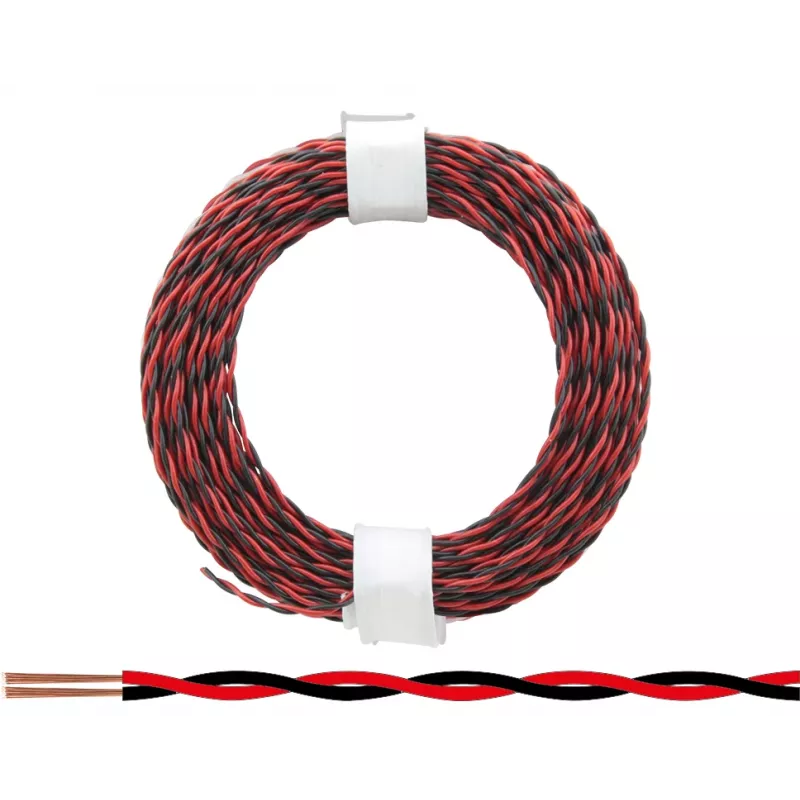

Donau Elektronik 210-10 fio flexível 2 x 0,04 mm² vermelho/preto 10 m

Low-voltage litz wire with two tinned copper conductors, each 0.04 mm², in a red/black PVC jacket. Ideal for signal wiring, model building, and electronics projects where flexibility and compact dimensions matter.

Advantages

The 7-strand construction (7 x 0.1 mm) provides excellent flexibility, allowing the wire to be routed through tight spaces without breaking. Tinned copper conductors resist corrosion and ensure reliable soldering. The PVC insulation offers good dielectric strength and abrasion resistance, while the colour-coded red and black cores simplify polarity identification. Rated for 30 V and temperatures from -20 to +80 °C, this wire is suitable for a wide range of low-voltage applications.

Suitable for

• Signal and control circuits
• Model building and hobby electronics
• Prototyping and educational projects
• Low-voltage LED lighting
• Sensor wiring

Key specifications

• Wire type: Litz wire
• Number of cores: 2
• Core cross-section: 0.04 mm²
• Conductor material: Tinned copper
• Insulation: PVC
• Colour: Red/Black
• Rated voltage: 30 V
• Length: 10 m
• Outer diameter per core: 0.8 mm
• Conductor construction: 7 x 0.1 mm
• Conductor resistance: 480 Ohm/km
• Operating temperature: -20 to +80 °C
• Packaging: Spool

Recommendations

For reliable low-voltage connections, strip the insulation carefully and tin the conductors before soldering. Use heat-shrink tubing to protect joints. Store the spool in a dry place to maintain insulation integrity.
