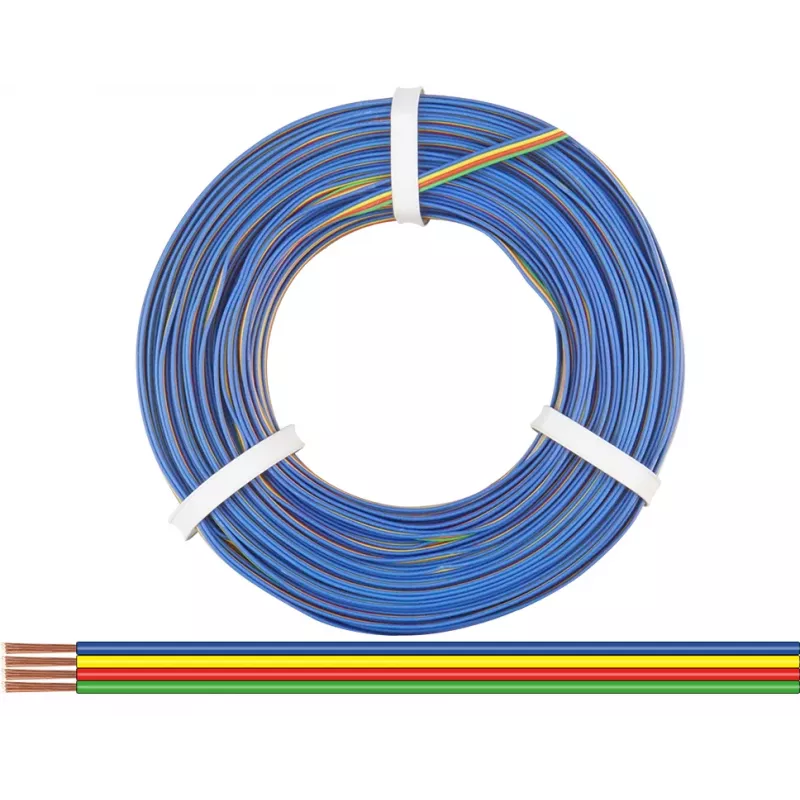

Donau Elektronik 418-50 cabo multifilar 4 x 0,14 mm², verde/vermelho/amarelo/azul, 50 m

This multi-core stranded cable from Donau Elektronik offers four colour-coded conductors in a single PVC jacket, ready for internal wiring and model building where space is tight but reliability matters. The 0.14 mm² cross-section and tinned copper strands keep soldering easy and connections stable.

Highlights

• 4 cores, each 0.14 mm² (26 AWG) stranded tinned copper
• Core colours: green, red, yellow, blue
• PVC insulation and outer jacket, 300 V nominal voltage
• Temperature range -20°C to +70°C, outer diameter approx. 3.5 mm
• Supplied on a 50 m spool

In daily use

The colour-coded cores simplify circuit identification, and the flexible stranded construction routes easily through narrow enclosures. The PVC jacket provides basic mechanical protection while keeping the overall diameter small.

Full specifications

• Cable type: multi-core stranded cable
• Number of cores: 4
• Core cross-sectional area: 0.14 mm²
• AWG equivalent: 26 AWG
• Core colours: green, red, yellow, blue
• Cable length: 50 m
• Conductor material: tinned copper
• Insulation material (core): PVC
• Jacket material (outer): PVC
• Nominal voltage: 300 V
• Temperature range: -20°C to +70°C
• Outer diameter: approx. 3.5 mm
• Conductor construction: stranded
• Application: electronics, model building, internal wiring
• Packaging: on spool

Final note

A practical 50 m spool of fine-stranded hook-up wire with four distinct colours for versatile low-voltage wiring tasks.
