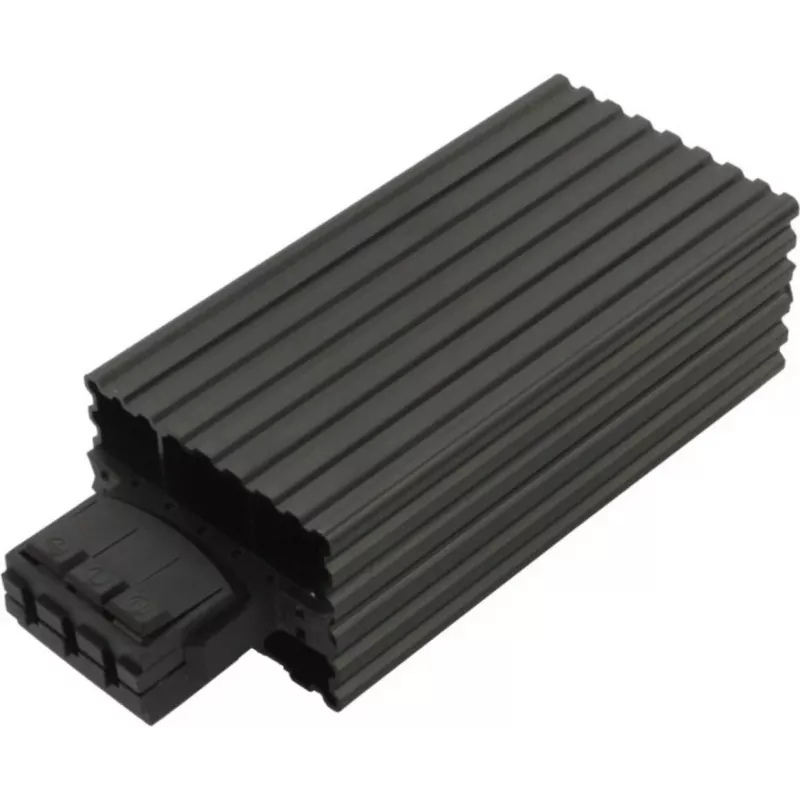

DSIT 100W elemento de aquecimento PTC para armários de exterior (DS-Heater-3)

PTC heating element delivering 100W of self-regulating warmth for outdoor server cabinets and industrial enclosures, preventing condensation and protecting sensitive electronics in sub-zero conditions. The DS-Heater-3 uses Positive Temperature Coefficient technology to automatically adjust resistance as temperature rises, eliminating overheating risks without external controls.

Advantages

PTC self-regulating heating element adjusts power output based on ambient temperature, preventing overheating without external controls. The anodized aluminum profile housing offers excellent thermal conductivity and corrosion resistance, ensuring long-term durability in harsh environments. Tool-free DIN rail mounting simplifies installation and maintenance, while screw terminals guarantee secure electrical connections. CE and RoHS compliance ensures safety and environmental responsibility.

Suitable for

• Outdoor telecommunication and server cabinets
• Industrial control panels and electrical enclosures
• Wind turbine and solar power equipment housings
• Traffic control systems and outdoor kiosks

Key specifications

• Power: 100W at 230V AC (approx. 0.43A)
• Heating technology: PTC self-regulating, convection
• Mounting: 35mm DIN rail, screw terminals
• Housing: Anodized aluminum profile, IP20
• Ambient temperature range: -20°C to +70°C

Recommendations

For optimal performance, pair with an external thermostat for precise temperature control in critical applications. Ensure proper ventilation around the heater to maintain efficient operation.
