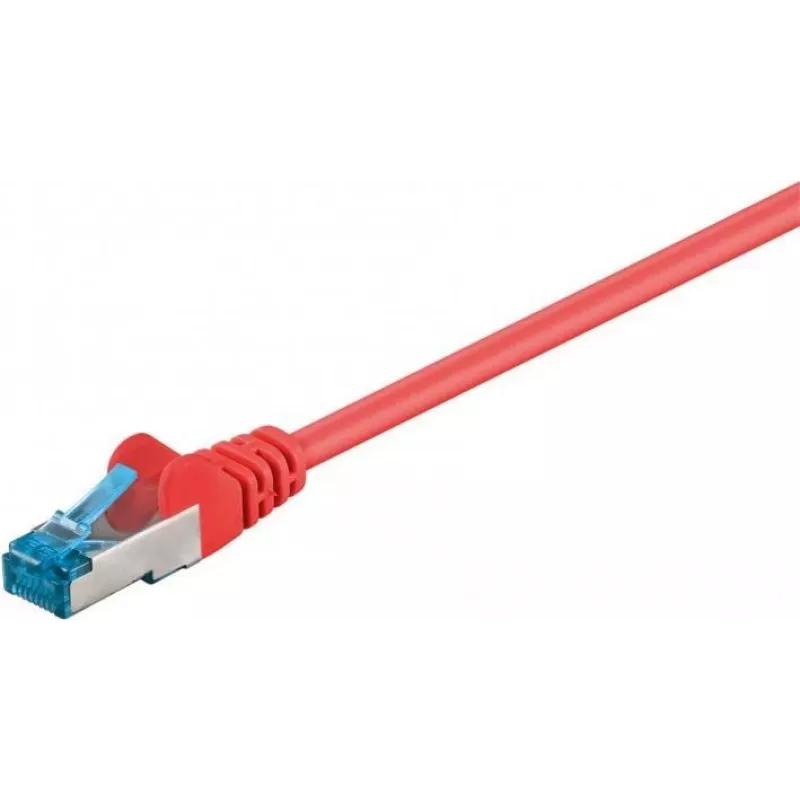

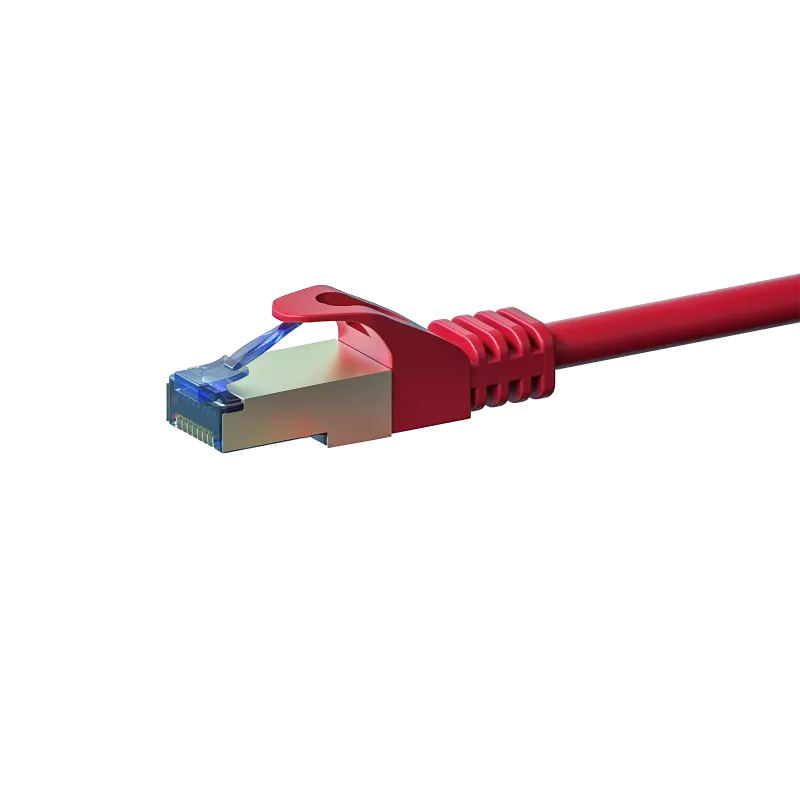

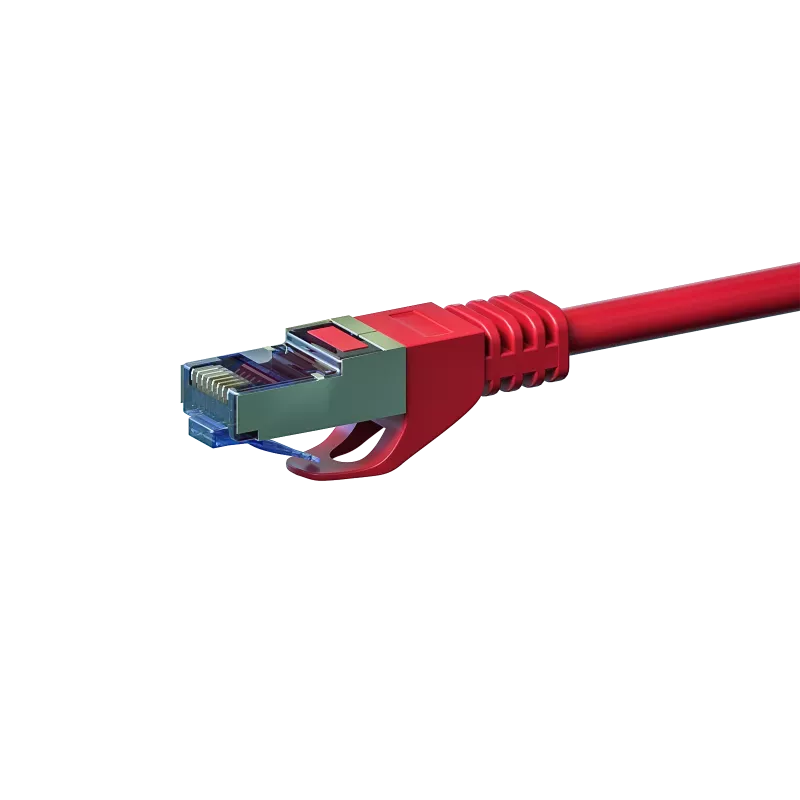

DSIT Cabo de rede CAT 6a LSOH - S/FTP - 1 metro - Vermelho (DC-6A5-010)

In a busy data center, a technician reaches for a red patch cable to connect a server to a 10 Gigabit switch. The DSIT CAT 6a Network Cable LSOH is built for exactly this moment: a 1-meter, S/FTP shielded link that maintains signal integrity at 500 MHz. Its LSOH jacket means that in the event of fire, it emits low smoke and zero halogens, protecting both people and equipment. This cable is not just a connector; it's a critical component of a high-performance network infrastructure.

Key specifications

• Category: Cat 6a (Category 6a)
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Length: 1 meter
• Colour: Red
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Connectors: RJ45 male to RJ45 male, gold-plated contacts
• Performance: 10 Gigabit Ethernet, 500 MHz bandwidth
• Conductor: Pure copper, 26 AWG, stranded
• Wiring: TIA/EIA-568B, 4 twisted pairs
• Impedance: 100 Ohm
• Compliance: RoHS, CE, ISO/IEC 11801, TIA/EIA-568-C.2
• Fire safety: IEC 60332-1, IEC 61034-2, IEC 60754-2
• Operating temperature: -20°C to 60°C

Why choose it

This cable delivers reliable 10Gbps performance with superior shielding to minimise crosstalk and EMI. The LSOH jacket is a safety feature that matters in enclosed spaces like server rooms and offices. Its red colour aids in quick identification and organisation. With pure copper conductors and gold-plated contacts, you get durability and consistent connectivity for years.

Ideal use cases

• Data center patching between servers and switches
• High-speed workstation connections in offices
• Home networks with 10G NAS or media servers
• Structured cabling in commercial buildings
• Any environment requiring low-smoke, zero-halogen cabling

Good to know

The S/FTP construction means each pair is foiled and the overall cable is braided, providing excellent protection against alien crosstalk. The stranded conductors make the cable flexible and easy to route. This cable is fully backward compatible with Cat 5e and Cat 6 networks, so it's a future-proof investment for your infrastructure.
