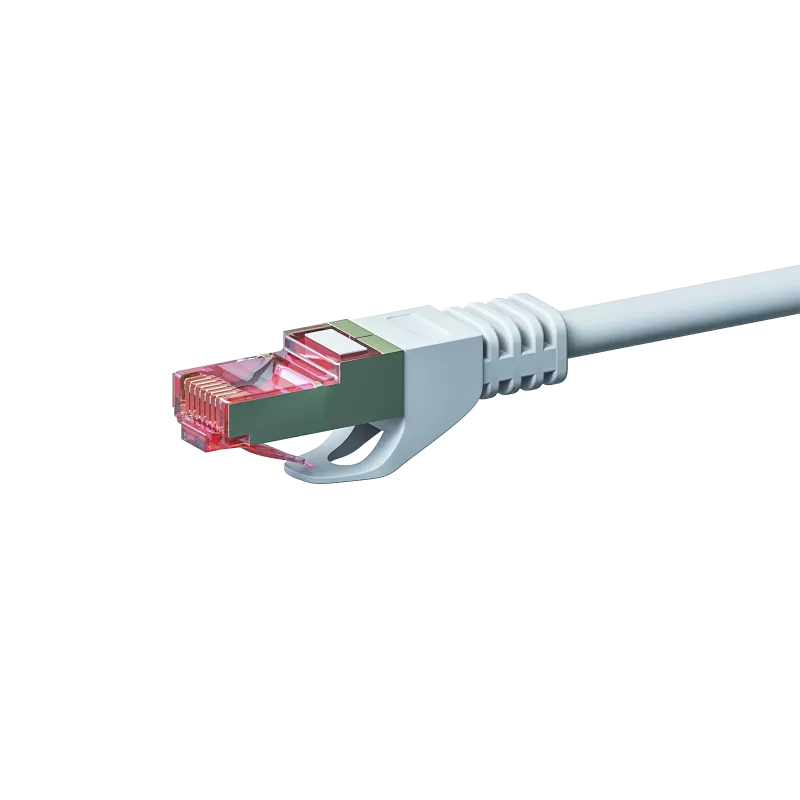

DSIT CAT 6 Cabo de rede LSOH - S/FTP - 3 Metros - Branco (DC-S62-030)

For installations where safety and signal integrity cannot be compromised, the DSIT CAT 6 S/FTP LSOH cable stands apart from ordinary patch leads. Each of its four twisted pairs is individually foil-shielded, and the entire bundle is wrapped in an additional braided screen—an S/FTP construction that virtually eliminates alien crosstalk in dense racks. The low-smoke zero-halogen jacket means that in the event of fire, emissions are dramatically reduced, making it suitable for public buildings, offices, and any environment where people and equipment share space.

Highlights

• CAT 6 performance up to 250 MHz and 10GBASE-T Ethernet
• S/FTP shielding: foil per pair plus overall braid for superior noise immunity
• LSOH (Low Smoke Zero Halogen) jacket for enhanced fire safety
• Gold-plated RJ45 connectors (50µm) ensure reliable, corrosion-resistant contacts
• Stranded bare copper conductors (AWG 26/7) offer flexibility without sacrificing signal quality

In daily use

At 3 meters, this white patch cable bridges the gap between patch panels, switches, and workstations with clean, professional routing. The stranded conductors make it easy to dress into cable managers and around corners, while the robust S/FTP shielding maintains a stable 100 Ohm impedance even when bundled with power cables. Whether you are upgrading a server room or connecting a high-performance desktop, the DSIT DC-S62-030 delivers consistent, error-free links.

Full specifications

• Category: CAT 6
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Length: 3 m
• Colour: White
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Connector type: RJ45 male to RJ45 male
• Connector plating: Gold (50µm)
• Conductor material: Bare copper
• Conductor gauge: AWG 26/7 (stranded)
• Bandwidth: Up to 250 MHz
• Data transfer rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Wiring standard: TIA/EIA-568B
• Impedance: 100 Ohm
• Number of pairs: 4
• Outer diameter: Approx. 6.0 mm
• Fire safety standards: IEC 60332-1, IEC 61034, IEC 60754
• Operating temperature: -20°C to 60°C

Final note

DSIT's commitment to certified performance and safety makes this LSOH S/FTP cable a dependable choice for mission-critical networking. Install it once and forget about interference, corrosion, or compliance worries.
