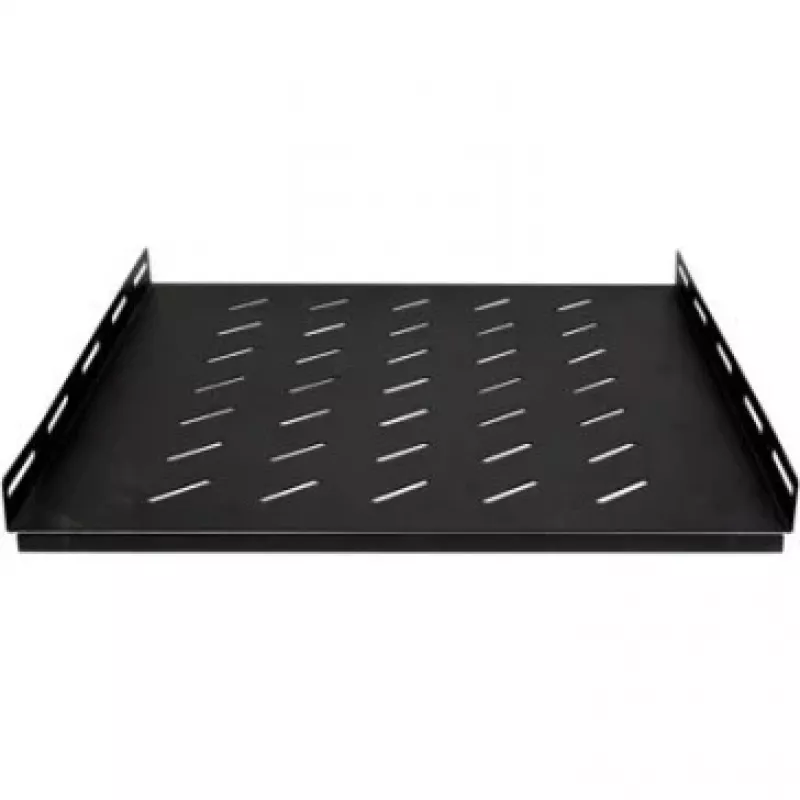

DSIT DS-FH120 Prateleira fixa para rack para armários de servidor de 1200mm de profundidade, carga de 30kg, 1U, preto

Server rooms often struggle with limited rack space and the need for stable, secure mounting of non-rackable equipment. The DSIT DS-FH120 fixed shelf solves this by providing a robust, 1U platform that fits 19-inch racks with 1200mm depth, supporting up to 30kg of equipment such as servers, UPS units, or KVM switches. Its solid steel construction and powder-coated finish ensure durability, while the included mounting hardware simplifies installation.

Who is it for

This shelf is ideal for IT professionals, data center managers, and system integrators who need to mount equipment that cannot be directly rack-mounted, or who require additional support for heavy devices in deep server cabinets. It is particularly suited for 1200mm deep enclosures, providing a stable base without wasting vertical space.

Main features

• 1U height, 19-inch standard mounting, compatible with 1200mm deep cabinets
• Fixed shelf design with 4-point mounting (front and rear) for stability
• Load capacity of 30kg, suitable for servers, network devices, UPS, and KVM switches
• Solid steel construction with black powder-coated finish for durability and corrosion resistance
• Ventilated? No, solid (non-vented) surface protects equipment from dust and debris
• Includes mounting screws and cage nuts for easy installation
• RoHS compliant

Specifications

• Rack unit height: 1U
• Mounting standard: 19-inch
• Shelf depth: 550 mm
• Compatible cabinet depth: 1200 mm
• Mounting type: Fixed shelf
• Load capacity: 30 kg
• Material: Steel
• Colour: Black
• Mounting points: 4-point (front and rear)
• Ventilation: Solid (non-vented)
• Finish: Powder-coated
• Installation: Rack-mountable
• Product type: Server cabinet shelf
• Overall width: 482.6 mm
• Overall height: 44.45 mm
• Adjustable depth: No
• Compliance: RoHS
• Included hardware: Mounting screws and cage nuts
• Application: Servers, network devices, UPS, KVM switches

Tips

Before installation, verify that your cabinet's vertical rails are properly aligned and that the depth is indeed 1200mm to ensure a perfect fit. Use the included cage nuts to secure the shelf at all four mounting points for maximum stability. For heavier equipment, distribute weight evenly across the shelf surface. This shelf is not vented, so ensure adequate airflow around your equipment if heat dissipation is a concern.
