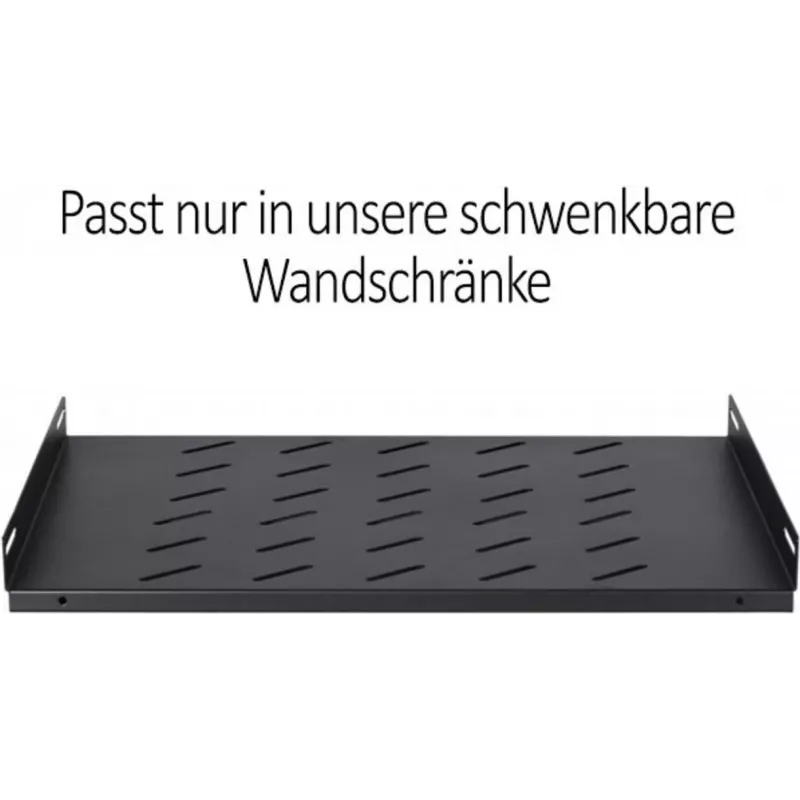

DS-IT Prateleira fixa para armários de parede giratórios de 600 mm de profundidade, 1U, cinzento-claro

Fixed shelf engineered for 600mm deep swivel wall cabinets, delivering a robust 25 kg static load capacity in a compact 1U form factor. Its solid steel construction with light grey powder coating provides a clean, professional appearance while ensuring long-term durability.

Advantages

The shelf features a 4-point mounting system that secures to both front and rear rails, guaranteeing stability even in vibration-prone environments. The solid, non-perforated surface prevents small items from falling through, making it ideal for storing tools, documents, or non-ventilated equipment. The light grey RAL 7035 finish blends seamlessly with standard rack aesthetics and resists scratches and corrosion.

Suitable for

• Swivel wall mount cabinets with 600 mm depth
• 19-inch rack installations requiring a fixed 1U shelf
• Storing equipment up to 25 kg, such as small UPS units, patch panels, or test instruments
• Environments where a solid, non-ventilated shelf is preferred

Key specifications

• Rack unit height: 1U
• Compatible cabinet depth: 600 mm
• Shelf depth: 350 mm
• Shelf width: 482.6 mm (19-inch standard)
• Material: Steel
• Colour: Light grey (RAL 7035)
• Load capacity: 25 kg static
• Mounting: 4-point, front and rear
• Ventilation: Solid (non-perforated)
• Finish: Powder coated
• Compliance: EIA-310-D, IEC 60297-3-100
• Included accessories: Mounting screws and cage nuts

Recommendations

For optimal performance, ensure the swivel wall cabinet is properly secured to the wall and that the shelf is mounted using all four points. Distribute weight evenly across the shelf surface and avoid exceeding the 25 kg load limit. Use the included cage nuts for a secure fit in square-hole rack rails.
