DSIT DS-Patch6a-24UTP painel de patch CAT6a UTP 24 portas, 19 inch 1U, 10GbE, PoE+

Handle 10 Gigabit Ethernet with headroom to spare: the DSIT DS-Patch6a-24UTP delivers full CAT6a performance up to 500 MHz across 24 ports in a compact 1U 19-inch footprint. This unshielded patch panel is built for dense, high-speed copper networks where reliability and easy termination matter most.

Overview

The DS-Patch6a-24UTP is a 24-port Category 6a unshielded patch panel designed for 19-inch racks. It provides a central termination point for horizontal cabling, enabling flexible patching to switches and other active equipment. The panel supports all PoE standards, making it suitable for powering devices like IP cameras, wireless access points, and VoIP phones.

What stands out

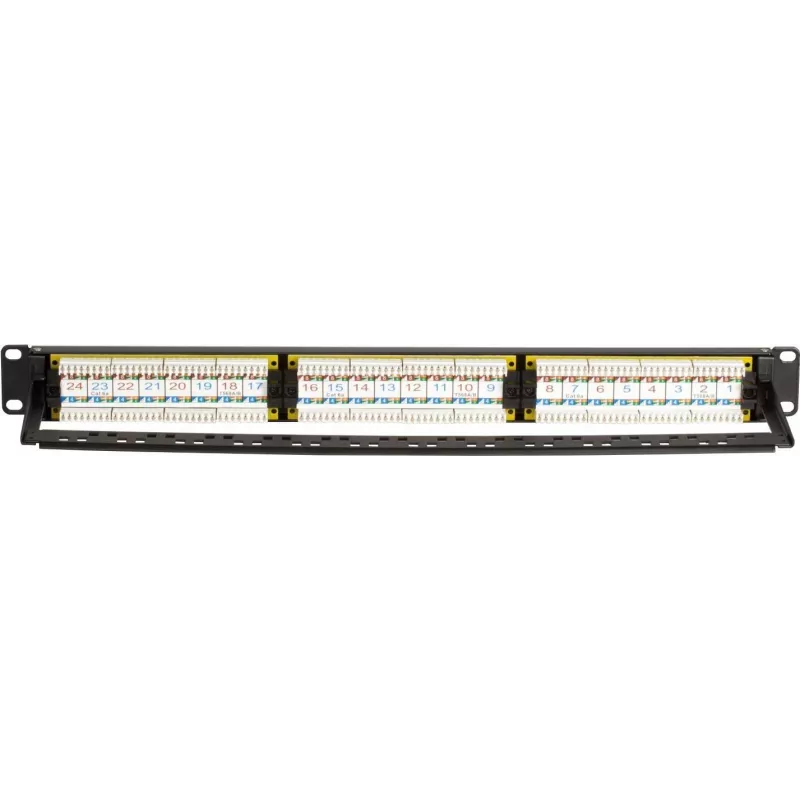

• 24 RJ45 ports with rear 110-style IDC termination blocks, colour-coded for T568A/B wiring.
• CAT6a performance: supports 10GBASE-T up to 500 MHz bandwidth.
• Robust SPCC steel housing with black finish and grounding option for long-term durability.
• Compatible with PoE, PoE+, and 4PPoE (IEEE 802.3af/at/bt) for high-power devices.
• Backwards compatible with CAT6, CAT5e, and CAT5 cabling.

Technical details

• Product type: Network patch panel
• Cable category: CAT6a
• Shielding: UTP (unshielded)
• Ports: 24 x RJ45 female
• Rack size: 19-inch, 1U height
• Rear termination: IDC (insulation displacement connector)
• Wiring standard: TIA/EIA 568 A/B
• Housing material: SPCC steel
• Frequency bandwidth: up to 500 MHz
• Data transfer rate: 10 Gbps
• Power over Ethernet: PoE, PoE+, 4PPoE supported
• Grounding option: yes
• Operating temperature: -10°C to 60°C
• Colour: black

Our verdict

A dependable, no-nonsense CAT6a patch panel that delivers 10GbE performance and PoE+ support in a space-saving 1U design. The steel construction and clear labelling make it a solid choice for both new installations and upgrades.
