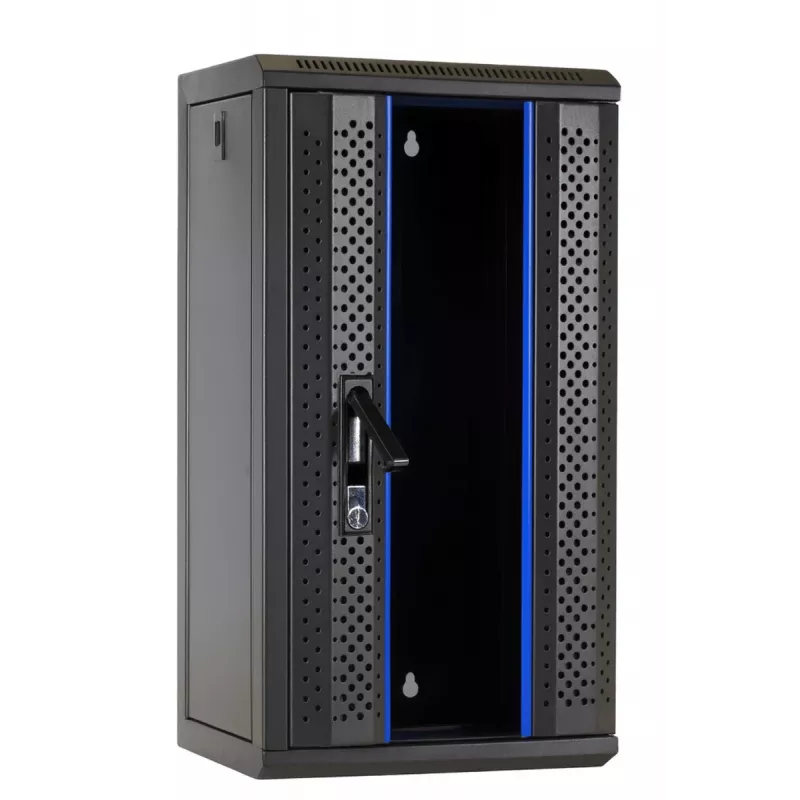

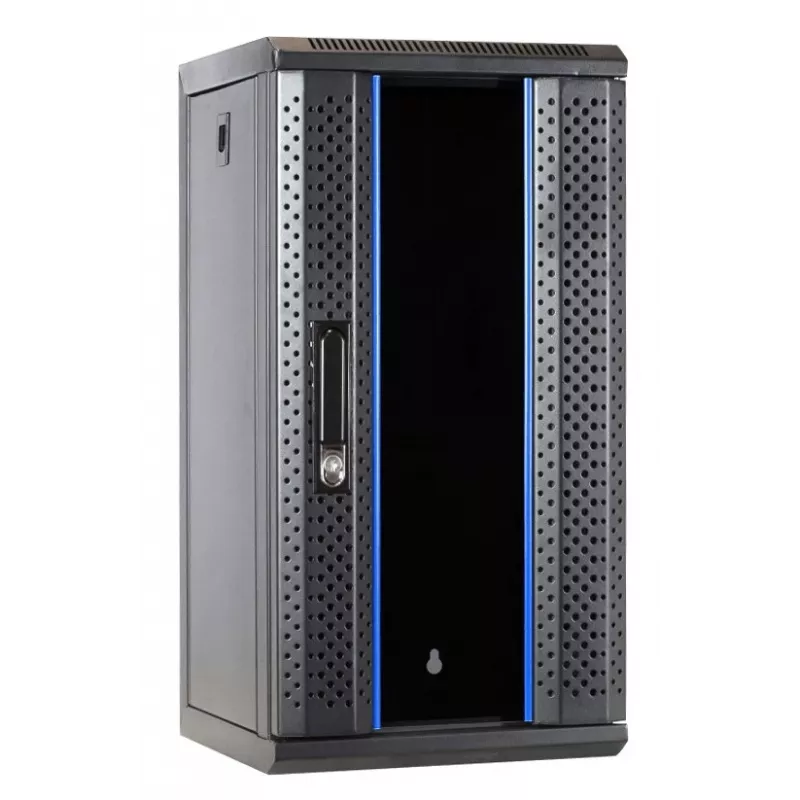

DSIT DS10-3312 caixa de servidor de parede 12U 10 polegadas com porta de vidro, 312x310x618 mm, preto

When space is tight but equipment protection is non-negotiable, the DSIT DS10-3312 delivers a 12U 10-inch rack enclosure that goes beyond open-frame racks. Its lockable glass front door and fully welded steel body keep your network gear visible yet secure, all within a compact 312 x 310 mm footprint. The 618 mm height accommodates a dozen rack units, making it ideal for small switches, patch panels, and edge devices that need a tidy, protected home.

Highlights

• 12U capacity in the 10-inch rack standard, perfect for compact switches, patch panels, and small servers.
• Single glass door with key lock keeps equipment visible yet secure; two keys included.
• Robust welded steel frame with powder-coated finish in black (RAL 9005) for durability and a clean look.
• Passive ventilation via perforated top and bottom panels, with knock-out cable entries for flexible wiring.
• Adjustable mounting rails allow precise depth positioning of installed devices.
• Wall-mount design saves floor space; all mounting hardware included.

In daily use

The DS10-3312 excels in environments where a full-size 19-inch rack would be overkill. Mount it in a network closet, under a desk, or in a workshop—the fixed side panels keep dust and accidental contact at bay, while the glass door lets you monitor LED indicators at a glance. The key lock deters tampering, and the included hardware ensures a straightforward installation. With IP20 protection and compliance to DIN 41494 and IEC 60297, it fits seamlessly into standard rack ecosystems.

Full specifications

• Rack standard: 10-inch
• Rack units: 12U
• External dimensions (W x D x H): 312 x 310 x 618 mm
• Material: Steel
• Colour: Black (RAL 9005)
• IP protection class: IP20
• Door type: Single glass door with key lock
• Side panels: Fixed
• Cable entry: Top and bottom (knock-out panels)

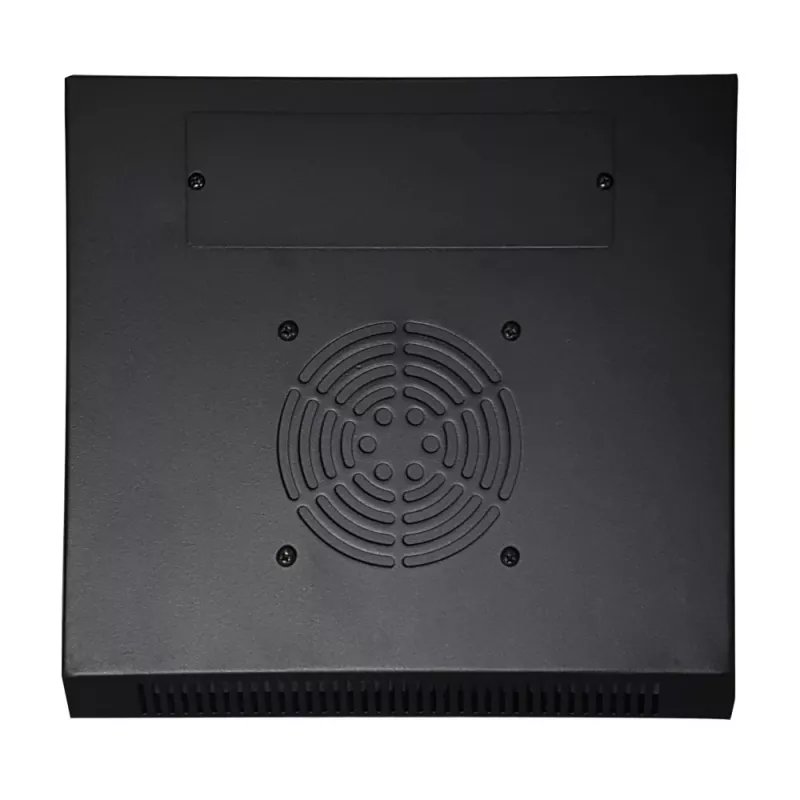

• Ventilation: Passive (perforated top/bottom)
• Mounting rails: Adjustable depth
• Construction: Welded frame
• Finish: Powder coated
• Compliance: DIN 41494, IEC 60297
• Included accessories: Mounting hardware, 2 keys

Final note

For compact, secure, and professional 10-inch rack installations, the DSIT DS10-3312 offers the ideal blend of visibility, protection, and space efficiency.
