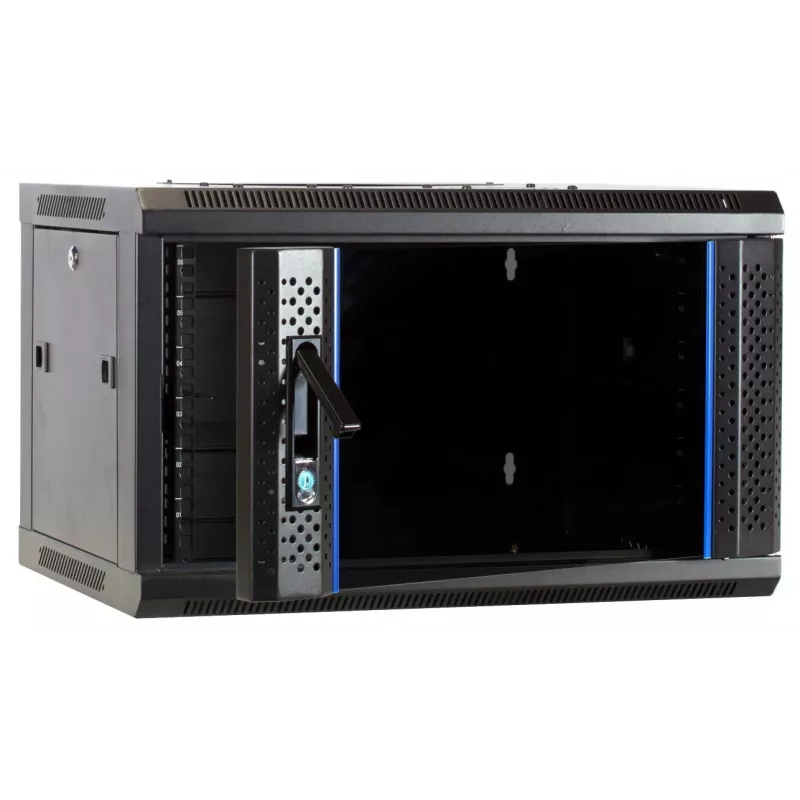

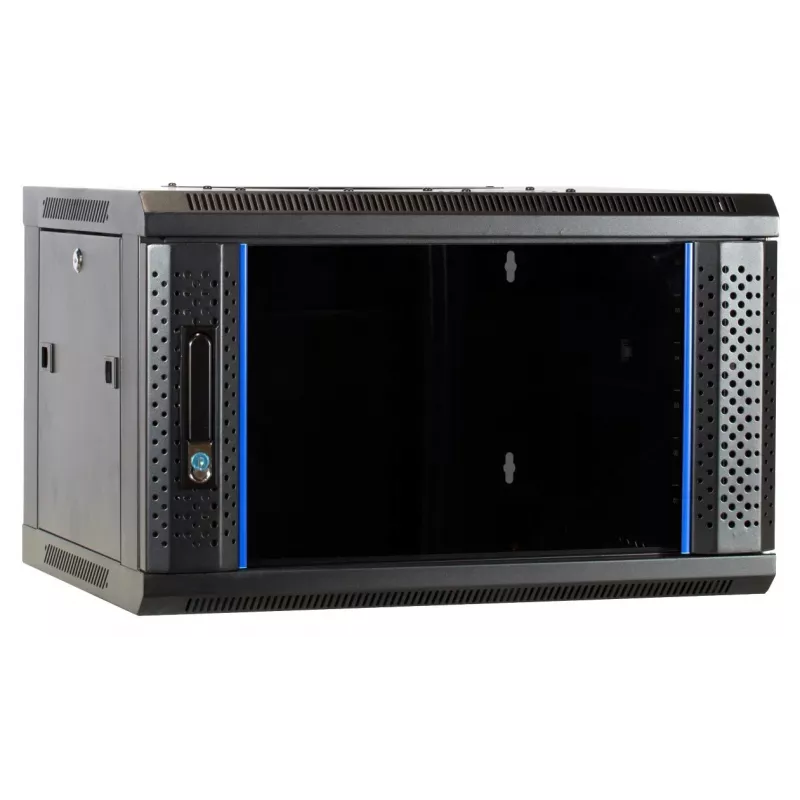

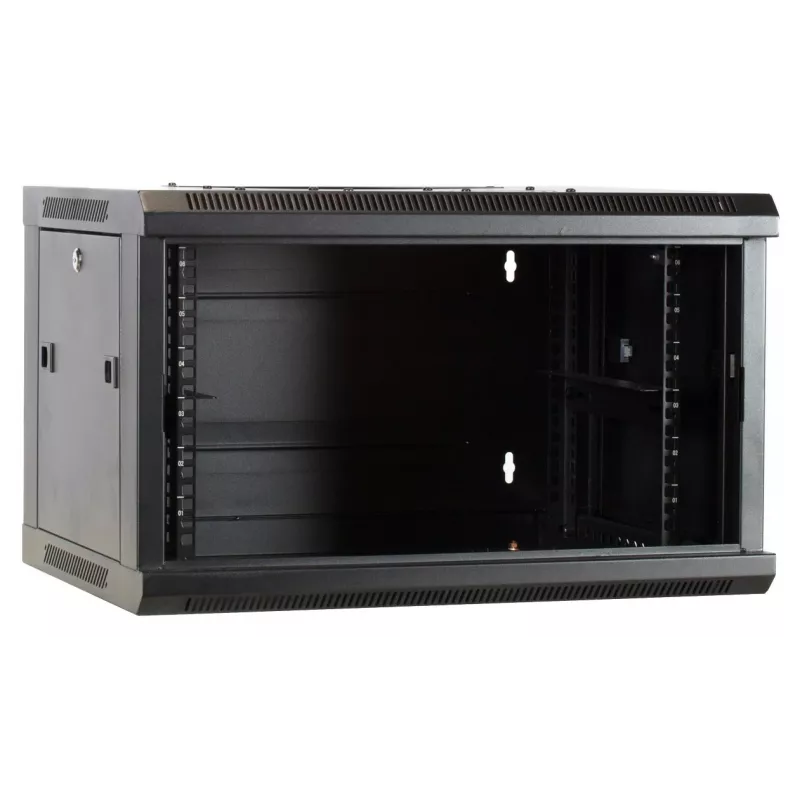

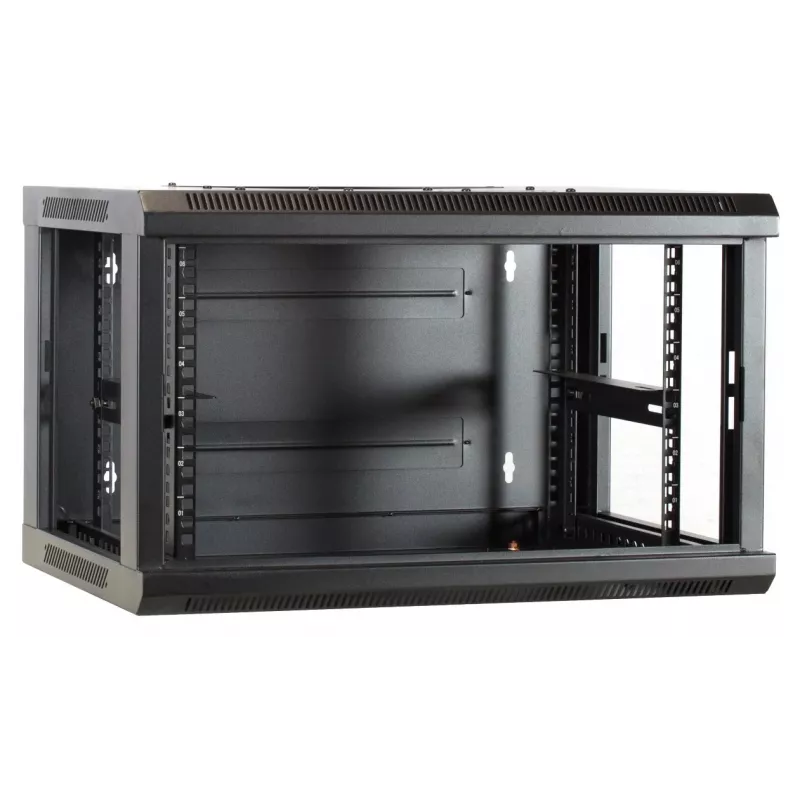

DSIT DS6404-F Caixa de Servidor de Parede 4U com Porta de Vidro, Não Montada, 600 x 450 mm

The DSIT DS6404-F stands apart from typical wall-mount enclosures by combining a sleek glass front door with a flat-pack design that significantly reduces shipping volume and cost. While many cabinets arrive fully welded and bulky, this 4U unit ships unassembled, allowing for easy transport to upper floors or tight spaces before quick on-site assembly. Its 600 mm width and 450 mm depth provide ample room for standard 19-inch networking and server equipment, while the black powder-coated steel construction ensures durability and a professional appearance in any IT environment.

Highlights

• 4U rack capacity for 19-inch equipment
• Wall-mount design with 60 kg load capacity
• Front glass door with key lock for security
• Removable, lockable side panels for easy access
• Top and bottom cable entry with brush strips
• Adjustable front and rear mounting rails
• Passive ventilation with fan cutouts on top
• Unassembled flat-pack for cost-effective shipping
• IP20 protection for indoor use
• Includes 2 keys and mounting material

In daily use

This cabinet is ideal for small offices, retail back rooms, or branch locations where floor space is limited but reliable equipment housing is essential. The glass door allows at-a-glance monitoring of status LEDs without compromising security, while the removable side panels make cable management and hardware swaps straightforward. The adjustable rails accommodate various equipment depths, and the brush strips keep dust out while allowing clean cable routing. With a 60 kg load capacity, it can safely hold switches, patch panels, and small servers.

Full specifications

• Rack height: 4U
• Rack width: 19 inch
• External dimensions (W x D x H): 600 x 450 x 230 mm
• Material: Cold rolled steel
• Colour: Black (RAL 9005)
• Finish: Powder coated
• Load capacity: 60 kg
• Protection class: IP20
• Front door: Single section glass door with key lock
• Side panels: Removable, lockable
• Cable entry: Top and bottom with brush strips
• Ventilation: Passive, fan cutouts on top
• Mounting rails: Adjustable depth, front and rear
• Assembly: Unassembled (flat-pack)
• Included accessories: 2 keys, mounting material
• Compliance: RoHS, CE

Final note

The DSIT DS6404-F delivers a perfect balance of security, accessibility, and value. Its unassembled design lowers logistics costs without compromising on build quality, making it a smart choice for IT professionals who need a dependable wall-mount solution that arrives ready to build and lasts for years.
