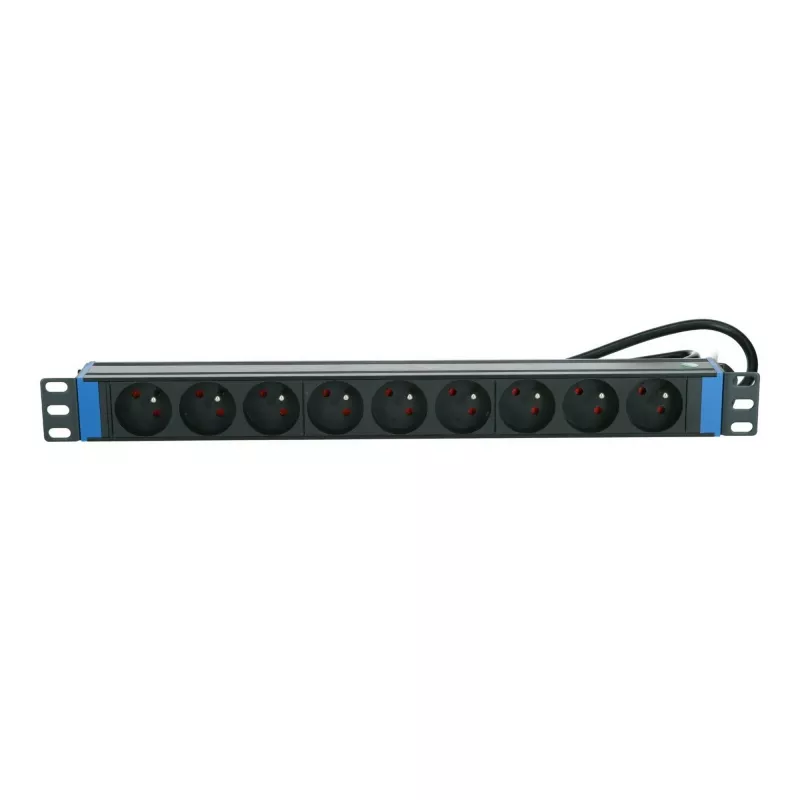

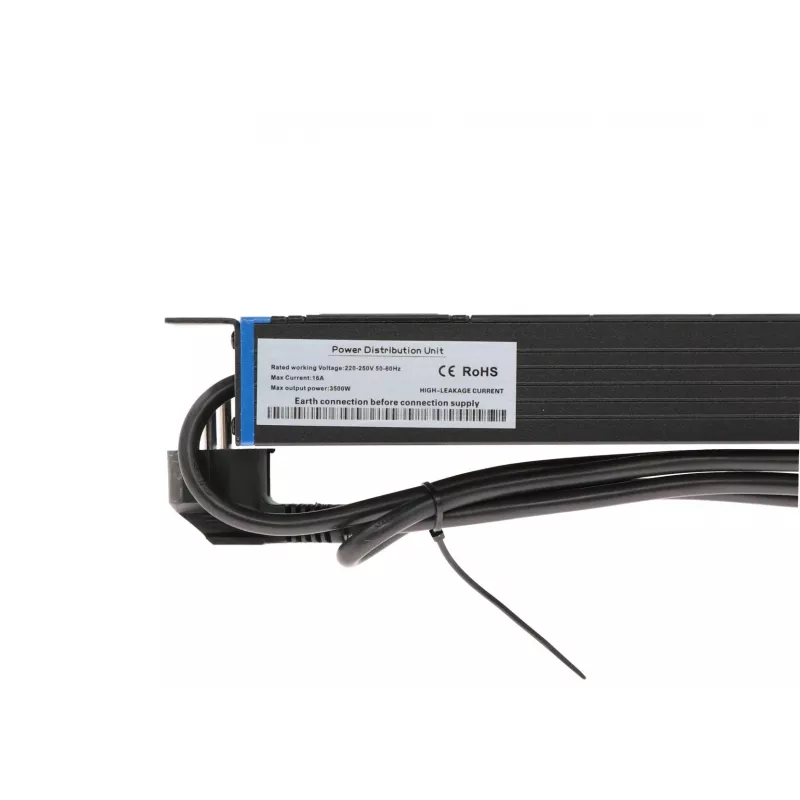

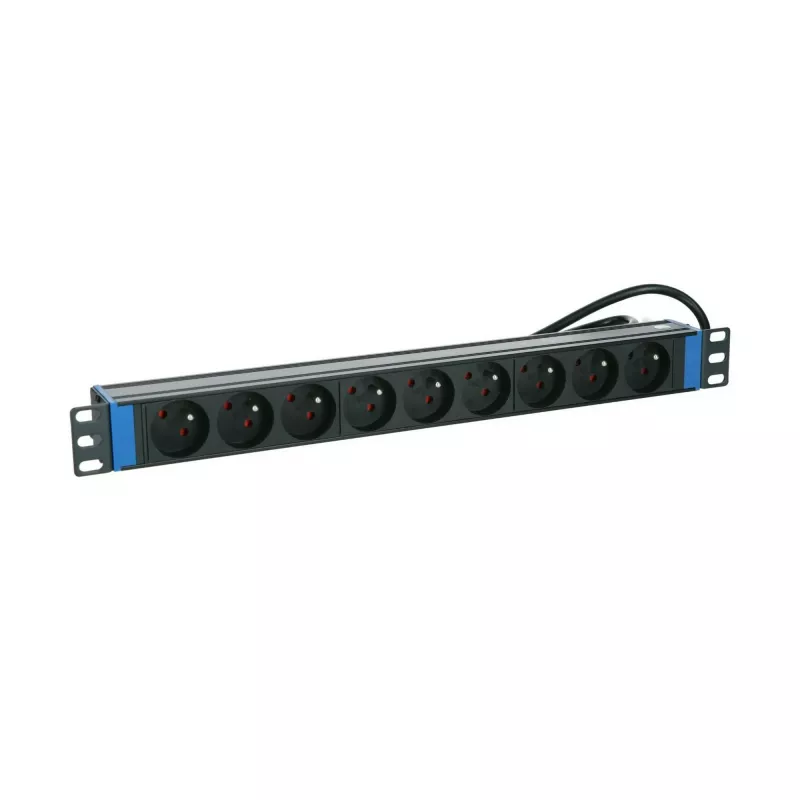

DSIT PDU de 19 polegadas com 9 tomadas e pino de terra (DS-9PDU-PE)

The DSIT DS-9PDU-PE is a 19-inch rack-mount power distribution unit that provides nine Schuko outlets in a 1U form factor, with an integrated earthing pin for enhanced grounding. Unlike basic power strips, it includes a built-in overload circuit breaker and a power-on LED, making it suitable for structured cabling environments where reliable power distribution is required.

Highlights

• 9 Schuko (Type F) outlets for connecting multiple devices
• 1U rack-mount design for efficient use of rack space
• Integrated earthing pin for secure grounding
• Overload circuit breaker protects connected equipment
• Power-on LED indicator for status at a glance
• 2 m input cable with Schuko plug

In daily use

Install the DS-9PDU-PE horizontally in a standard 19-inch rack, connect the input cable to a 230 V AC supply, and distribute power to up to nine devices. The circuit breaker prevents overloads, while the LED confirms power status. The anodized aluminum/steel housing ensures durability in professional environments.

Full specifications

• Form factor: 19-inch rack mount, 1U
• AC outlets quantity: 9
• Outlet type: Schuko (CEE 7/3, Type F)
• Input plug: Schuko (CEE 7/7, Type F)
• Cable length: 2 m
• Nominal voltage: 230 V AC
• Maximum current: 16 A
• Maximum power: 3680 W
• AC input frequency: 50/60 Hz
• Housing material: Anodized aluminum / steel
• Product colour: Black
• Protection features: Overload circuit breaker
• LED indicators: Power ON
• Operating temperature: -5°C to 45°C
• Operating relative humidity: 10% - 90% RH (non-condensing)

Final note

The DS-9PDU-PE combines essential power distribution with safety features in a compact 1U design, ideal for server racks and network cabinets.
