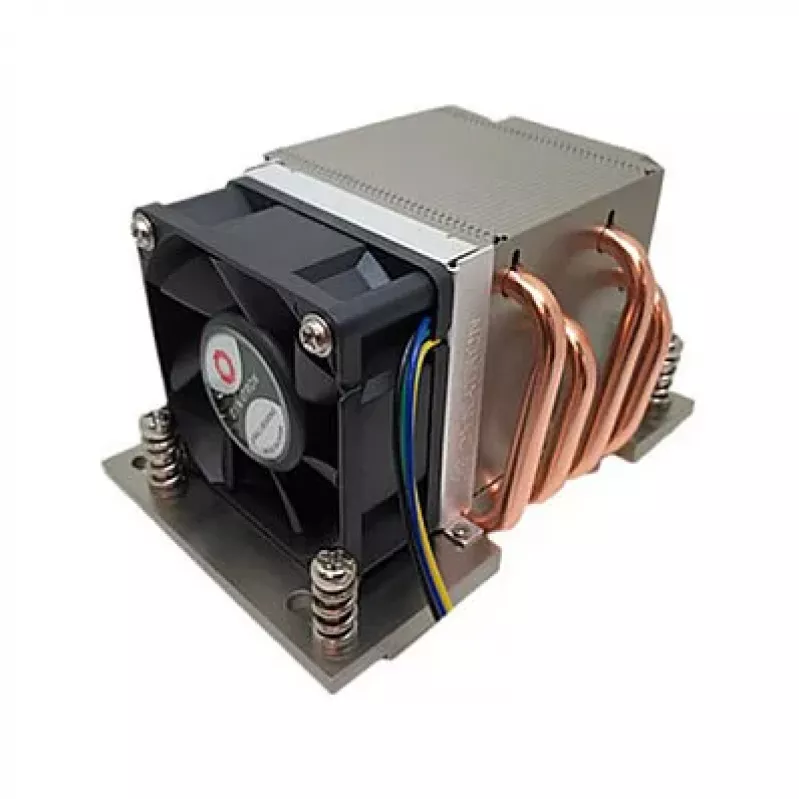

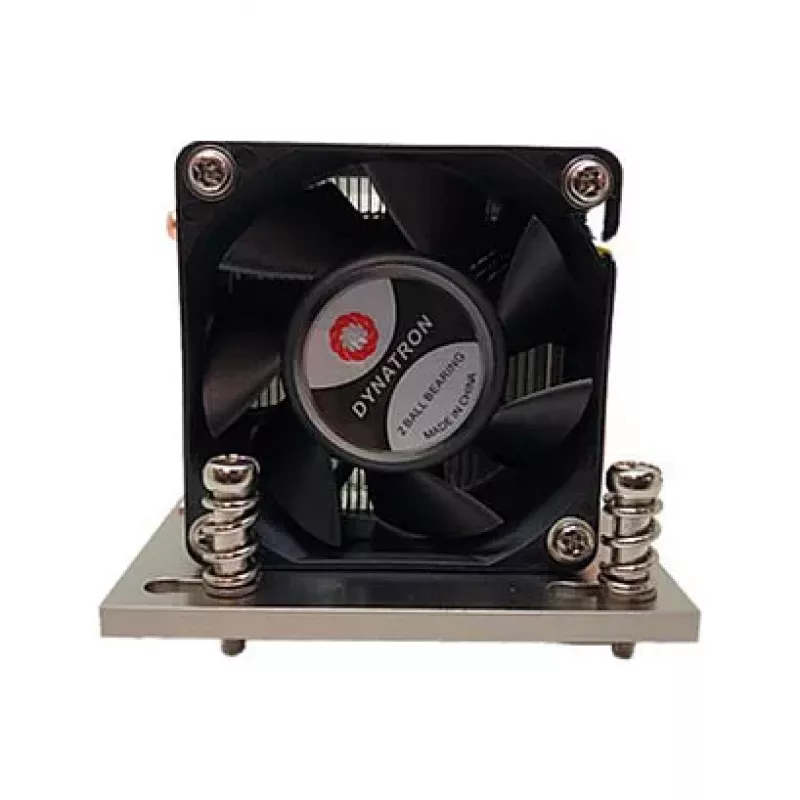

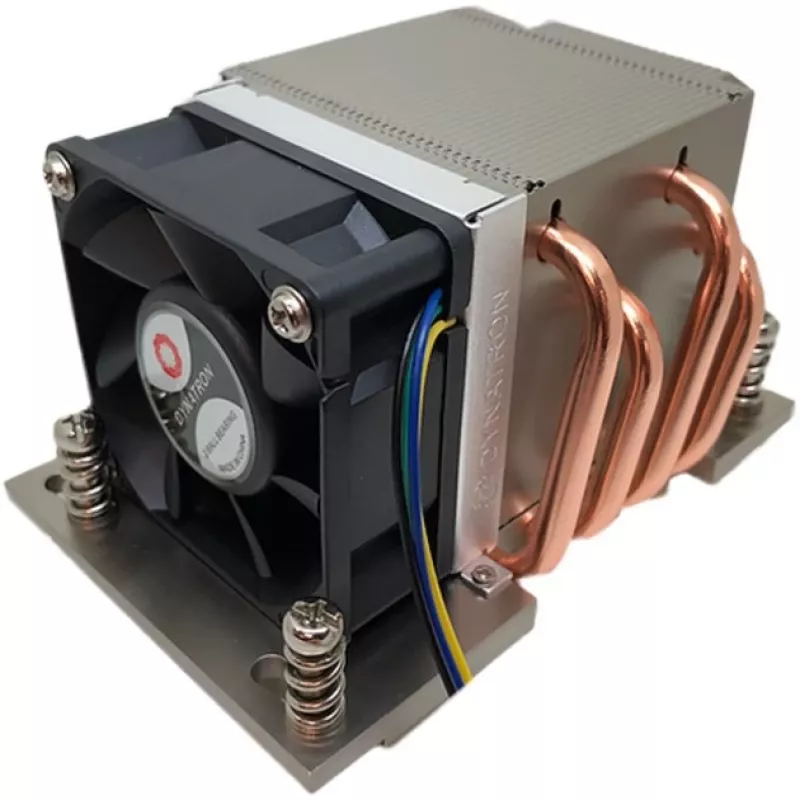

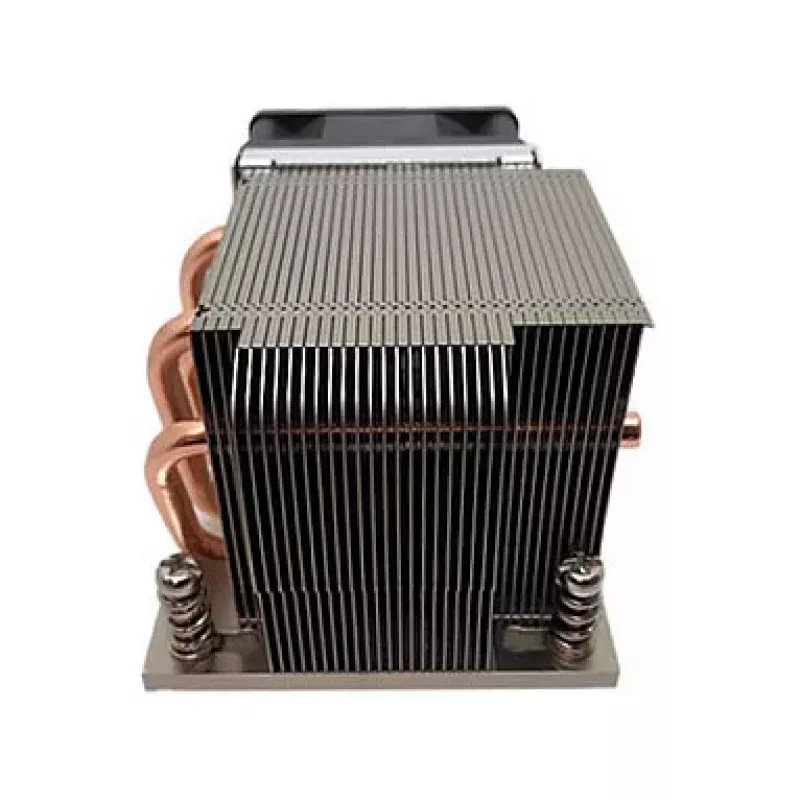

Dynatron A38 dissipador de CPU ativo 2U para socket SP3, sTRX4, TR4, sWRX8

The Dynatron A38 is a high-performance active CPU cooler designed for 2U rackmount servers and workstations. It supports AMD EPYC and Ryzen Threadripper processors on sockets SP3, sTRX4, TR4, and sWRX8, with a TDP capacity of up to 280W. Featuring a copper base and aluminum fin heatsink, this cooler ensures efficient heat dissipation. The 80mm dual ball bearing fan operates at speeds from 1500 to 5000 RPM, delivering airflow between 15.0 and 50.0 CFM while maintaining noise levels from 18.0 to 48.0 dBA. The 4-pin PWM connector allows for precise fan speed control. Thermal paste is pre-applied for easy installation.

Advantages

Reliable active cooling for high-TDP AMD processors in space-constrained 2U chassis. Dual ball bearing fan ensures long lifespan and stable performance. PWM support enables quiet operation at low loads and maximum cooling when needed.

Suitable for

• 2U rackmount servers
• Workstations with AMD EPYC or Threadripper CPUs
• High-performance computing environments

Key specifications

• Cooler Type: Active CPU Cooler
• Form Factor: 2U Rackmount
• Socket Compatibility: AMD SP3, sTRX4, TR4, sWRX8
• CPU Support: AMD EPYC, AMD Ryzen Threadripper
• TDP Support: Up to 280W
• Heatsink Material: Copper Base, Aluminum Fins
• Fan Dimensions: 80 x 80 x 25 mm
• Fan Speed: 1500 - 5000 RPM
• Airflow: 15.0 - 50.0 CFM
• Noise Level: 18.0 - 48.0 dBA
• Bearing Type: Dual Ball Bearing
• Connector: 4-pin PWM
• Rated Voltage: 12V DC
• Current Draw: 0.08 - 0.35 A
• Thermal Paste: Pre-applied

Recommendations

For optimal performance, ensure your chassis supports 2U cooler height and adequate airflow. The A38 is an ideal choice for dense server deployments requiring reliable CPU cooling.
