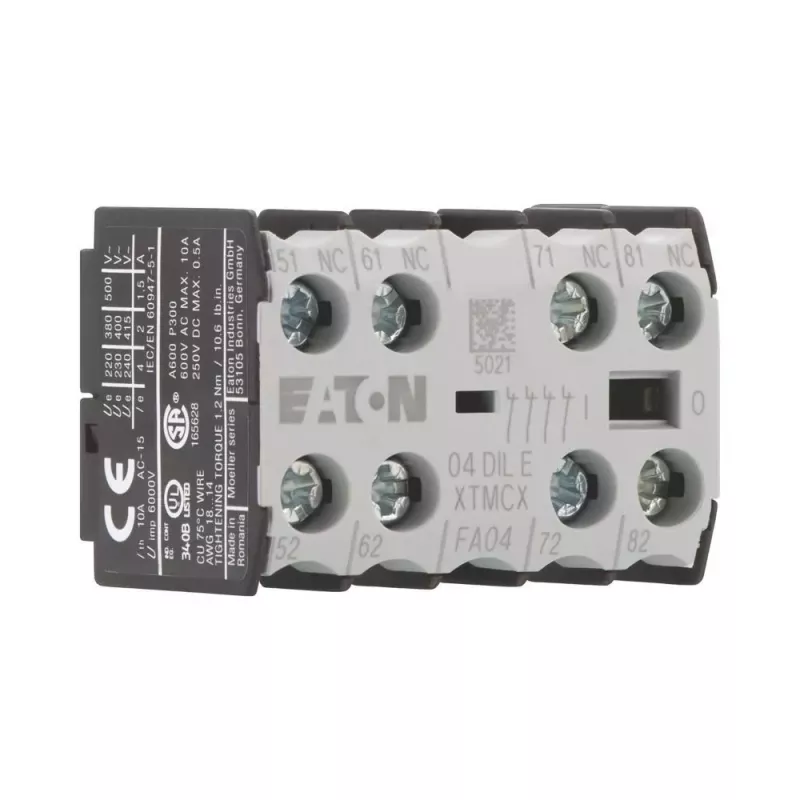

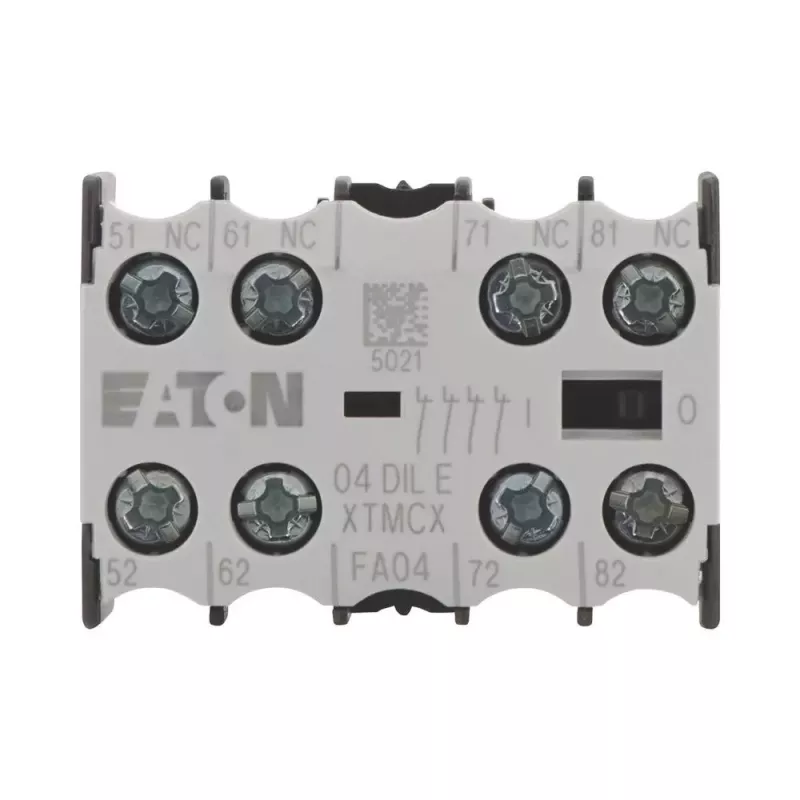

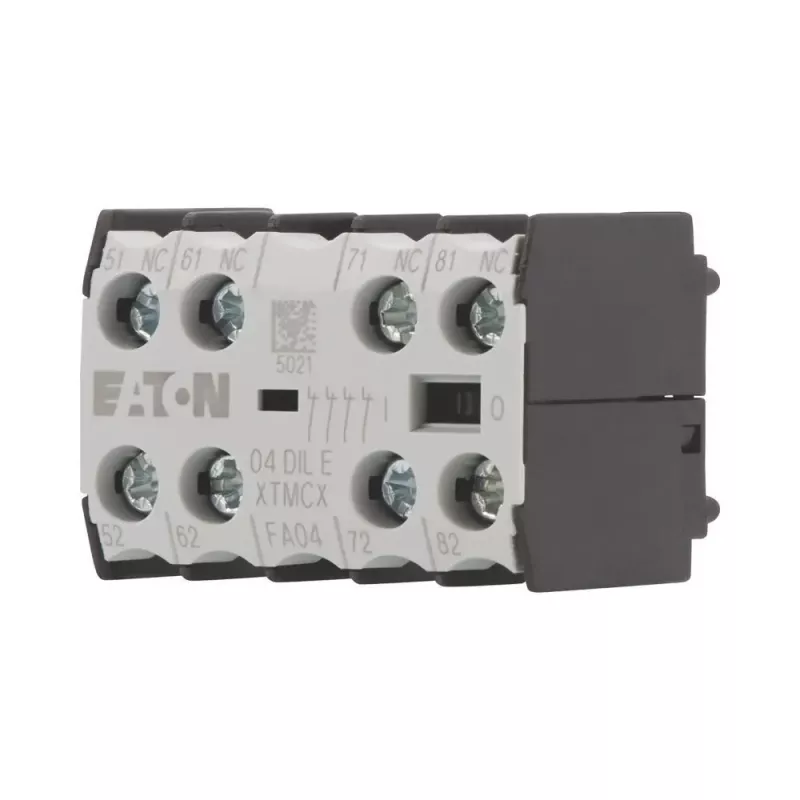

EATON 04DILE bloco de contactos auxiliares, 4 NC, com guiamento forçado, montagem frontal, para contactores DILM7-DILM38 010256

The EATON 04DILE auxiliary contact block provides four positively driven NC contacts for reliable control circuit feedback. Unlike standard auxiliary blocks, its forcibly guided contacts ensure a safe switching state even under fault conditions, making it suitable for safety-related applications when paired with compatible DILM contactors.

Highlights

• 4-pole, 4 NC contact configuration
• Positively driven (forcibly guided) contacts
• Front mounting on EATON DILM7 to DILM38 contactors
• Rated operational current up to 4 A at AC-15, 230 V
• Screw terminals for secure wiring

In daily use

The 04DILE mounts directly onto the front of EATON DILM7 to DILM38 contactors without tools, expanding the control circuit capabilities. Its compact design and IP20 protection suit industrial control panels. The positively driven contacts provide a reliable signal for monitoring the main contactor state.

Full specifications

• Contact configuration: 4 NC
• Contact type: Positively driven (forcibly guided)
• Number of poles: 4
• Mounting type: Front mounting
• Compatibility: EATON DILM7 to DILM38 contactors
• Rated operational current (AC-15, 230 V): 4 A
• Rated operational current (AC-15, 400 V): 3 A
• Rated operational current (DC-13, 24 V): 1 A
• Rated operational voltage (Ue): 690 V AC
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Degree of protection: IP20
• Terminal type: Screw terminals
• Standards: IEC/EN 60947-5-1
• Ambient operating temperature: -25 to +60 °C
• Product series: DIL E

Final note

The EATON 04DILE is a robust auxiliary contact block for expanding the functionality of DILM contactors in industrial applications.
