Eaton 174222 IKA-1/6-ST quadro de distribuição pequeno de superfície, 1 fila, 6 módulos, branco

With a rated insulation voltage of 400 V and a glow wire test temperature of 850 °C, this Eaton small distribution board is built for safe indoor power distribution in residential and commercial settings.

Overview

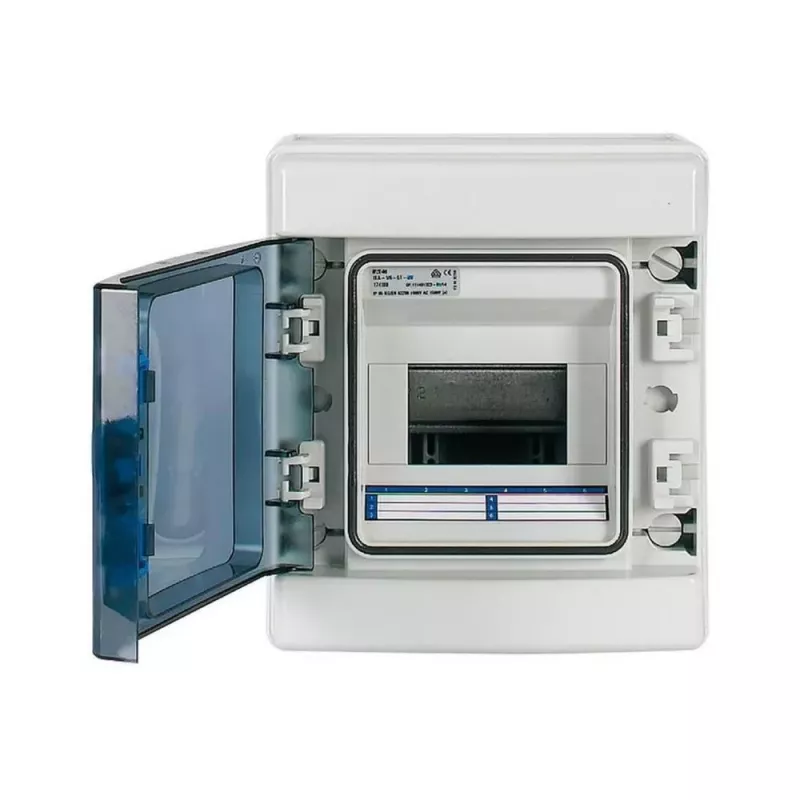

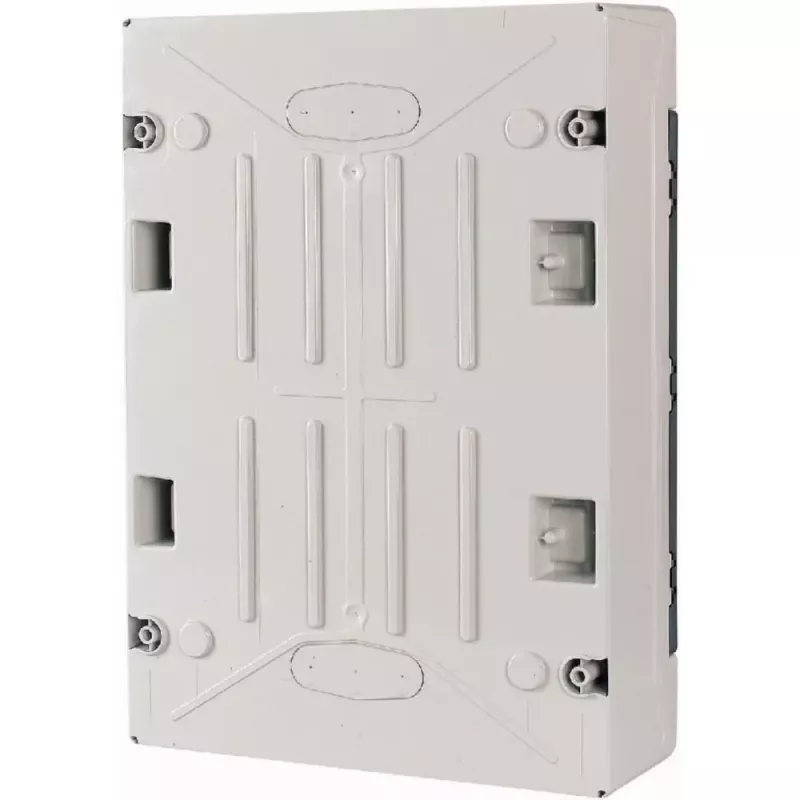

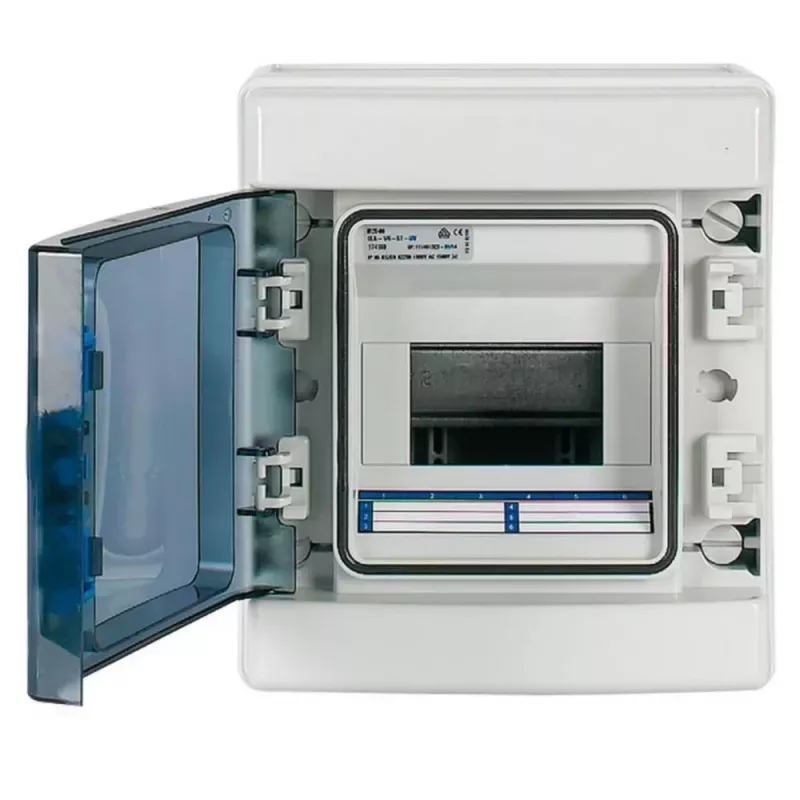

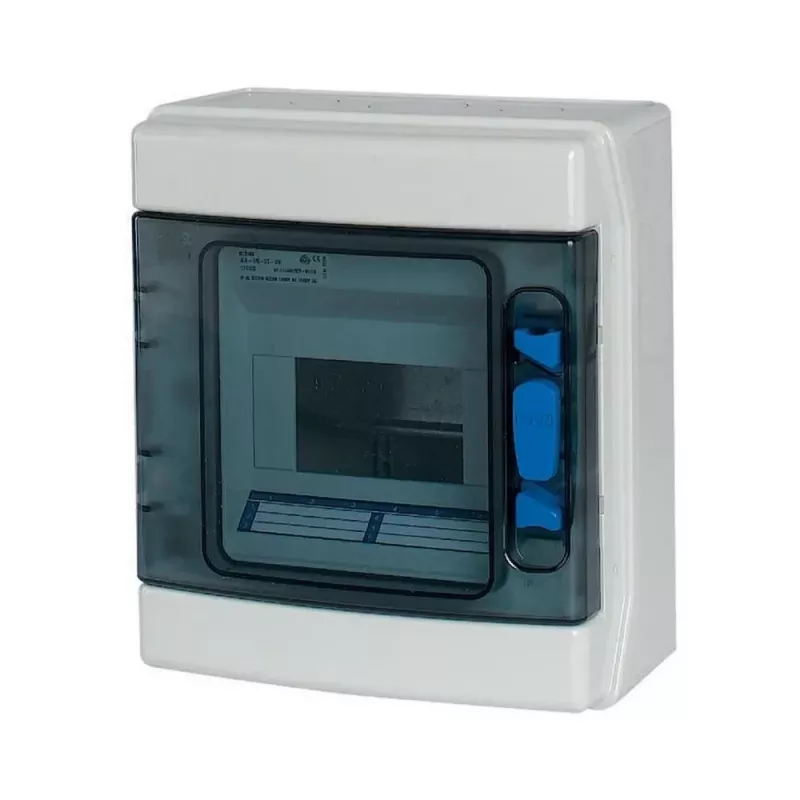

The Eaton 174222 IKA-1/6-ST is a surface-mounted small distribution board with one row and six module units (TE). It is made of white plastic (RAL 9010) with a transparent door, allowing quick visual inspection of installed devices. The enclosure is halogen-free and complies with EN 62208.

What stands out

• Surface-mounted design for easy installation on walls
• Transparent door provides visibility of internal components
• Halogen-free plastic construction for improved fire safety
• Integrated PE/N terminal blocks and DIN rail for convenient wiring
• Knockout cable entries on top, bottom, and rear for flexible routing

Technical details

• Number of rows: 1
• Number of module units (TE): 6
• Mounting type: Surface-mounted
• Enclosure material: Plastic
• Door type: Transparent
• IP protection rating: IP30
• Protection class: II (double insulated)
• Colour: White (RAL 9010)
• Glow wire test temperature: 850 °C
• Rated insulation voltage (Ui): 400 V
• Rated operational voltage (Ue): 230/400 V AC
• PE/N terminal blocks: Included (screw terminals)
• DIN rail: Included
• Cable entry: Top, bottom, rear knockouts
• Standards: EN 62208
• Application: Indoor
• Halogen-free: Yes

Our verdict

A reliable and practical choice for surface-mounted electrical distribution, offering clear visibility and robust construction for indoor use.
