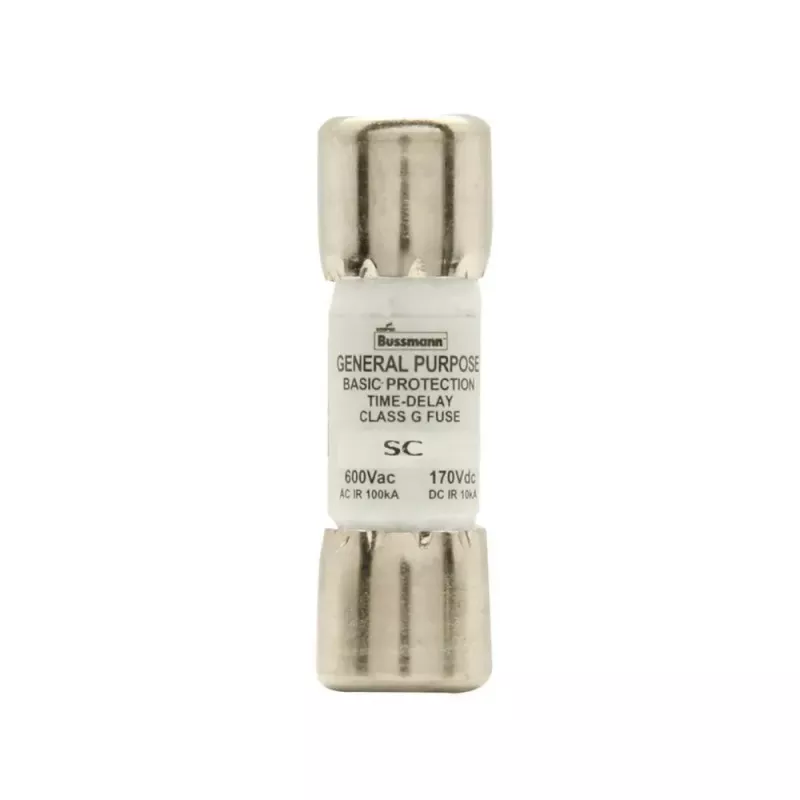

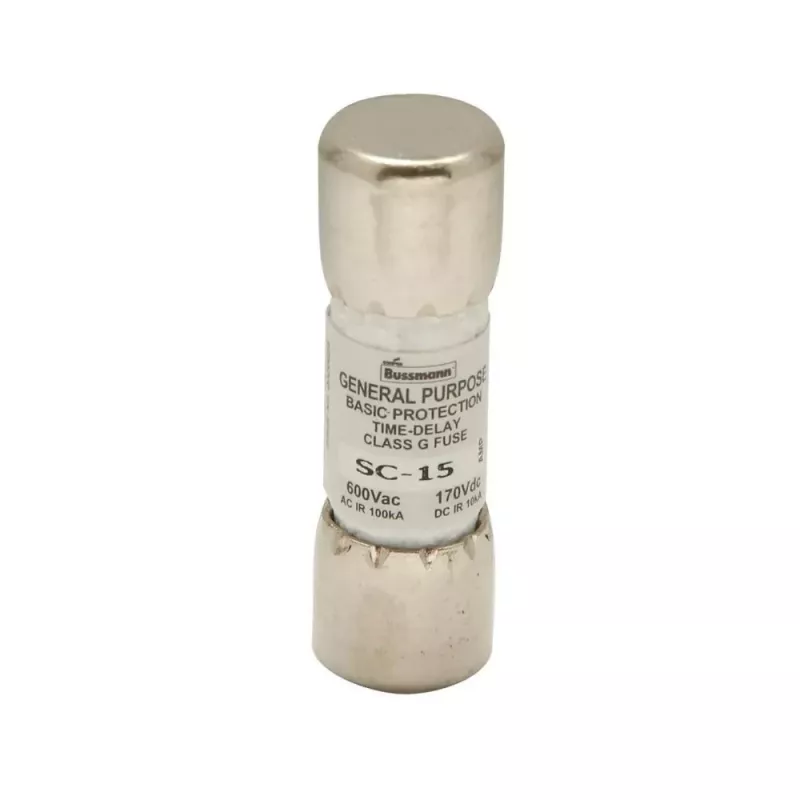

Eaton BK/SC-15 Bussmann SC fusível classe G 15 A 600 V AC 170 V DC fusível de cartucho rápido

The Eaton BK/SC-15 stands out as a fast-acting, current-limiting Class G fuse, offering precise protection for general-purpose circuits. Its melamine body and ferrule terminals ensure reliable performance in demanding applications.

Highlights

• 15 A rated current with 600 V AC and 170 V DC voltage ratings
• High interrupting rating: 100 kA AC and 10 kA DC
• Fast-acting response for sensitive equipment protection
• Compact 13/32" x 1-1/2" size fits standard fuse holders
• UL Listed and CSA Certified for safety compliance

In daily use

Designed for holder or clip mounting, this fuse is easy to install and replace. Its current-limiting capability reduces let-through energy, protecting downstream components from damage during fault conditions.

Full specifications

• Fuse Type: Cartridge Fuse
• Fuse Class: Class G
• Amperage Rating: 15 A
• AC Voltage Rating: 600 V AC
• DC Voltage Rating: 170 V DC
• Interrupting Rating (AC): 100 kA RMS Symmetrical
• Interrupting Rating (DC): 10 kA
• Response Time: Fast-Acting
• Current Limiting: Yes
• Body Material: Melamine
• Terminal Type: Ferrule
• Mounting Type: Holder/Clip
• Fuse Size: 13/32" x 1-1/2" (10.3 x 38.1 mm)
• Standards Met: UL Listed (E23559), CSA Certified (LR23559)
• Series: Bussmann SC
• Application: General Purpose Circuit Protection
• Number of Poles: 1
• Quantity per Pack: 1

Final note

With its robust construction and high interrupting ratings, the BK/SC-15 provides dependable circuit protection for a wide range of industrial and commercial applications.
