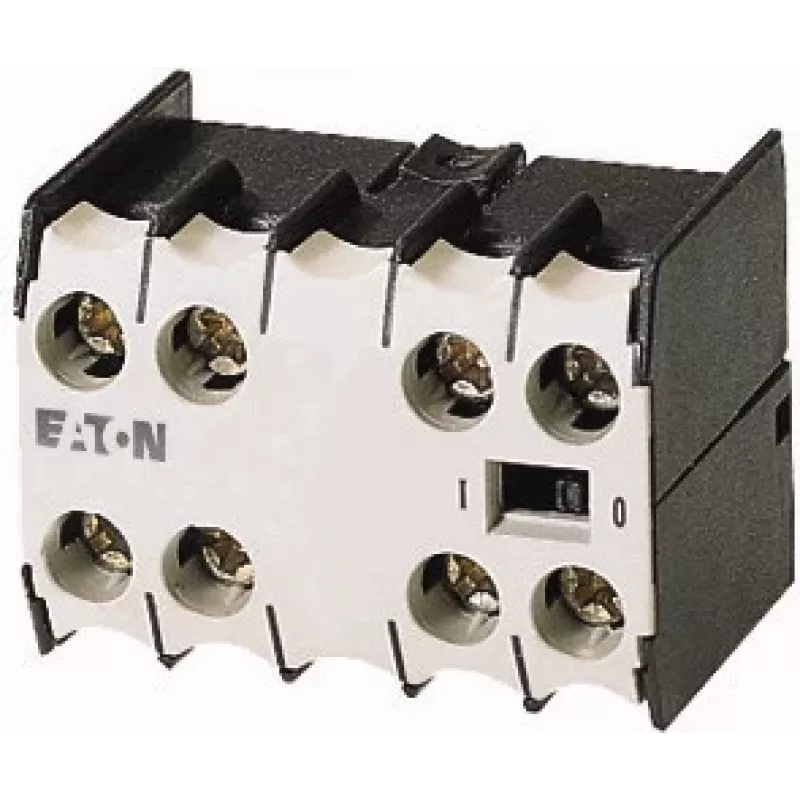

Eaton bloco de contactos auxiliares DILM 1NO+1NC montagem lateral 049823

This Eaton auxiliary contact block expands the control capabilities of DILM contactors with a compact side-mounted design. It provides one normally open and one normally closed contact, enabling reliable signal and control circuit integration without additional wiring complexity.

Highlights

• Side mounting for DILM7 to DILM32 contactors
• 1 NO + 1 NC contact configuration
• Screw terminals for secure connections
• Rated insulation voltage 690 V
• Operational current 4 A at AC-15 230 V

In daily use

The block attaches directly to the contactor, saving panel space and simplifying installation. Its screw terminals accept solid or stranded conductors from 0.75 to 2.5 mm², and the IP20 terminal protection suits standard industrial enclosures.

Full specifications

• Product type: Auxiliary contact block
• Mounting: Side mounting
• Contacts: 1 NO + 1 NC (total 2)
• Compatibility: Eaton DILM contactors (DILM7 to DILM32)
• Terminal type: Screw terminals
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated operational current (AC-15, 230 V): 4 A
• Rated operational current (DC-13, 220 V): 1 A
• Degree of protection (terminals): IP20
• Degree of protection (front): IP00
• Standards: IEC/EN 60947-5-1
• Ambient operating temperature: -25 to +60 °C
• Connection capacity (solid/stranded): 1 x (0.75 - 2.5) mm², 2 x (0.75 - 2.5) mm²
• Connection capacity (fine-strand with ferrule): 1 x (0.75 - 2.5) mm², 2 x (0.75 - 2.5) mm²
• Series: DILM

Final note

Designed for industrial control applications, this contact block ensures dependable auxiliary switching for Eaton DILM contactors.
