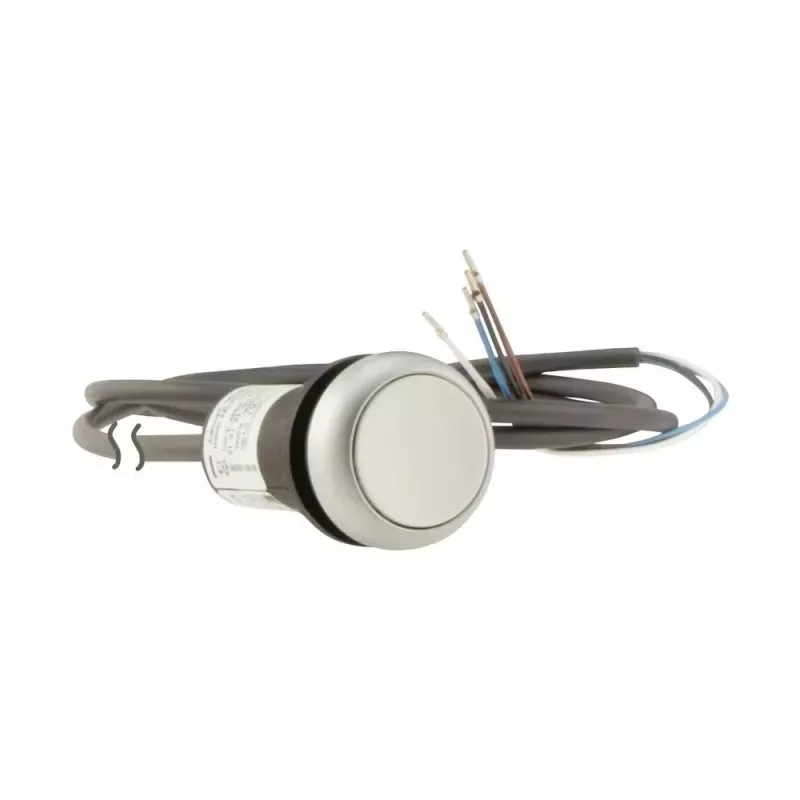

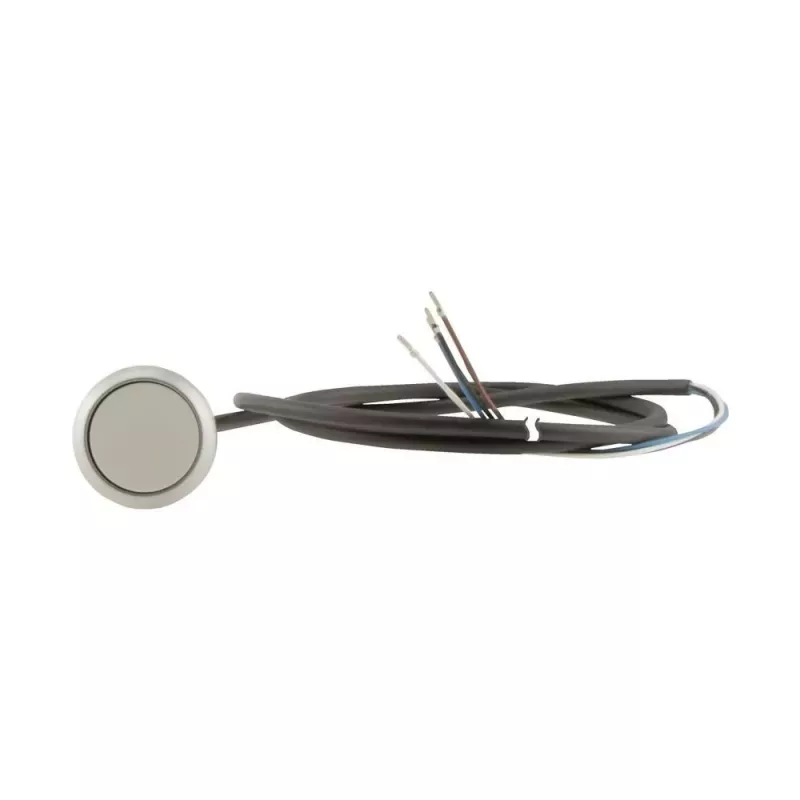

Eaton Botão de pressão plano C22 branco 1NO momentâneo C22-D-W-K10-P62 185673

The Eaton C22-D-W-K10-P62 flat pushbutton stands out with its robust modular design and high protection ratings, making it suitable for demanding industrial control applications. Its white actuator offers clear visual indication, while the momentary action ensures reliable switching.

Highlights

• Flat white pushbutton for 22.5 mm mounting diameter
• Momentary (spring-return) operation with 1 normally open contact
• Front protection IP66, IP67, IP69K for harsh environments
• Screw terminals accept solid or stranded conductors up to 2.5 mm²
• Mechanical life over 5 million operations

In daily use

This pushbutton is ideal for control panels, machinery, and automation systems where a reliable, easy-to-clean actuator is needed. The flat profile prevents accidental operation, and the white colour provides high contrast on dark panels. Installation is straightforward with standard 22.5 mm cutouts.

Full specifications

• Series: Eaton C22
• Product type: Pushbutton switch
• Actuator type: Flat pushbutton
• Actuator colour: White
• Operation type: Momentary (spring-return)
• Contact configuration: 1 normally open (1 N/O)
• Terminal type: Screw terminals
• Mounting diameter: 22.5 mm
• Front protection rating: IP66, IP67, IP69K
• Rear protection rating: IP20
• Rated operational voltage: Max. 500 V AC / 250 V DC
• Rated operational current: 6 A (AC-15, 230 V) / 3 A (DC-13, 24 V)
• Mechanical life: > 5,000,000 operations
• Illumination: Non-illuminated
• Housing material: High-grade plastic
• Operating temperature range: -25°C to +70°C
• Storage temperature range: -40°C to +80°C
• Standards compliance: IEC/EN 60947-5-1, VDE 0660
• Connection capacity: 1 x (0.5-2.5 mm²) or 2 x (0.5-1.5 mm²) solid/stranded
• Degree of pollution: 3

Final note

The Eaton C22-D-W-K10-P62 combines durability, ease of use, and compliance with international standards, making it a dependable choice for industrial control.
