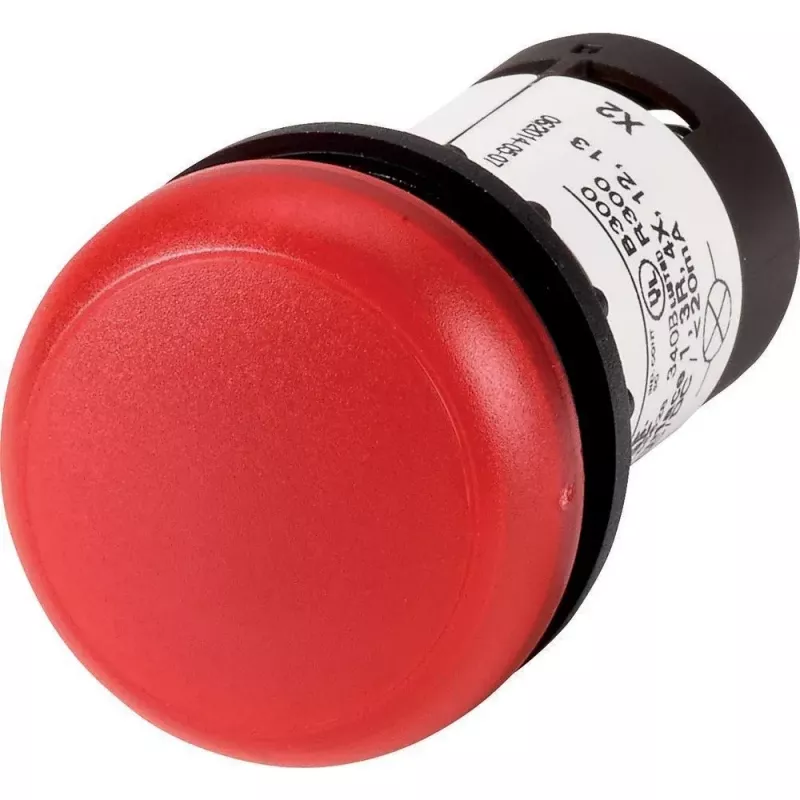

Eaton C22-L-R-24 Indicador LED plano vermelho 24 V AC/DC 121627

The Eaton C22-L-R-24 stands out with its flat red lens and versatile 24 V AC/DC operation, making it a reliable choice for control panels where space is tight and visibility is critical. Its LED light source ensures long service life and low energy consumption.

Highlights

• Flat red lens for a sleek, low-profile appearance
• Operates on both 24 V AC and 24 V DC
• LED illumination with lifespan over 100,000 hours
• Front protection ratings IP66, IP67, IP69K
• Mounting diameter 22.5 mm, screw terminal connection

In daily use

This indicator light is designed for industrial control and signalling applications. The flat lens reduces the risk of accidental damage and is easy to clean. With a wide operating temperature range of -25 to +70 °C, it performs reliably in demanding environments.

Full specifications

• Product type: Indicator light
• Series: Eaton C22
• Light source: LED
• Lens colour: Red
• Lens shape: Flat
• Operating voltage: 24 V AC/DC
• Mounting diameter: 22.5 mm
• Connection type: Screw terminals
• Front protection rating: IP66, IP67, IP69K
• Rear protection rating: IP20
• NEMA protection rating: NEMA 4X, 13
• Operating temperature range: -25 to +70 °C
• Storage temperature range: -40 to +80 °C
• Current consumption: 15 mA at 24 V
• LED lifespan: >100,000 hours
• Terminal capacity: 0.5 - 2.5 mm² (single wire)
• Housing material (front): Plastic
• Illumination type: Continuous
• Supply voltage type: AC/DC

Final note

For a dependable visual signal in harsh conditions, the Eaton C22-L-R-24 delivers consistent performance with minimal maintenance.
