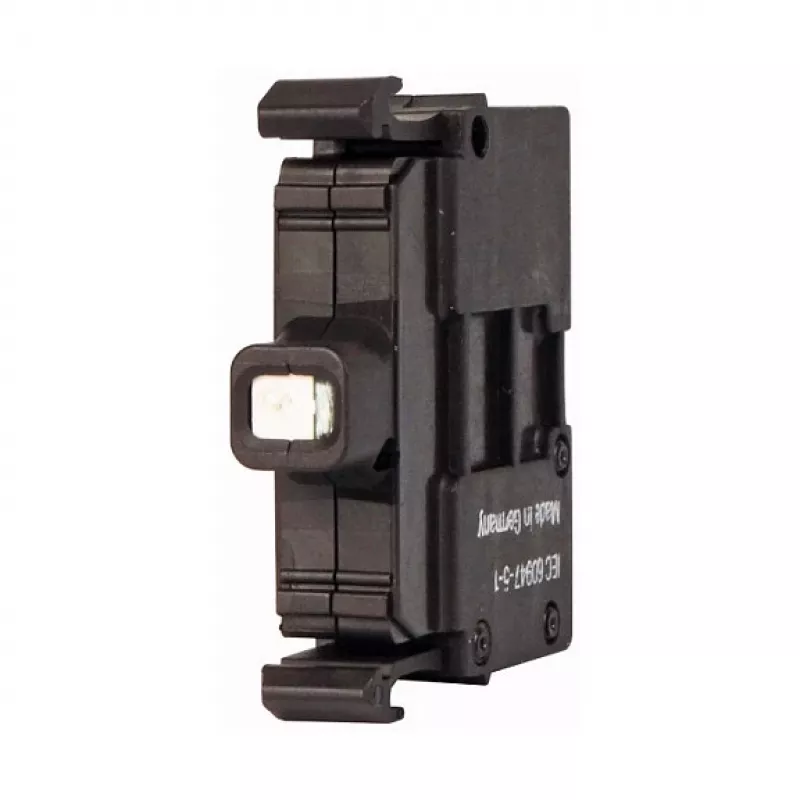

Eaton M22-LED230-R Elemento LED 85-264V AC Vermelho montagem frontal 216564

The Eaton M22-LED230-R LED element delivers over 100,000 hours of maintenance-free illumination, engineered for the demanding M22 RMQ-Titan range. Featuring a universal 85-264V AC input and a strikingly clear red signal, this front-mounted indicator is a dependable choice for control panels and industrial machinery.

Overview

This front-mounted LED light element is designed to fit the standard 22.5mm cutout of Eaton’s M22 series control devices. Its plug-in connection simplifies wiring and replacement, while the high-grade plastic housing provides robust protection. The LED element operates over an unusually wide voltage range, making it suitable for diverse installations across the globe.

What stands out

• Ultra-long LED lifespan: over 100,000 hours reduces maintenance and downtime.
• Wide operating voltage from 85 to 264 V AC ensures global compatibility.
• Excellent front protection: rated IP66, IP67, and IP69K for washdown and harsh environments.
• Compact and robust design with a 22.5mm mounting diameter.
• Plug-in connection for quick assembly in M22 holders.

Technical details

• Product type: LED element
• Colour: Red
• Operating voltage: 85–264 V AC
• Current consumption: 5–15 mA
• Mounting: Front mounting, panel cutout 22.5 mm
• Connection: Plug-in module (compatible with M22 holders)
• Protection rating: Front IP66, IP67, IP69K; terminals IP20
• Operating temperature: -25°C to +70°C; storage -40°C to +80°C
• Rated insulation voltage: 600 V; impulse withstand 6 kV
• Lifespan: >100,000 hours
• Approvals: CE, UL, CSA, CCC, EAC
• Housing material: High-grade plastic

Our verdict

For control panels that demand long-lasting, high-visibility indication, the Eaton M22-LED230-R is a top contender. Its wide voltage acceptance and exceptional IP ratings make it a versatile, safe, and economical choice for industrial and commercial applications.
