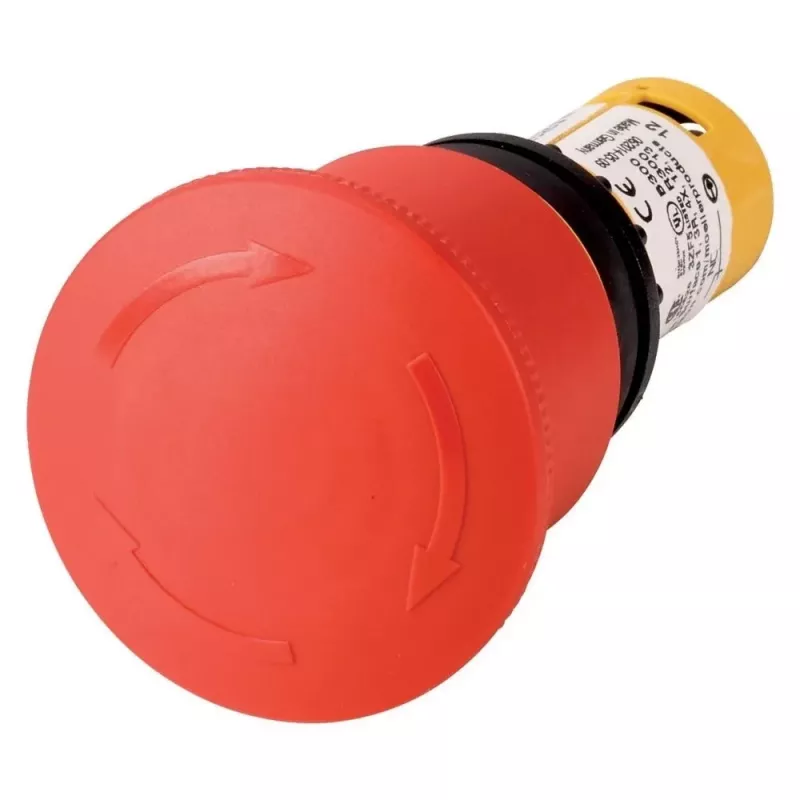

Eaton C22-PVT45P-K02 Botão de emergência, desbloqueio rotativo, 2 NF, cabeça de cogumelo 45 mm, IP66/IP67/IP69 121611

In industrial environments, a reliable emergency stop is critical for operator safety. The Eaton C22-PVT45P-K02 provides a robust, tamper-resistant emergency stop pushbutton with a twist-to-release mechanism, ensuring that machines can be halted instantly and only restarted intentionally.

Who is it for

This emergency stop is intended for machine builders, panel builders, and maintenance engineers who need a durable, high-visibility E-stop for control panels and machinery in demanding industrial settings.

Main features

• Twist-release actuator prevents accidental reset
• Large 45 mm red mushroom head on yellow collar for high visibility
• Two normally closed (NC) contacts for fail-safe operation
• Front protection rating IP66, IP67, IP69 – resistant to dust, water, and high-pressure cleaning
• Mounting diameter 22.5 mm, suitable for standard industrial panels

Specifications

• Product type: Emergency Stop Pushbutton
• Actuator type: Twist Release
• Mushroom head diameter: 45 mm
• Contact configuration: 2 Normally Closed (NC)
• Mounting diameter: 22.5 mm
• Ingress protection (front): IP66, IP67, IP69
• Connection type: Screw Terminals
• Rated insulation voltage (Ui): 500 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated operational current (AC-15, 230V): 6 A
• Rated operational current (DC-13, 24V): 3 A
• Operating temperature range: -25 to +70 °C
• Mechanical life: >100,000 operations
• Housing material: Plastic
• Actuator color: Red (Mushroom Head)
• Collar color: Yellow

Tips

For optimal safety, install the emergency stop in an easily accessible location and ensure that the yellow collar is clearly visible. Regular testing of the mechanical and electrical function is recommended as part of a preventive maintenance program.
