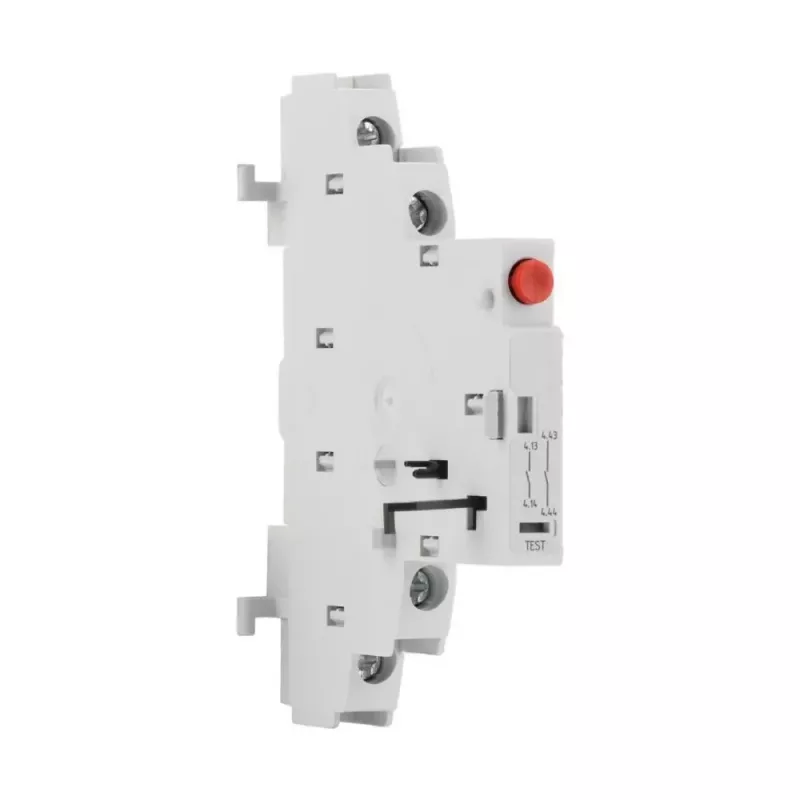

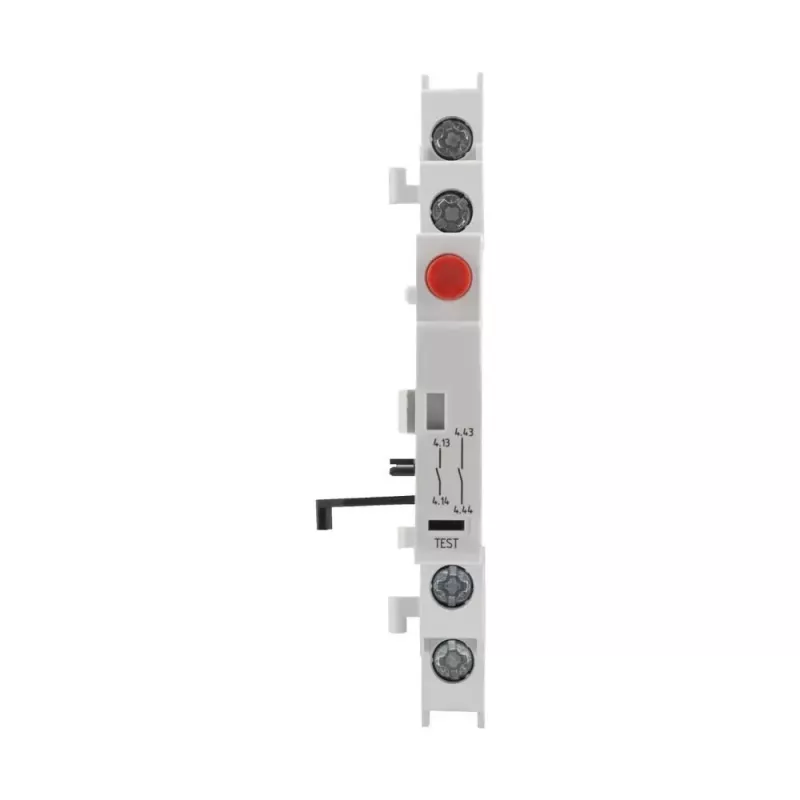

Eaton Contacto auxiliar de indicação de disparo AGM2-10-PKZ0, 2 NO, 240 V AC, 3,5 A, para PKZ0 072898

The Eaton AGM2-10-PKZ0 trip-indicating auxiliary contact signals when a PKZ0 motor protective circuit breaker has tripped. It provides two normally open (NO) contacts for remote status monitoring, enhancing operational safety and control.

Advantages

Clear trip indication reduces downtime by quickly identifying the tripped breaker. Side mounting on either left or right saves space and simplifies installation. Screw terminals ensure secure, maintenance-free connections.

Suitable for

• Monitoring Eaton PKZ0 motor protective circuit breakers
• Industrial control panels requiring remote trip signalling
• Motor protection circuits in machinery and automation

Key specifications

• Contact configuration: 2 NO
• Rated operational voltage: 240 V AC
• Rated operational current: 3.5 A at 240 V AC (AC-15)
• Rated operational voltage DC: 24 V DC
• Rated operational current DC: 1 A at 24 V DC (DC-13)
• Mounting: side mounting, left or right
• Terminal type: screw terminals
• Degree of protection: IP20
• Operating temperature: -25 to +55 °C

Recommendations

For reliable trip indication in motor protection circuits, pair this auxiliary contact with Eaton PKZ0 circuit breakers. Verify terminal torque during installation to maintain connection integrity.
