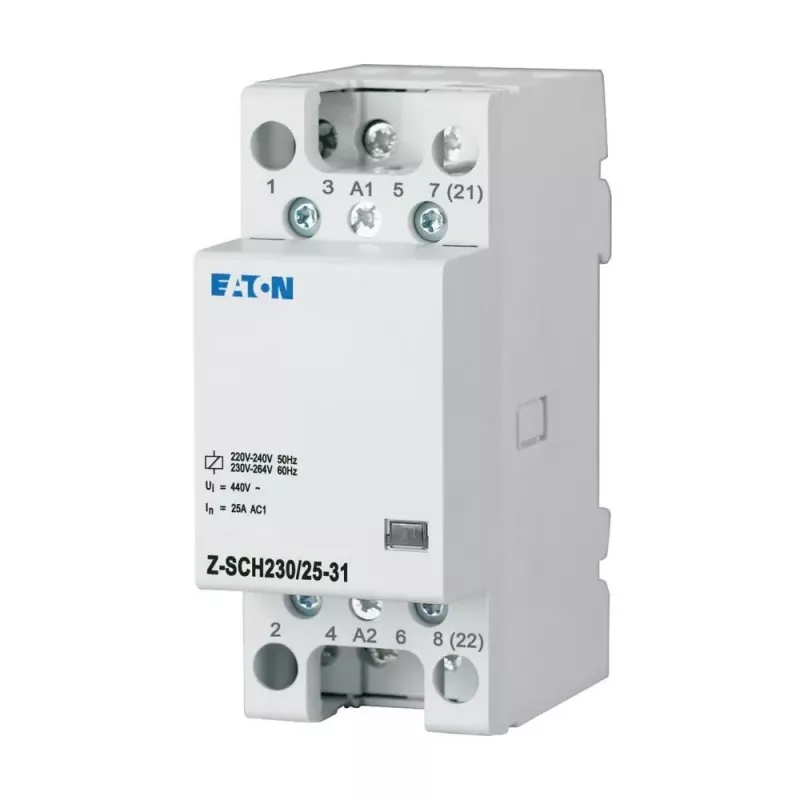

Eaton Contactor de instalação Z-SCH2 230V AC 25A 3NO+1NC calha DIN 248846

Installation contactor with 3 normally open main contacts and 1 normally closed auxiliary contact, rated for 25 A at 230 V AC. The Z-SCH2 switches lighting and heating loads directly from a 230 V AC control signal and mounts on a 35 mm DIN rail in a 2-module width.

Advantages

Compact 2 TE housing saves space in distribution boards. Screw terminals provide secure, maintenance-free connections. The contactor operates quietly with low holding power consumption of 2.8 VA, reducing energy loss in continuous duty.

Suitable for

• Switching lighting circuits in residential and commercial buildings
• Controlling electric heating and ventilation loads up to 25 A
• Use in distribution boards with DIN rail mounting

Key specifications

• Rated operational current (AC-1): 25 A
• Coil voltage: 230 V AC, 50/60 Hz
• Contact configuration: 3 NO + 1 NC
• Modular width: 2 TE (35 mm)
• Mechanical durability: 1,000,000 operations
• Electrical durability (AC-1): 100,000 operations

Recommendations

For reliable switching of lighting and heating loads in modular installations, the Z-SCH2 offers a proven solution with a compact footprint and long service life.
