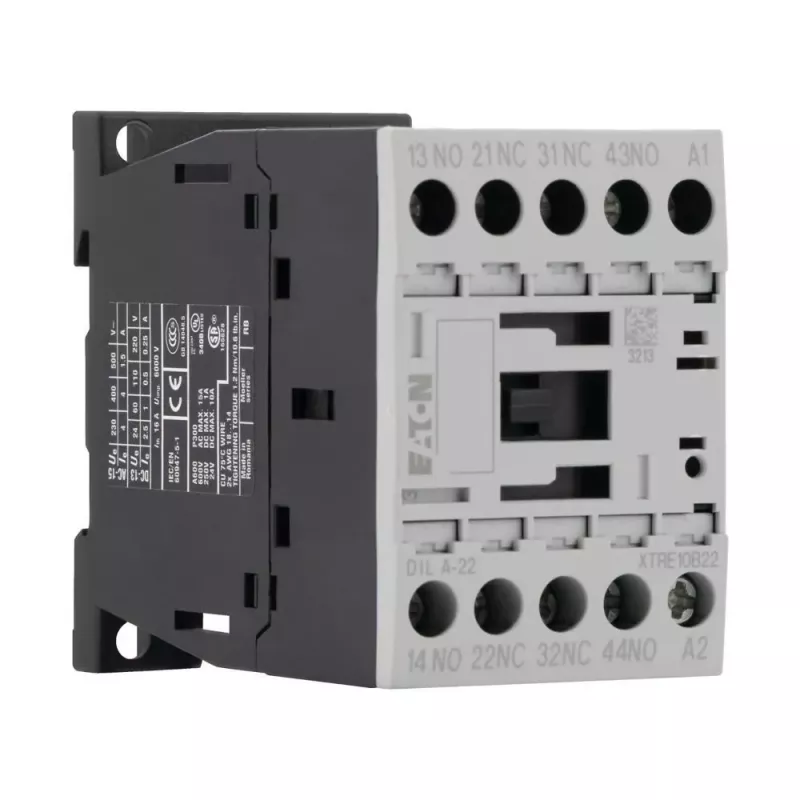

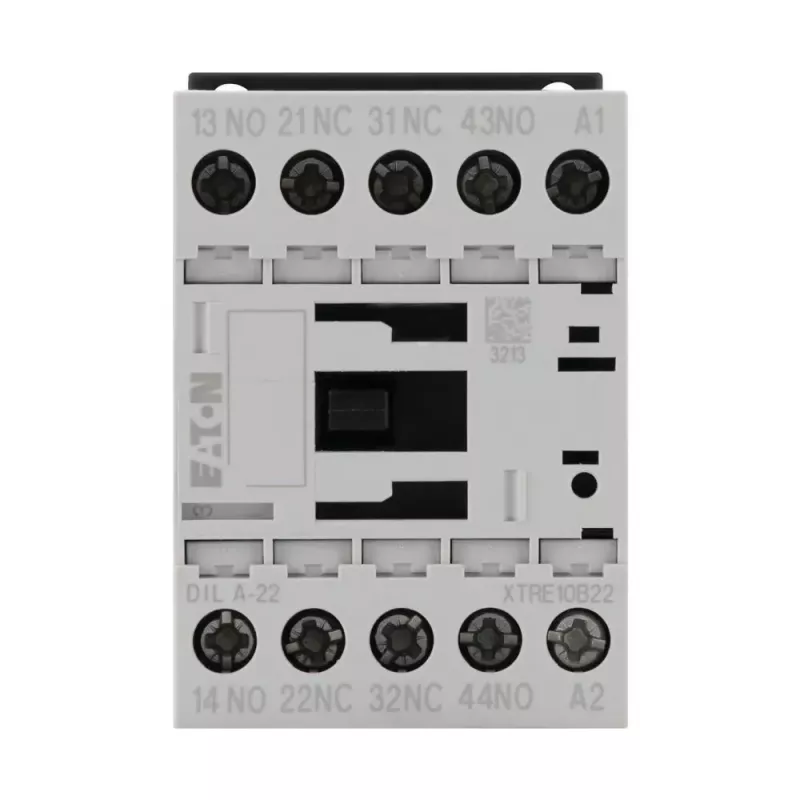

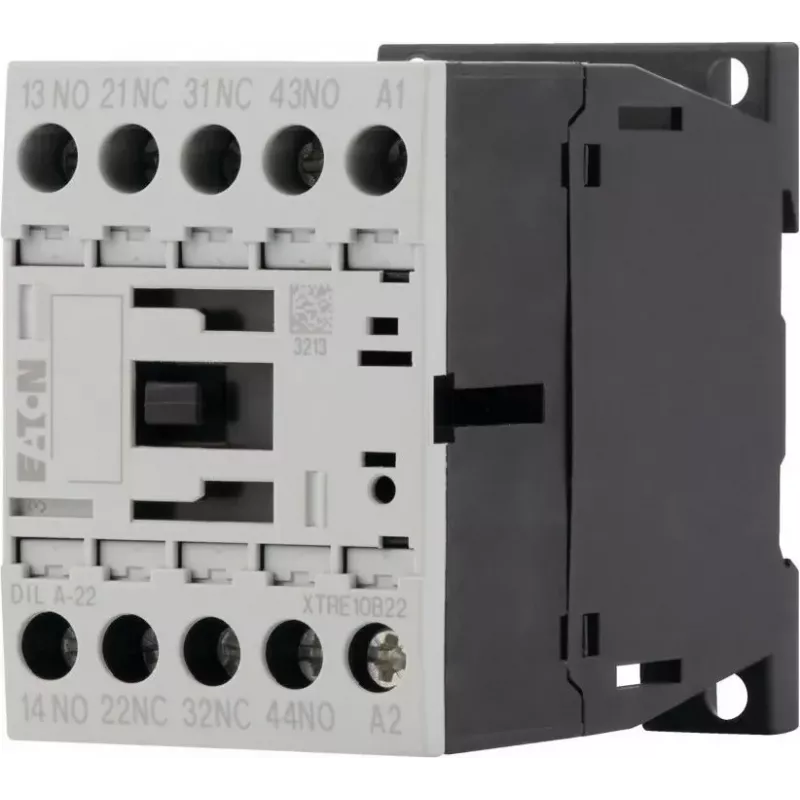

EATON DILA-22 relé contactor, tetrapolar, 2NO+2NC, bobina 230V AC 50Hz / 240V AC 60Hz, contactos de ação forçada 276399

With positively guided contacts ensuring reliable feedback in safety circuits, the EATON DILA-22 contactor relay delivers a 4 A AC-15 rating at 230 V and 3 A at 400 V, making it a robust choice for control applications.

Overview

The EATON DILA-22 is a 4-pole contactor relay from the DIL A series, featuring 2 normally open and 2 normally closed contacts. Its coil operates at 230 V AC 50 Hz or 240 V AC 60 Hz, and the positively guided (mechanically linked) contacts provide a reliable signal for monitoring the relay state in safety-related circuits. Designed for DIN rail or screw mounting, it uses screw terminals for secure wiring.

What stands out

• Positively guided contacts for safety applications
• 4-pole configuration: 2 NO + 2 NC
• High electrical life: over 1.5 million operations (AC-15)
• Wide operating temperature range: -25 to +60 °C
• Compact design with IP20 protection

Technical details

• Rated operational current (AC-15): 4 A at 230 V, 3 A at 400 V
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Mechanical life: over 10 million operations
• Mounting: DIN rail or screw mounting
• Terminals: screw terminals
• Standards: IEC/EN 60947

Our verdict

A dependable contactor relay for industrial control and safety circuits, offering positively guided contacts and solid performance in a compact package.
