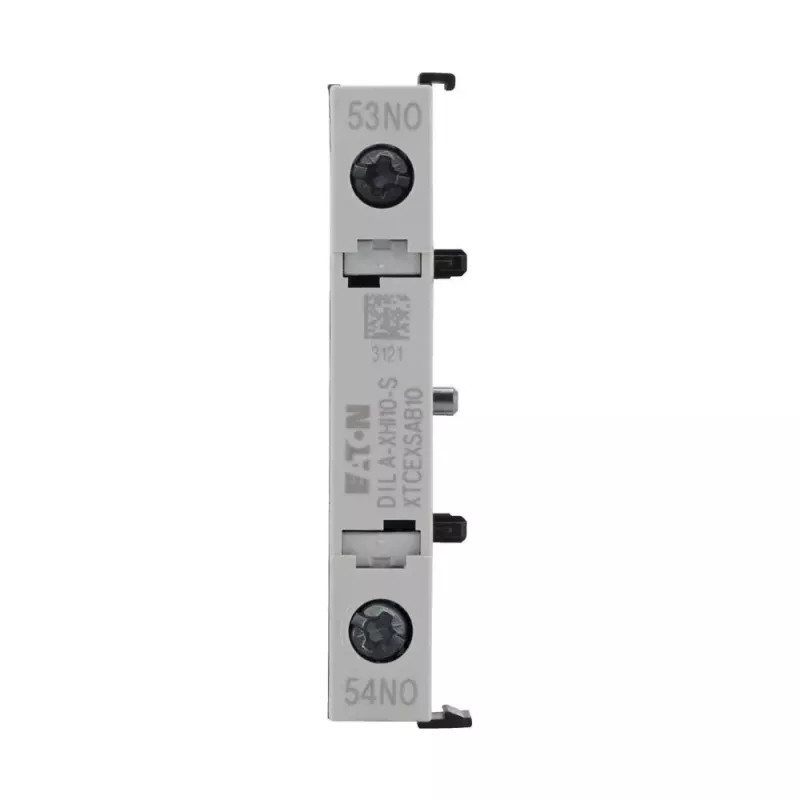

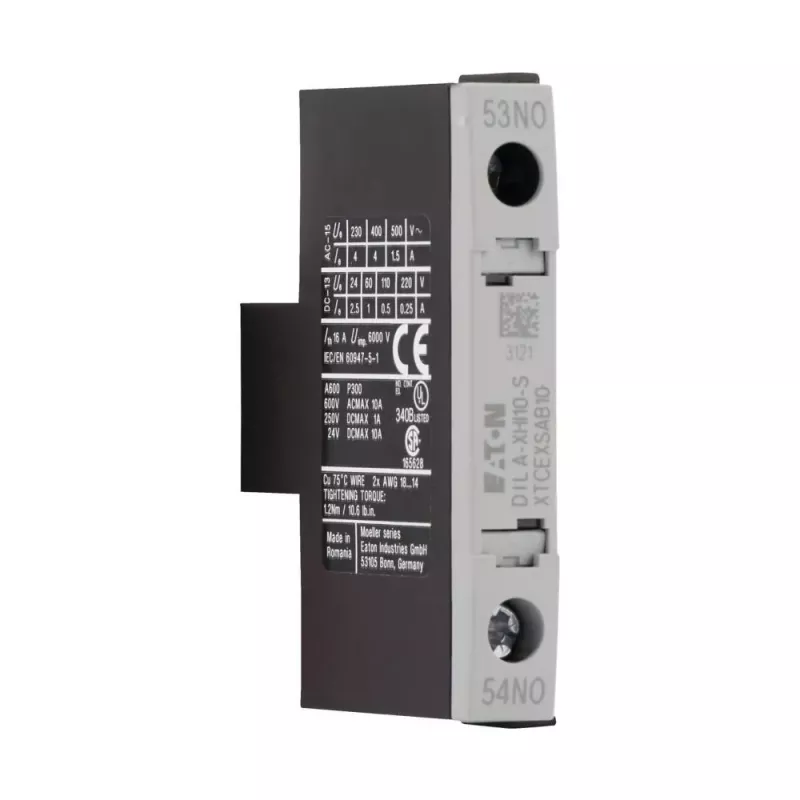

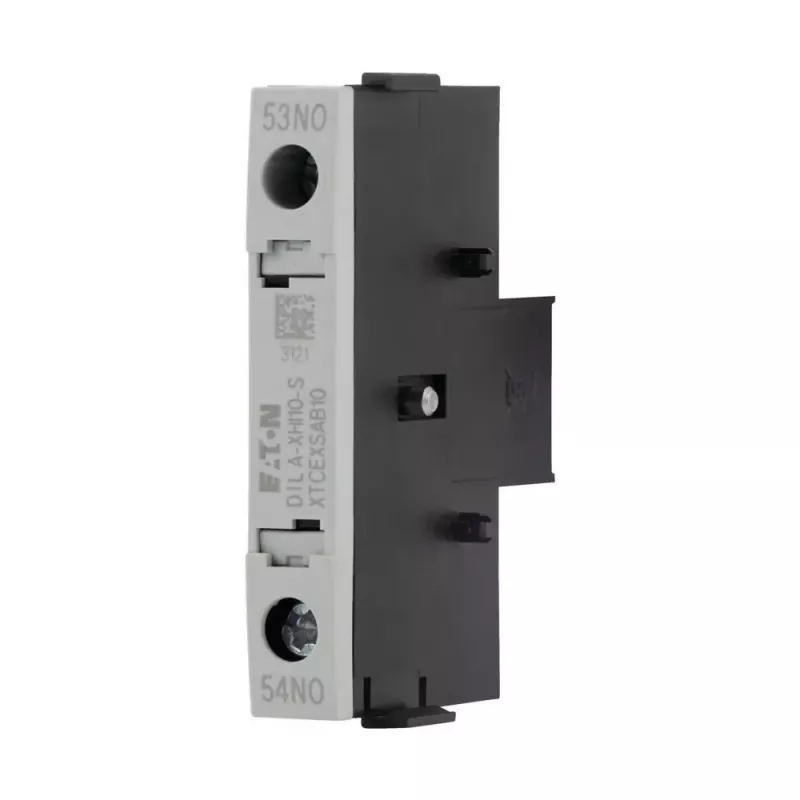

Eaton DILA-XHI10-S bloco de contactos auxiliares, 1 NO, montagem frontal, para contactores DILM7-DILM38 115948

When a contactor alone cannot provide enough auxiliary contacts for control and signaling, the Eaton DILA-XHI10-S auxiliary contact block adds one normally open (NO) contact to your setup. It mounts directly onto the front of Eaton DILM7 to DILM38 contactors, expanding your control circuit capabilities without extra wiring complexity.

Who is it for

This auxiliary contact block is for panel builders, machine OEMs, and maintenance technicians who need additional switching contacts for interlocking, status indication, or control logic in industrial motor control applications.

Main features

• 1 normally open (NO) contact
• Front mounting for quick installation
• Compatible with Eaton DILM7 to DILM38 contactors
• Screw terminals for secure wiring
• Rated insulation voltage 690 V
• Rated impulse withstand voltage 6 kV
• Operating temperature range -25 to +60 °C

Specifications

• Product type: Auxiliary contact block
• Contact configuration: 1 NO
• Mounting type: Front mounting
• Compatibility: DILM7 to DILM38 contactors
• Terminal type: Screw terminals
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated operational current AC-15 at 230 V: 4 A
• Rated operational current AC-15 at 400 V: 3 A
• Rated operational current DC-13 at 24 V: 1 A
• Rated operational current DC-13 at 110 V: 0.5 A
• Degree of protection: IP20 (terminals)
• Operating temperature range: -25 to +60 °C
• Connection cross-section solid: 1 x 0.75 - 2.5 mm²
• Connection cross-section stranded: 1 x 0.75 - 2.5 mm²
• Connection cross-section fine-stranded with ferrule: 1 x 0.75 - 1.5 mm²

Tips

Ensure the contactor is de-energized before mounting the auxiliary contact block. The front mounting design allows tool-free snapping onto compatible Eaton contactors.
