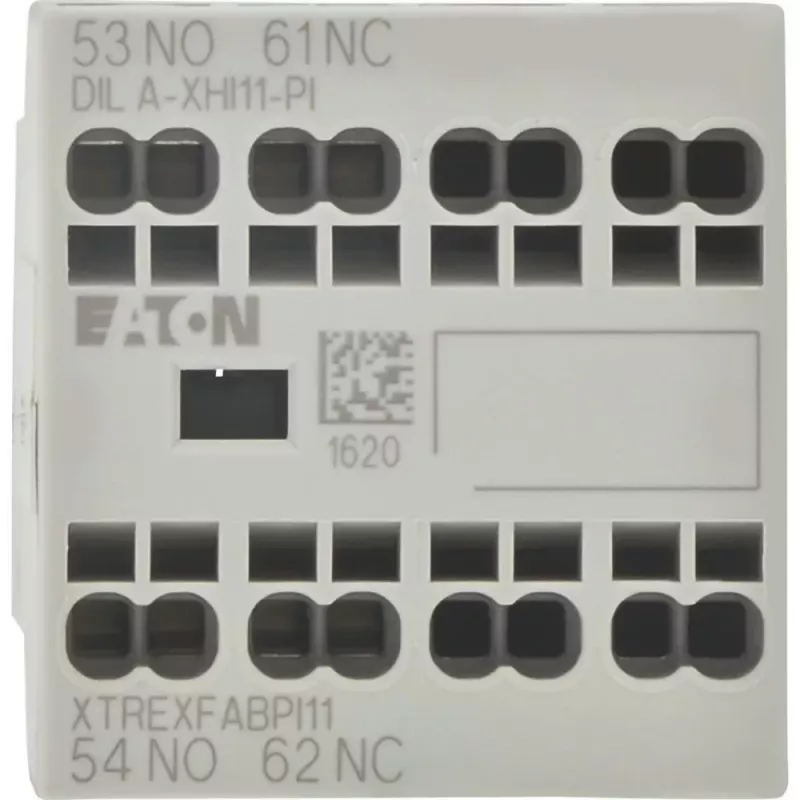

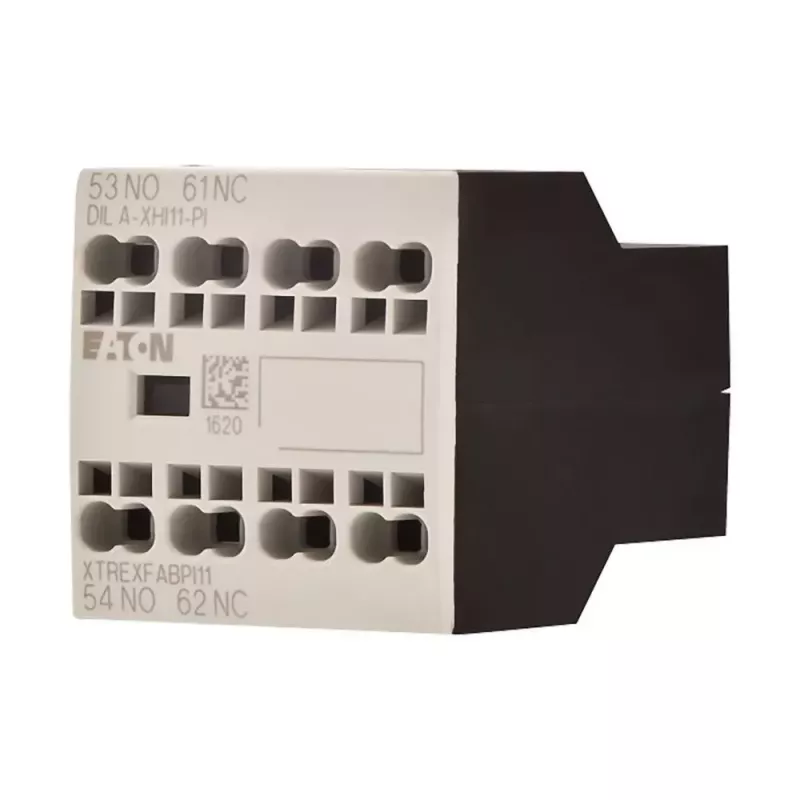

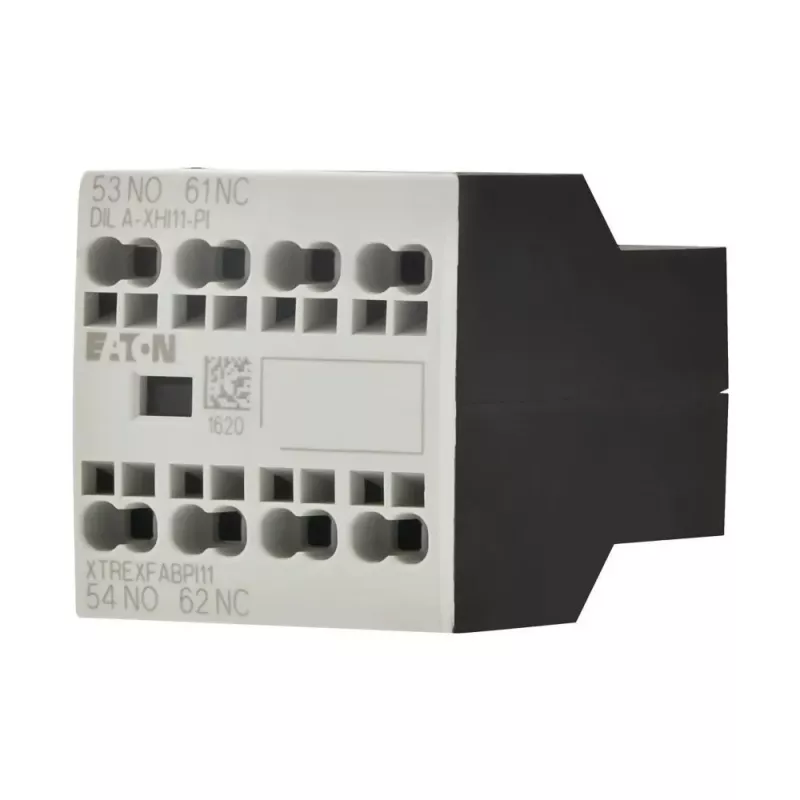

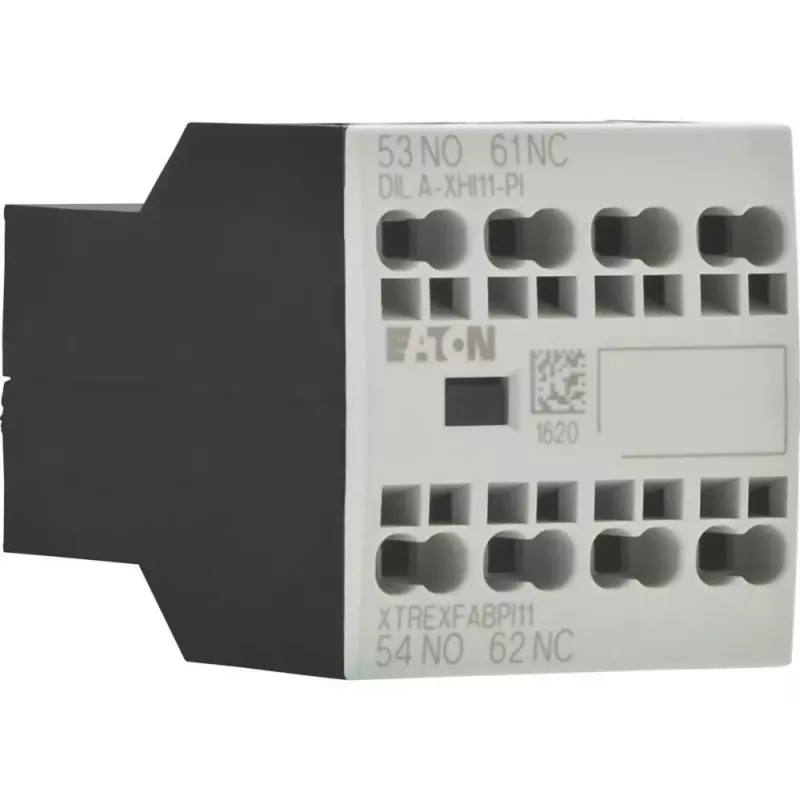

Eaton DILA-XHI11-PI Bloco de contactos auxiliares, 1NO+1NC, terminais push-in, para contatores DILM7-DILM38 199314

Auxiliary contact block for Eaton DILM contactors, providing 1 normally open and 1 normally closed contact for signaling and control circuits. Front mounting with push-in terminals for fast, tool-free wiring.

Advantages

Push-in terminals reduce installation time and ensure vibration-resistant connections. The compact design integrates seamlessly with DILM7 to DILM38 contactors, expanding control functionality without additional wiring accessories.

Suitable for

• Signaling and control circuits in industrial automation
• Interlocking and status feedback for motor starters
• Use with Eaton DILM7 to DILM38 contactors

Key specifications

• Contact configuration: 1 NO + 1 NC
• Rated operational current: 4 A at AC-15 230 V, 1 A at DC-13 220 V
• Rated insulation voltage: 690 V
• Connection capacity: 0.75 - 2.5 mm² solid or stranded
• Degree of protection: IP20
• Operating temperature: -25 to +60 °C

Recommendations

Order with matching DILM contactors for a complete motor control solution. Verify terminal torque and conductor size for reliable operation.
