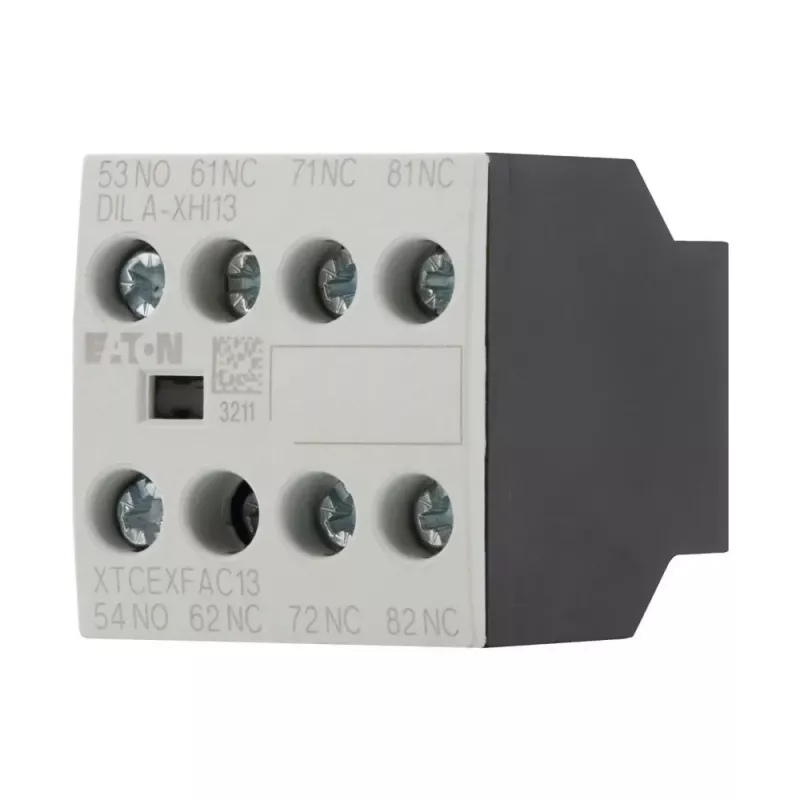

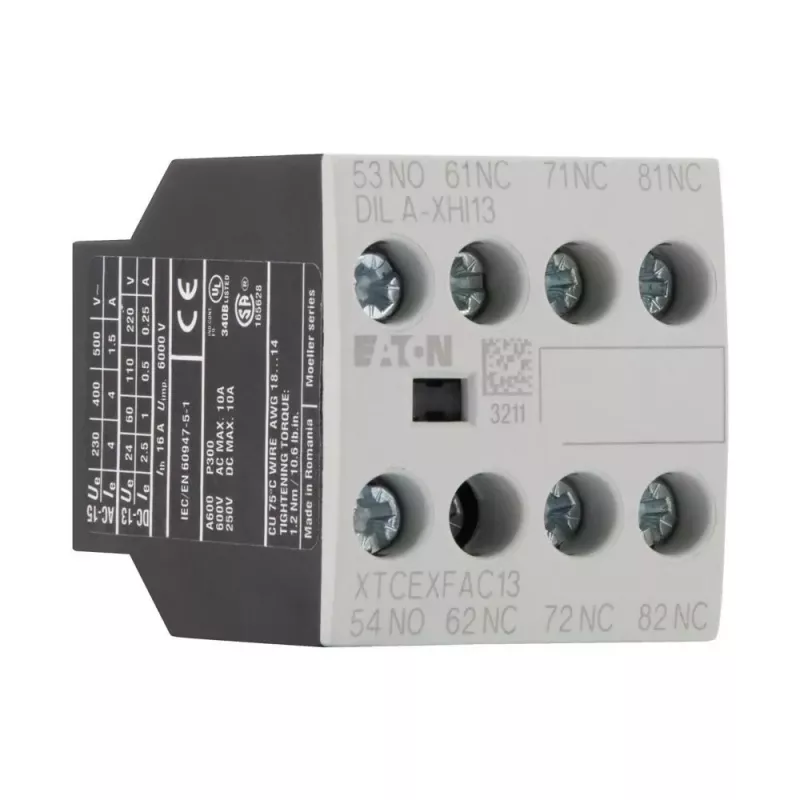

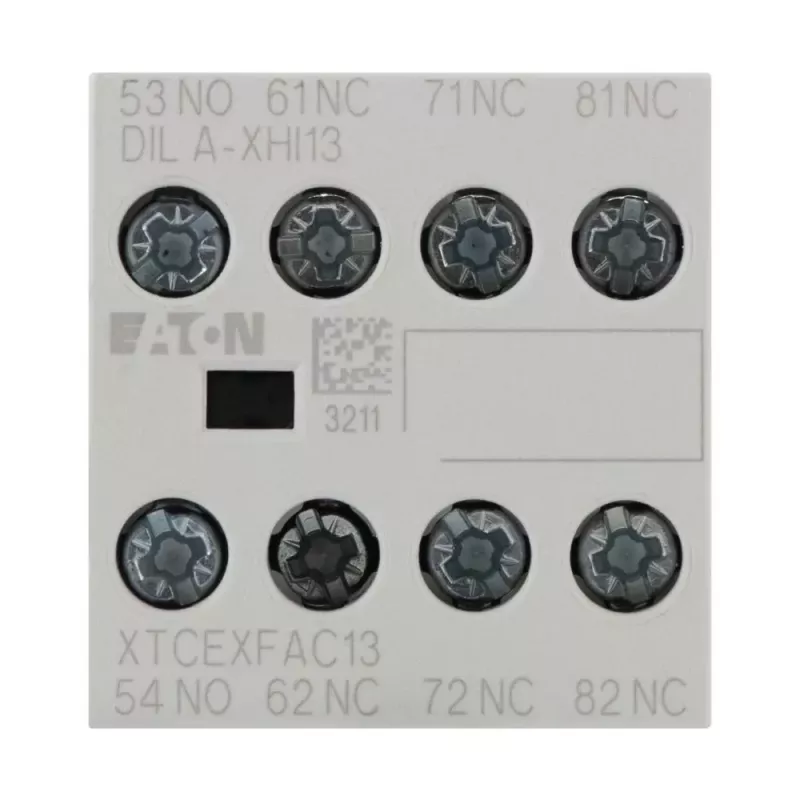

Eaton DILA-XHI13 bloco de contactos auxiliares, tetrapolar, 1NO+3NC, terminais de parafuso, montagem frontal, para contactores DILM7-DILM38, preto/branco 276425

The Eaton DILA-XHI13 auxiliary contact block stands out with its 4-pole configuration, combining one normally open and three normally closed contacts in a compact front-mount housing. It is built for DILM7 to DILM38 contactors, giving you a reliable way to expand control circuits without adding bulk.

Highlights

• Contact configuration: 1 NO + 3 NC
• Front mounting on compatible Eaton contactors
• Screw terminals accept solid or stranded conductors from 0.75 to 2.5 mm²
• Rated operational current up to 6 A at 230 V AC (AC-15)
• Operating temperature range: -25 to 60 °C

In daily use

The DILA-XHI13 snaps onto the front of a DILM contactor, adding auxiliary contacts for signaling, interlocking, or control logic. Its screw terminals provide a secure connection, and the black and white housing clearly distinguishes the contact types. With a mechanical durability of 10 million operations and an electrical durability of 1 million operations at AC-15, it is suited for high-cycle applications.

Full specifications

• Contact configuration: 1 normally open (NO) + 3 normally closed (NC)
• Mounting type: Front mounting
• Connection type: Screw terminals
• Rated operational voltage (Ue): 690 V AC max
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated operational current (AC-15, 230 V): 6 A
• Rated operational current (DC-13, 220 V): 1 A
• Operating temperature range: -25 to 60 °C
• Storage temperature range: -40 to 80 °C
• Degree of protection: IP20
• Suitable for: DILM7 to DILM38 contactors
• Terminal capacity (solid): 1 x (0.75 - 2.5) mm², 2 x (0.75 - 2.5) mm²
• Terminal capacity (stranded): 1 x (0.75 - 2.5) mm², 2 x (0.75 - 2.5) mm²
• Mechanical durability: 10 x 10^6 operations
• Electrical durability (AC-15): 1 x 10^6 operations
• Standards: IEC/EN 60947-5-1, VDE 0660
• Color: Black / White
• Number of poles: 4
• Series: DILA

Final note

The DILA-XHI13 is a straightforward, durable choice for expanding contactor functionality in industrial control panels.
