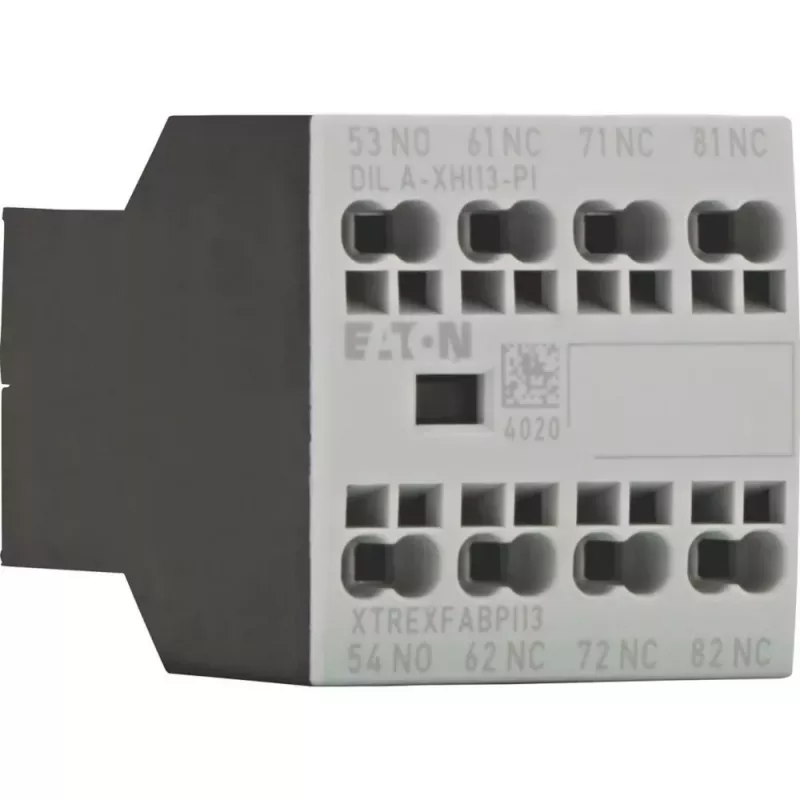

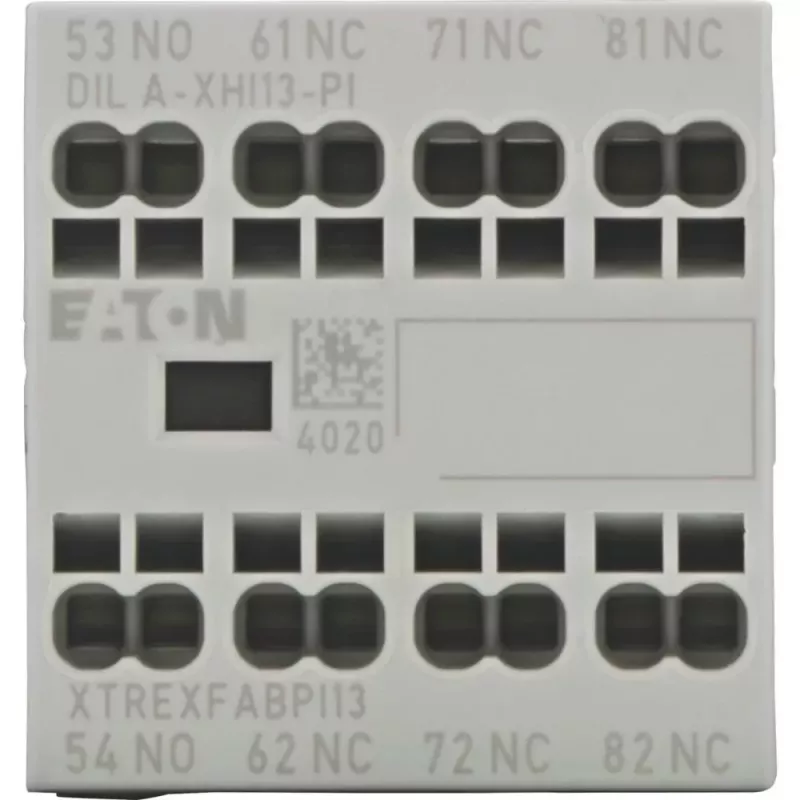

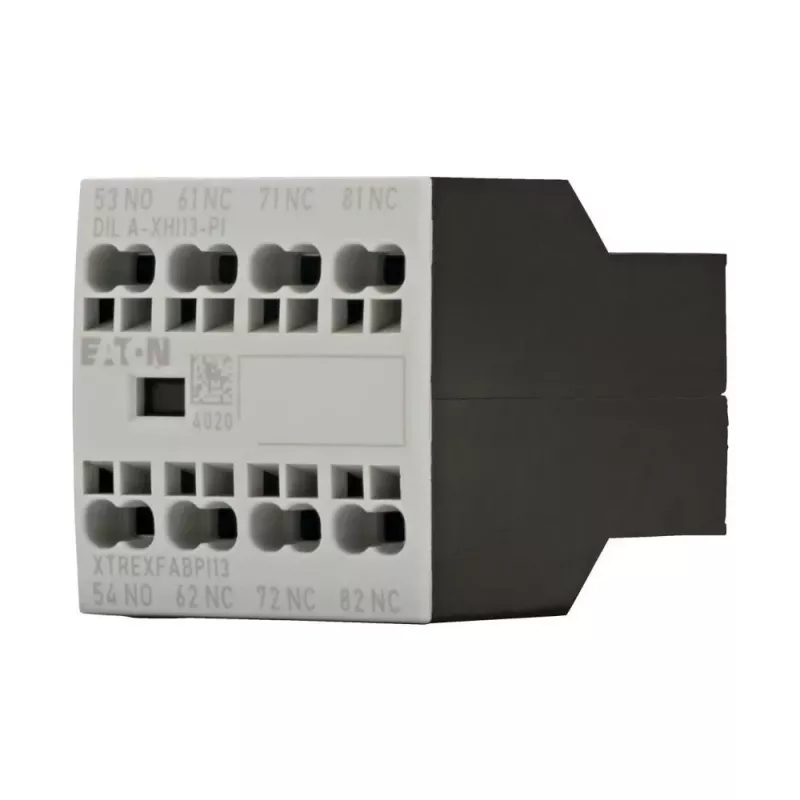

Eaton DILA-XHI13-PI Bloco de contactos auxiliares, 1NO+3NC, montagem frontal, terminais de parafuso 199320

Auxiliary contact block for Eaton DILM7-DILM38, DILMP20, DILMP32, and DILMF8-DILMF38 contactors, providing 1 normally open and 3 normally closed instantaneous contacts for control and signaling circuits. Front mounting with screw terminals ensures secure wiring and easy installation.

Advantages

Silver alloy contacts deliver reliable switching for low-energy loads. The block mounts directly on the contactor front, simplifying assembly and reducing panel space. Screw terminals accept solid or stranded conductors from 0.75 to 2.5 mm², with fine-stranded ferrules up to 1.5 mm².

Suitable for

• Control circuits requiring multiple auxiliary contacts
• Interlocking and status indication in motor starters
• Retrofitting existing Eaton contactors with additional contacts

Key specifications

• Contact configuration: 1 NO + 3 NC
• Rated operational current: 4 A at AC-15, 230 V; 1 A at DC-13, 24 V
• Rated insulation voltage: 690 V AC
• Rated impulse withstand voltage: 6 kV
• Degree of protection: IP20
• Operating temperature: -25 to +60 °C
• Standards: IEC/EN 60947-5-1

Recommendations

Verify contactor compatibility before ordering. Use appropriate ferrules for fine-stranded conductors to ensure reliable termination.
