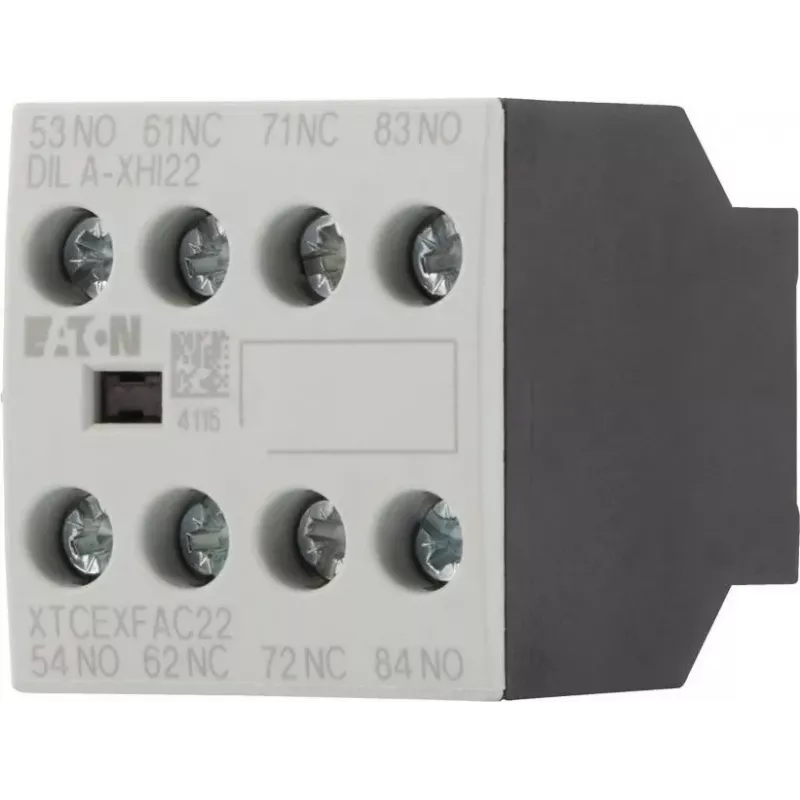

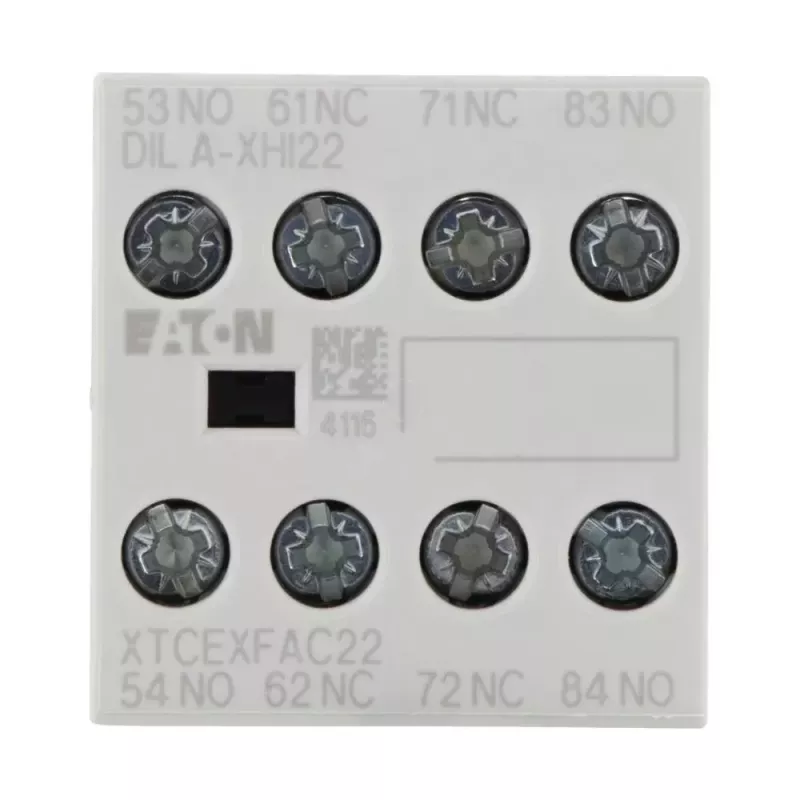

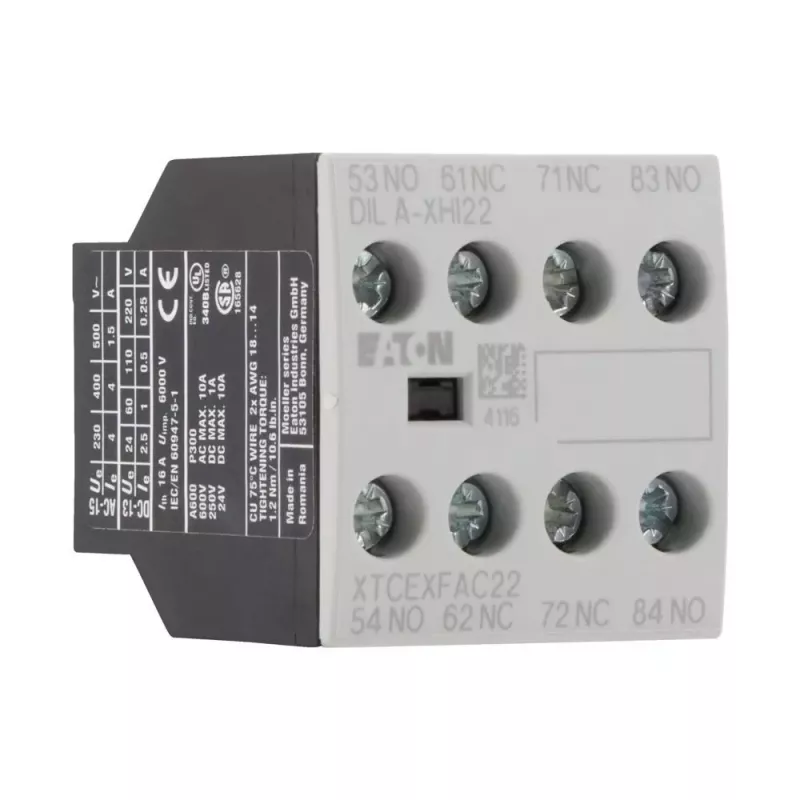

Eaton DILA-XHI22 bloco de contactos auxiliares 2NO+2NC montagem frontal 276426

Auxiliary contact block for Eaton DILM contactors, providing 2 normally open and 2 normally closed contacts. Front mounting design enables quick installation without tools. Rated for 4 A at 230 V AC-15, with screw terminals accepting up to 2 x 2.5 mm² conductors.

Advantages

Four contacts in one compact module expand control and signaling capabilities. Front mounting simplifies installation and maintenance. Screw terminals ensure secure, vibration-resistant connections. Wide operating temperature range from -25 to +60 °C suits demanding industrial environments.

Suitable for

• Eaton DILM7 to DILM38 contactors
• Control circuits requiring auxiliary signaling
• Industrial automation and motor control applications

Key specifications

• Contact configuration: 2 NO + 2 NC
• Mounting type: front mounting
• Rated operational current: 4 A (AC-15, 230 V), 3 A (AC-15, 400 V), 1 A (DC-13, 24 V)
• Rated insulation voltage: 690 V AC
• Rated impulse withstand voltage: 6 kV
• Terminal type: screw terminals
• Degree of protection: IP20
• Operating temperature: -25 to +60 °C
• Standards compliance: IEC/EN 60947-5-1
• Max. connection capacity: 2 x 2.5 mm²
• Tightening torque: 0.8 Nm
• Mechanical durability: 10 million operations

Recommendations

Verify contactor compatibility before ordering. Use appropriate screwdriver for terminal torque. Follow installation guidelines for safe operation.
