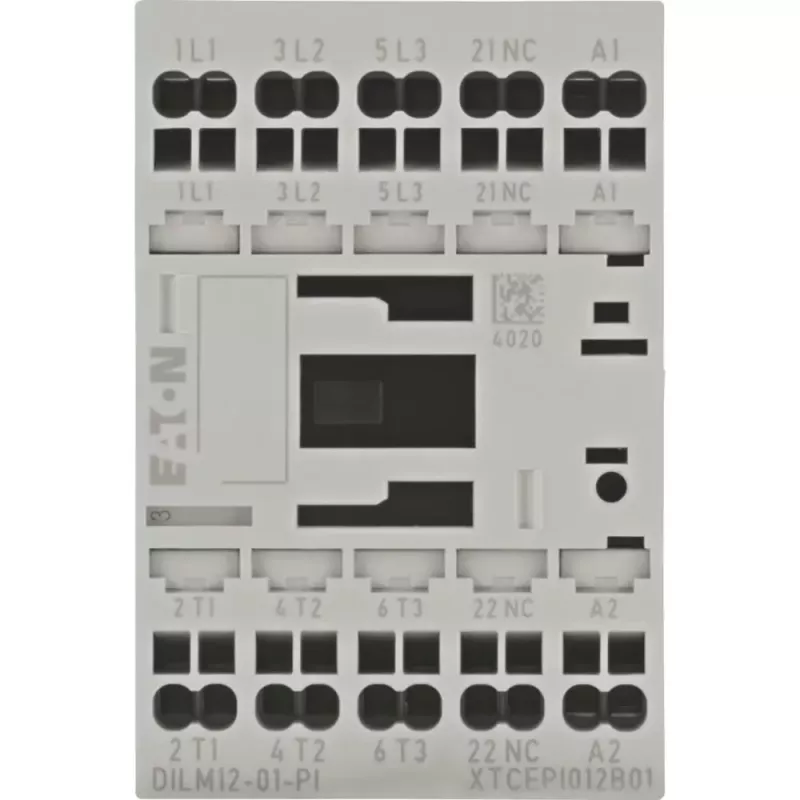

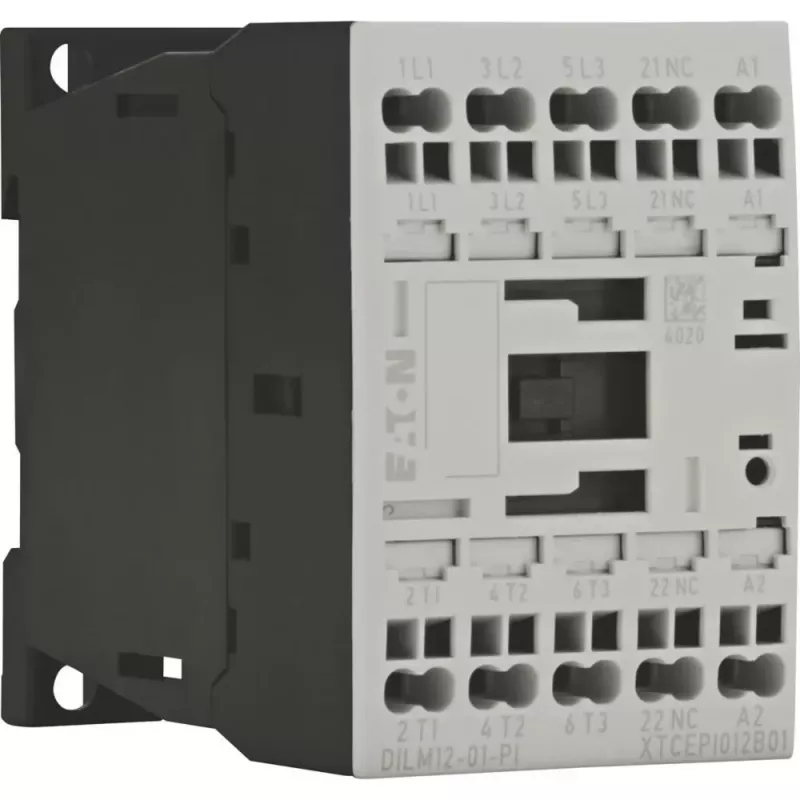

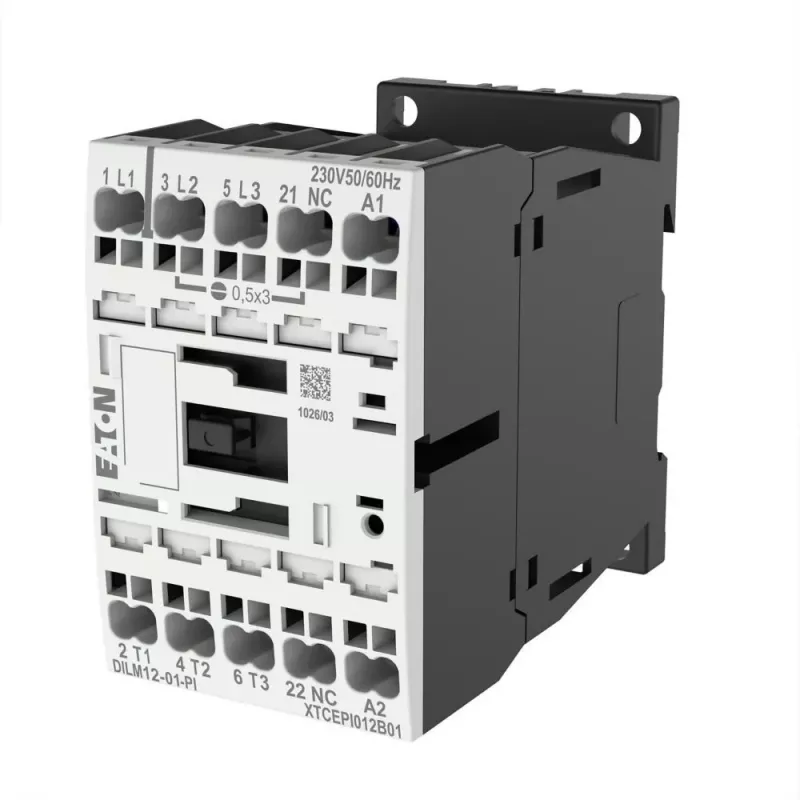

EATON DILM12-01 24V DC contactor, 3 polos, 12 A, 1 contacto auxiliar NO 199248

The DILM12-01 contactor from Eaton's DILM series stands out for its compact design and reliable switching of motors up to 5.5 kW at 400 V AC. This 3-pole contactor is equipped with a 24 V DC coil and one normally open auxiliary contact, making it suitable for a wide range of industrial control applications.

Highlights

• 3-pole main contacts rated for 12 A (AC-3) and 22 A (AC-1) at 400 V
• 24 V DC coil voltage for direct control from PLC outputs
• 1 normally open (NO) auxiliary contact for status feedback or interlocking
• Compact dimensions and DIN rail or screw mounting for flexible installation
• High mechanical and electrical durability for long service life

In daily use

The DILM12-01 is designed for switching three-phase motors and resistive loads in industrial environments. Its screw terminals ensure secure wiring, and the IP20 protection allows installation in control cabinets. The contactor operates reliably across a temperature range of -25 °C to +60 °C, making it suitable for demanding conditions.

Full specifications

• Control voltage: 24 V DC
• Rated operational current Ie (AC-3, 400 V): 12 A
• Rated operational current Ie (AC-1, 400 V): 22 A
• Rated operational power Pe (AC-3, 400 V): 5.5 kW
• Number of main poles: 3
• Auxiliary contacts: 1 NO
• Rated operational voltage Ue: 690 V AC
• Mounting type: DIN rail / screw mounting
• Terminal type: screw terminals
• Degree of protection: IP20
• Operating temperature range: -25 to +60 °C
• Rated impulse withstand voltage Uimp: 6 kV
• Electrical life (AC-3): >1.5 x 10^6 operations
• Mechanical life: >10 x 10^6 operations
• Rated frequency: 50/60 Hz

Final note

The DILM12-01 combines proven Eaton contactor technology with a compact footprint, offering a dependable solution for motor control and switching tasks.
