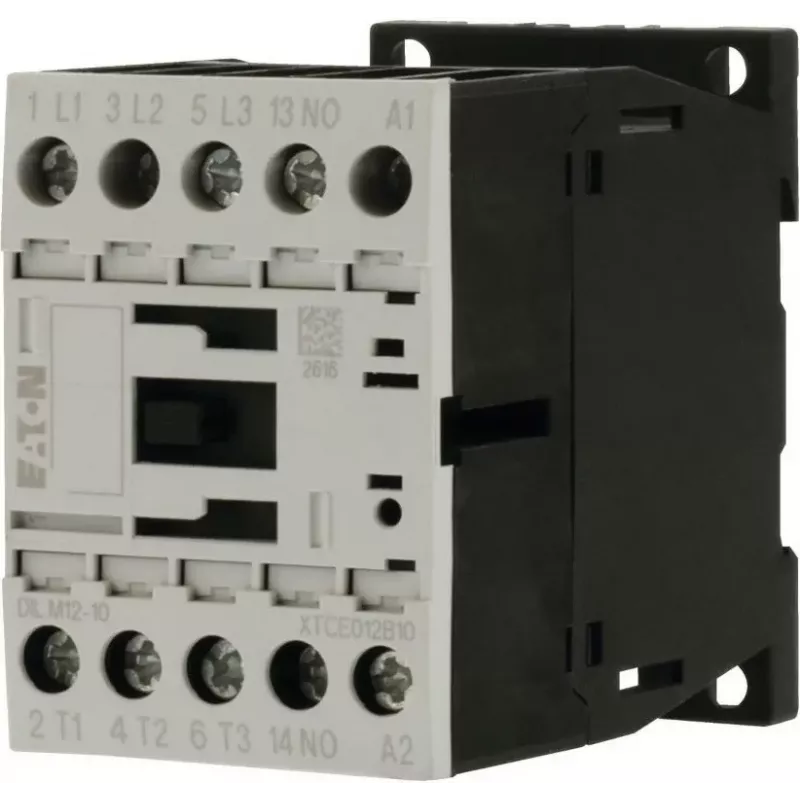

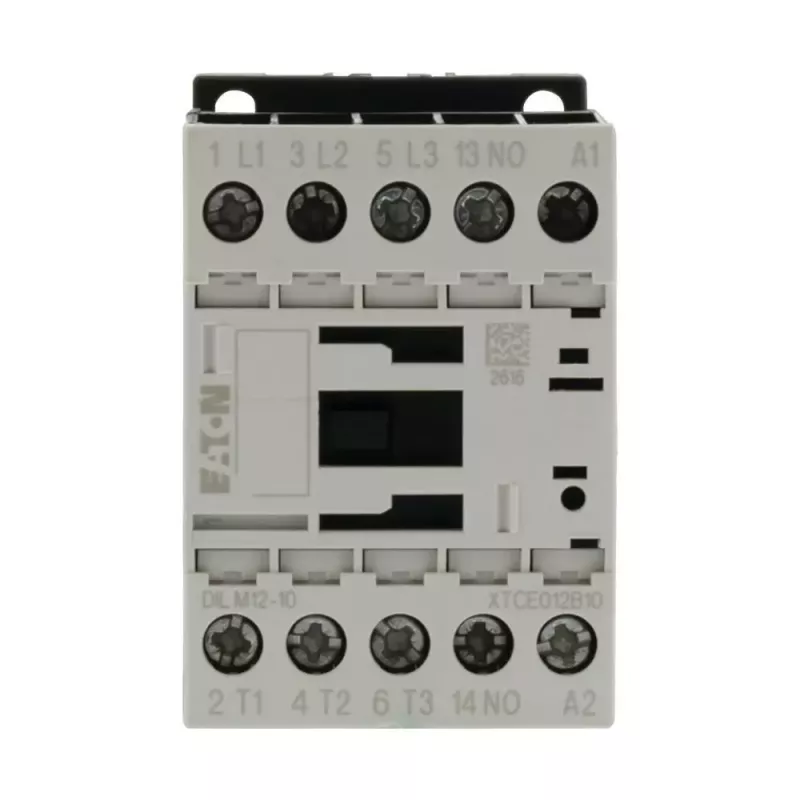

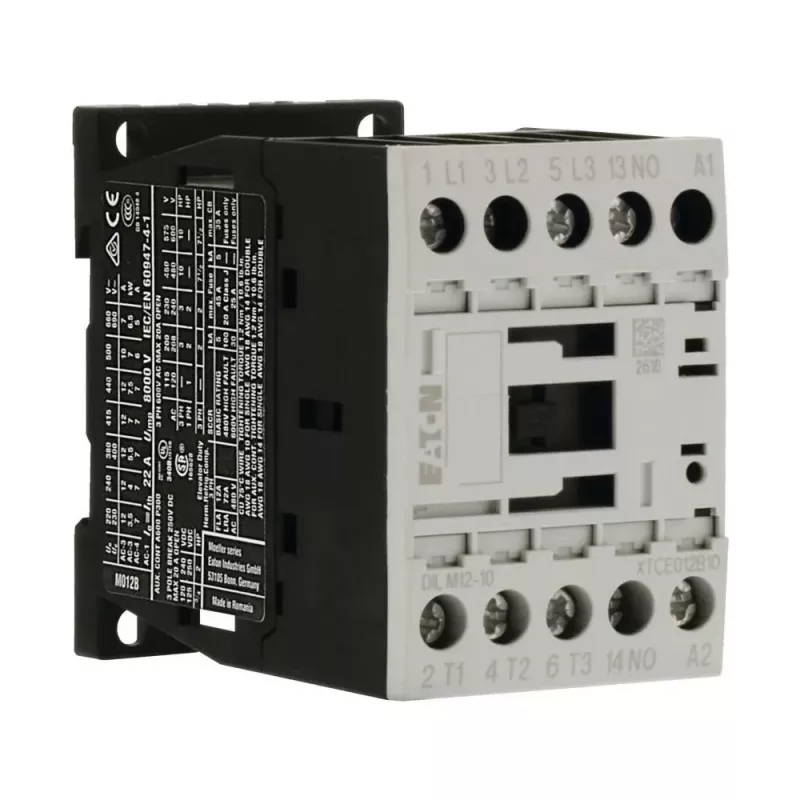

EATON DILM12-10 contactor de potência 24V 50/60Hz tripolar 12A 1NO contacto auxiliar 276834

The EATON DILM12-10 power contactor stands out with its compact design and reliable switching for motor control up to 5.5 kW. It offers a 3-pole main circuit with normally open contacts and an integrated auxiliary contact, making it suitable for a wide range of industrial applications.

Highlights

• Rated operational current of 12 A (AC-3, 400 V)
• Coil voltage 24 V AC, 50/60 Hz
• 3 main poles, 1 auxiliary contact (NO)
• Long mechanical life: 10 million operations
• DIN rail or screw mounting

In daily use

This contactor is engineered for frequent switching in motor control circuits. Its screw terminals allow secure wiring, and the compact footprint saves space in control panels. The device operates reliably in ambient temperatures from -25 to +60 °C.

Full specifications

• Number of poles: 3
• Main contacts: 3 NO
• Auxiliary contacts: 1 NO
• Rated operational current (AC-3, 400 V): 12 A
• Rated operational power (AC-3, 400 V): 5.5 kW
• Coil voltage: 24 V AC, 50/60 Hz
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Degree of protection: IP20
• Mounting: DIN rail / screw
• Terminal type: screw terminals
• Electrical life (AC-3): 1.5 million operations
• Mechanical life: 10 million operations
• Ambient operating temperature: -25 to +60 °C
• Rated short-circuit withstand current (Icw): 1000 A (1s)

Final note

A dependable choice for motor switching, the DILM12-10 combines performance and durability in a compact package.
