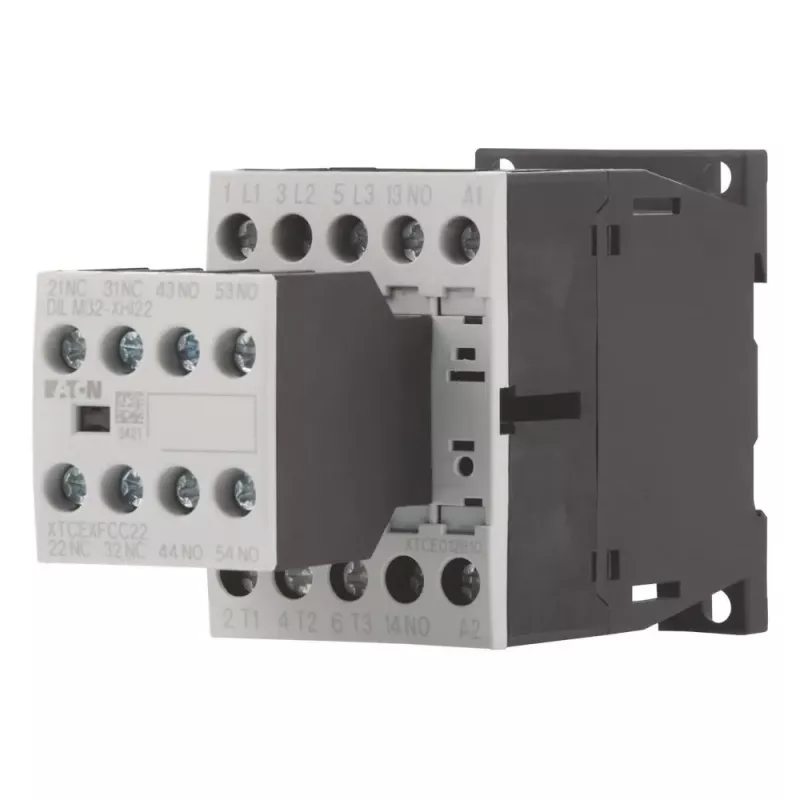

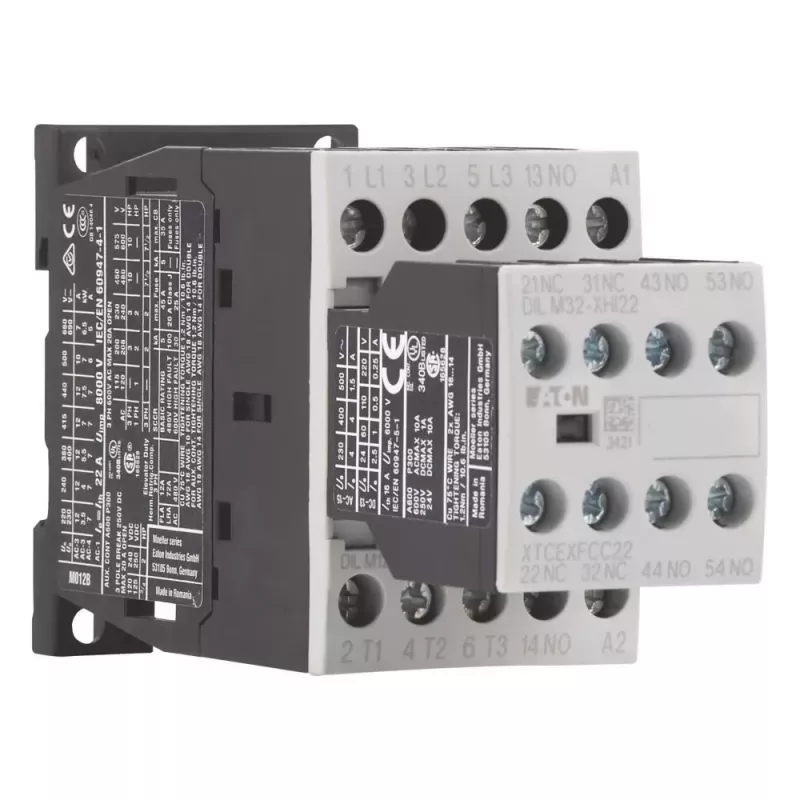

Eaton DILM12-32(24VDC) contactor de potência, tripolar, 12 A, bobina 24 V DC, 1 NO + 2 NC, terminais de parafuso, IP20, montagem em calha DIN/parafuso 276950

With a rated operational current of 12 A at 400 V AC-3 and a mechanical life of 10 million operations, the Eaton DILM12-32(24VDC) power contactor is built for demanding switching tasks. This 3-pole contactor handles motors up to 5.5 kW and features a 24 V DC coil for reliable control.

Overview

The Eaton DILM12-32(24VDC) is a compact power contactor designed for industrial motor control and switching applications. It offers a rated operational current of 12 A (AC-3, 400 V) and a rated operational power of 5.5 kW at 400 V. The contactor includes 1 normally open (NO) and 2 normally closed (NC) auxiliary contacts, providing flexibility for control circuit integration.

What stands out

• High mechanical durability: 10 million operations
• Electrical durability: 1.5 million operations (AC-3)
• Wide operating temperature range: -25 to +60 °C
• Rated impulse withstand voltage: 6 kV
• Rated insulation voltage: 690 V
• Mounting options: DIN rail or screw mounting

Technical details

• Number of poles: 3
• Rated operational current (AC-3, 400 V): 12 A
• Rated operational power (AC-3, 400 V): 5.5 kW
• Control circuit voltage: 24 V DC
• Auxiliary contacts: 1 NO + 2 NC
• Main circuit connection: screw terminals
• Control circuit connection: screw terminals
• Protection class: IP20
• Rated frequency: 50/60 Hz
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated insulation voltage (Ui): 690 V
• Mechanical life: 10 x 10^6 operations
• Electrical life (AC-3): 1.5 x 10^6 operations

Our verdict

The Eaton DILM12-32(24VDC) is a robust and reliable contactor, ideal for applications requiring frequent switching and long service life. Its compact size and flexible mounting options make it a practical choice for control panels.
