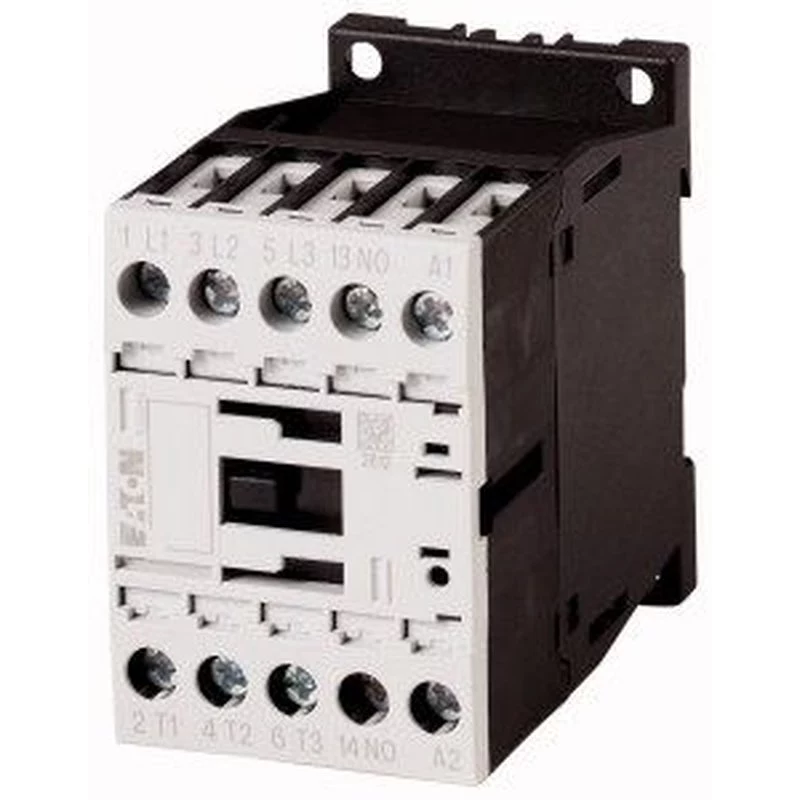

Eaton DILM15-10 Contator de potência 3 polos, bobina 24 V AC, 15 A AC-3, 1 contacto auxiliar NO 290045

Power contactor for switching three-phase AC motors up to 7.5 kW at 400 V. The DILM15-10 features three normally open main poles and one normally open auxiliary contact, with a 24 V AC coil operating at 50 Hz. Its compact design and screw terminals enable reliable DIN rail or screw mounting in industrial control panels.

Advantages

High electrical durability and a wide operating temperature range ensure dependable performance in demanding environments. The contactor handles up to 32 A in AC-1 duty, offering flexibility for resistive and motor loads.

Suitable for

• Motor starting and control in industrial machinery
• Heating and lighting load switching
• Building automation and HVAC systems

Key specifications

• Rated operational current (AC-3, 400 V): 15 A
• Rated operational power (AC-3, 400 V): 7.5 kW
• Rated operational current (AC-1, 400 V): 32 A
• Coil voltage: 24 V AC, 50 Hz
• Main contacts: 3 NO; auxiliary contacts: 1 NO
• Rated insulation voltage: 690 V
• Rated impulse withstand voltage: 6 kV
• Mounting: DIN rail or screw
• Degree of protection: IP20
• Operating temperature: -25 to +60 °C

Recommendations

Verify coil voltage and control circuit requirements before installation. Use appropriate overcurrent protection and follow wiring regulations.
