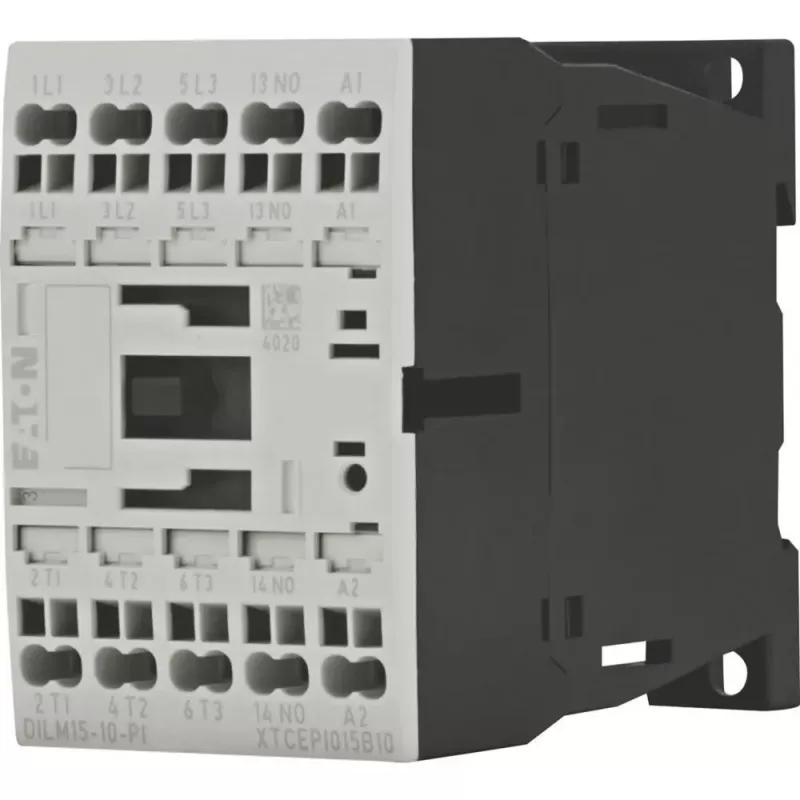

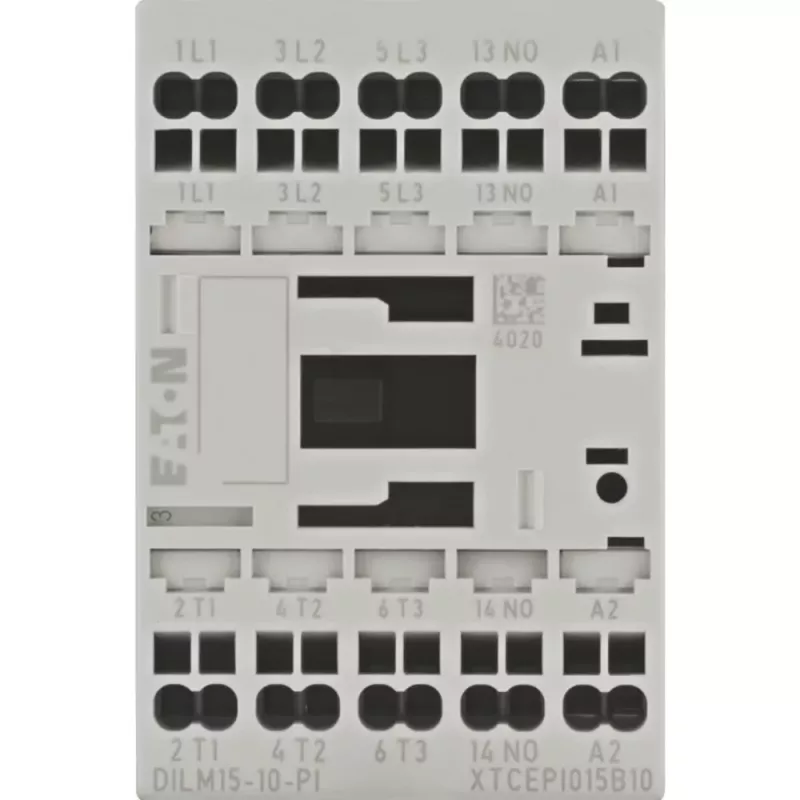

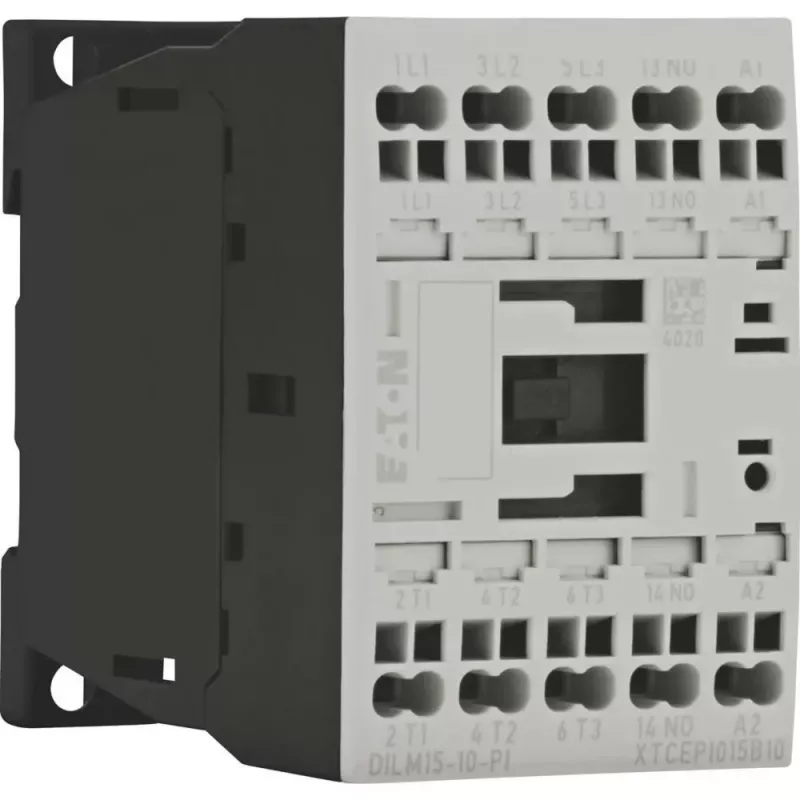

EATON DILM15 Contator, 3 polos, 15 A, bobina 230 V 50 Hz / 240 V 60 Hz, 1NO+1NC 199249

The EATON DILM15 contactor stands out with its dual-frequency coil, accepting both 230 V at 50 Hz and 240 V at 60 Hz, making it adaptable for international applications. Its compact design with screw terminals and DIN rail or screw mounting simplifies installation in control panels.

Highlights

• 3-pole main contacts rated for 15 A at AC-3, 400 V
• Auxiliary contacts: 1 normally open (NO) and 1 normally closed (NC)
• Wide operating temperature range from -25 °C to +60 °C
• High mechanical durability of 10 million operations

In daily use

This contactor is suited for switching three-phase motors up to 7.5 kW at 400 V AC-3. The screw terminals accept flexible conductors with ferrules up to 6 mm² for main circuits, ensuring secure connections. Its IP20 rating indicates protection against solid objects larger than 12 mm, suitable for enclosed installations.

Full specifications

• Rated operational current (AC-3, 400 V): 15 A
• Rated operational current (AC-1, 400 V): 22 A
• Rated operational voltage: up to 690 V AC
• Coil voltage: 230 V (50 Hz), 240 V (60 Hz)
• Rated power (AC-3, 400 V): 7.5 kW
• Mounting: DIN rail or screw mounting
• Terminal type: screw terminals
• Rated impulse withstand voltage (Uimp): 8 kV
• Rated insulation voltage (Ui): 690 V
• Degree of protection: IP20
• Operating temperature range: -25 to +60 °C
• Electrical life (AC-3): 1.5 million operations
• Mechanical life: 10 million operations
• Main circuit connection capacity: 1 x 6 mm² / 2 x 2.5 mm² (flexible with ferrule)
• Control circuit connection capacity: 1 x 2.5 mm² / 2 x 1.5 mm² (flexible with ferrule)
• Short-circuit protective device (main circuit): 35 A (gG/gL fuse)

Final note

With its robust construction and compliance with international standards, the DILM15 is a reliable choice for motor control applications.
