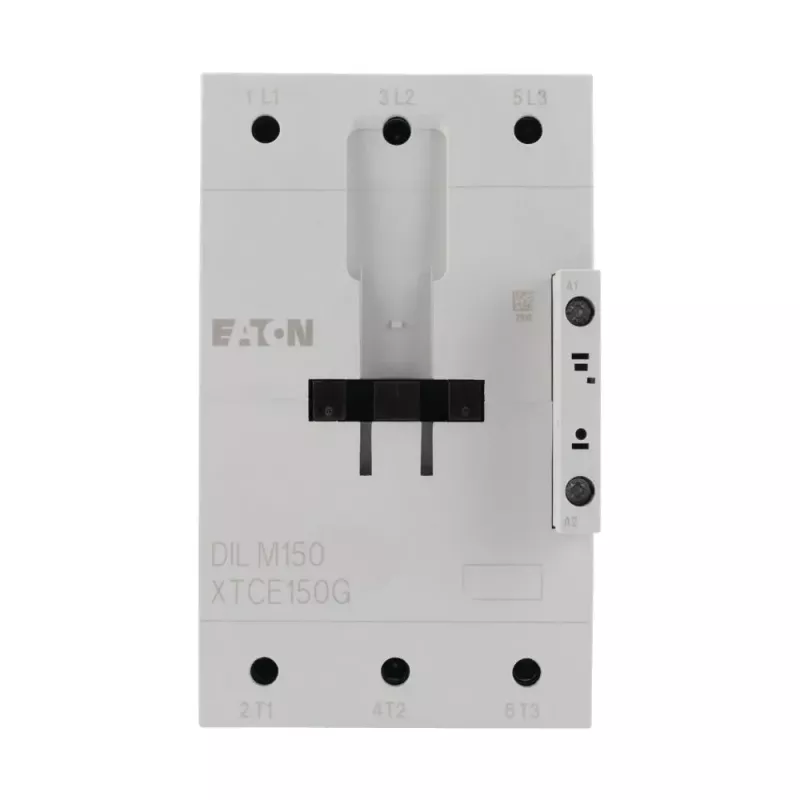

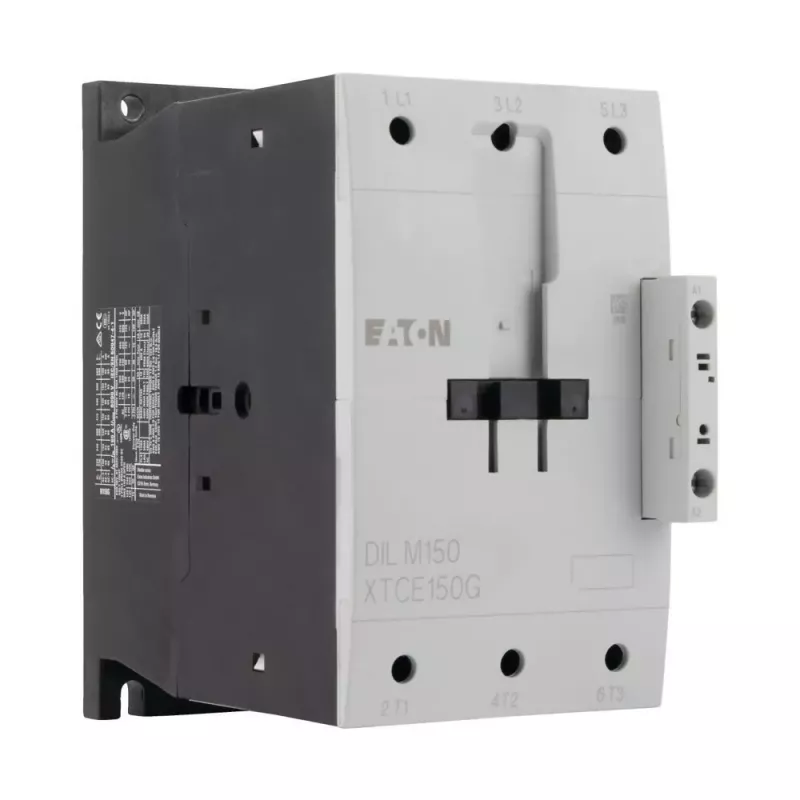

Eaton DILM150 RAC240 Contator 3 polos 75 kW 400 V AC-3 150 A bobina 240 V AC 239588

The Eaton DILM150 RAC240 contactor delivers 75 kW of switching power at 400 V AC-3, handling 150 A operational current with a 240 V AC coil.

Overview

Part of the DILM series, this 3-pole contactor is built for industrial motor control. It features screw terminals, DIN rail or screw mounting, and built-in auxiliary contacts (1 NO + 1 NC).

What stands out

• Rated operational current of 150 A at AC-3
• 240 V AC coil voltage (50/60 Hz)
• High insulation voltage of 690 V and impulse withstand of 8 kV
• Wide operating temperature range: -25 to +60 °C

Technical details

• Number of poles: 3
• Rated operational power (AC-3, 400 V): 75 kW
• Rated operational voltage (Ue): 400 V AC
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 8 kV
• Utilization category: AC-3
• Auxiliary contacts: 1 NO + 1 NC
• Terminal type: Screw terminals
• Mounting: DIN rail / screw mounting
• Degree of protection (terminals): IP20

Our verdict

A robust industrial contactor for demanding motor switching applications.
