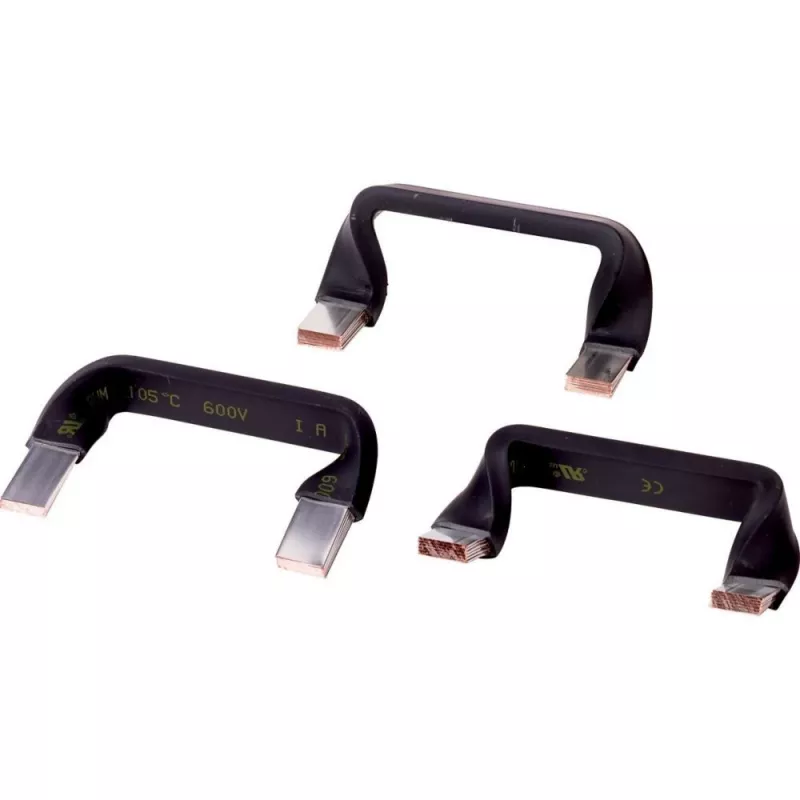

Eaton DILM150-XP2 Ponte paralela para contactor DILM150, 3 polos, 150 A 101685

When a single contactor's main contacts cannot handle the required current, paralleling them becomes necessary. The Eaton DILM150-XP2 Parallel Bridge provides a reliable solution for connecting the main contacts of a DILM150 contactor in parallel, effectively increasing the current-carrying capacity for demanding motor control and power circuit applications.

Who is it for

Electrical engineers, panel builders, and maintenance technicians working with Eaton DILM150 contactors who need to enhance current handling capability without switching to a larger contactor. It is suitable for industrial motor control, power distribution, and any application where parallel contact operation is required.

Main features

• Direct terminal connection for secure and simple installation on DILM150 contactors
• Enables parallel connection of main contacts, increasing operational current up to 200 A (AC-1) or 150 A (AC-3)
• Designed for 3-pole contactors, ensuring balanced current sharing
• Constructed with copper conductors and insulated plastic housing for durability and safety
• Compliant with IEC/EN 60947 standards for industrial control equipment

Specifications

• Accessory Type: Parallel Bridge
• Compatible Contactor Series: Eaton DILM
• Compatible Contactor Model: DILM150
• Number of Poles: 3
• Rated Operational Current (AC-3): 150 A
• Rated Operational Current (AC-1): 200 A
• Rated Operational Voltage: 690 V
• Material: Copper conductors, insulated plastic housing
• Colour: Grey/Black

Tips

Ensure the contactor is de-energized before installation. Verify that the parallel bridge is securely fastened to all three main terminals to prevent uneven current distribution. For optimal performance, use with Eaton DILM150 contactors as specified.
