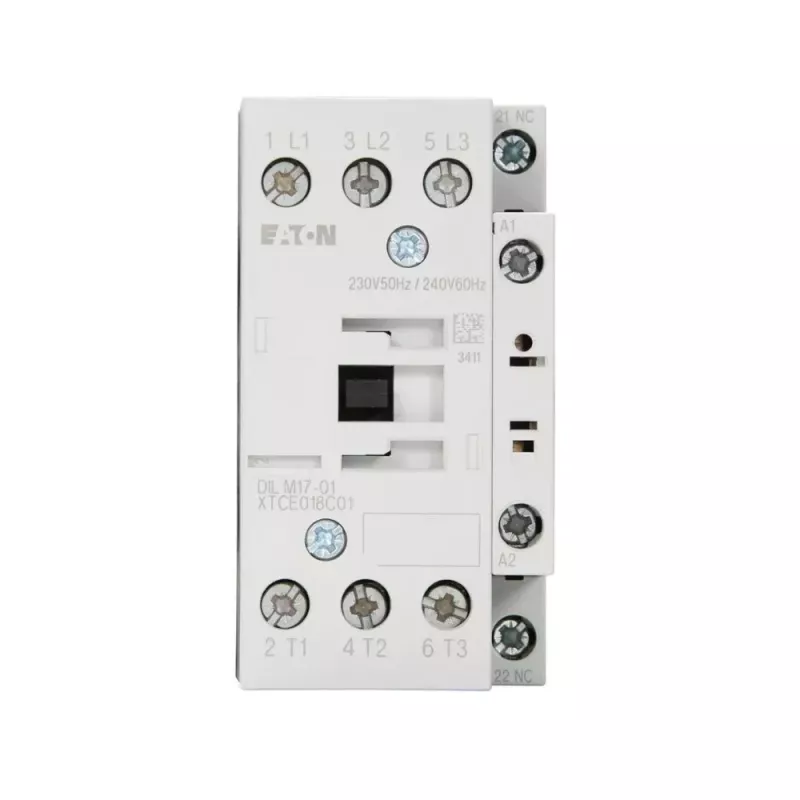

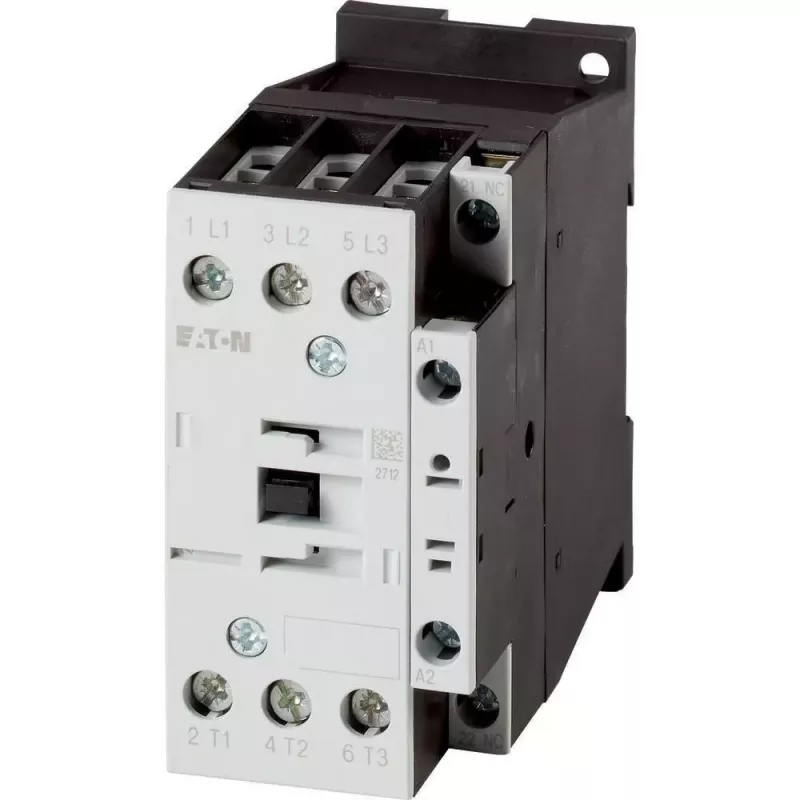

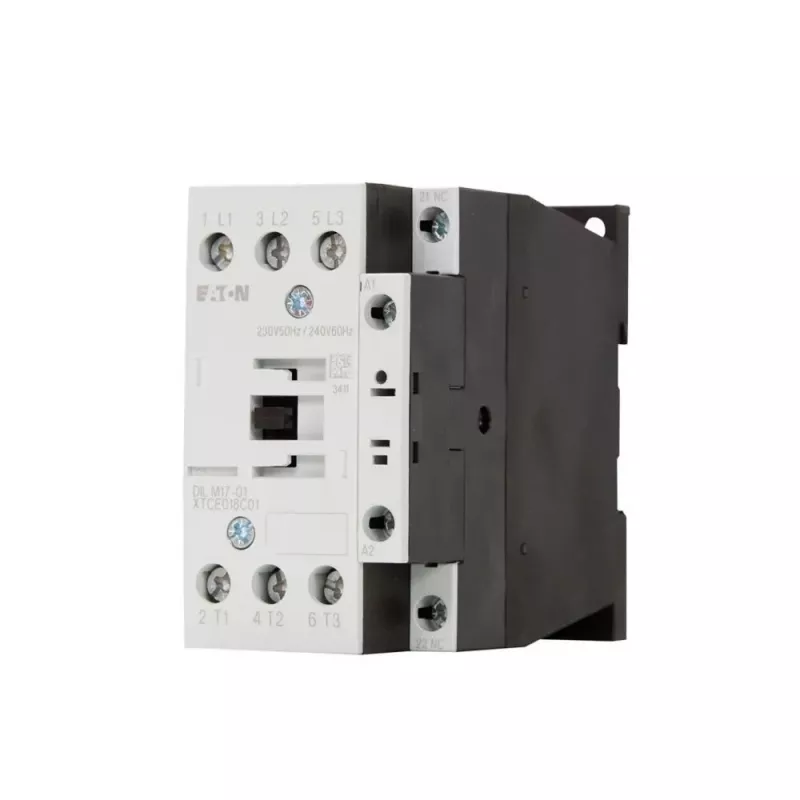

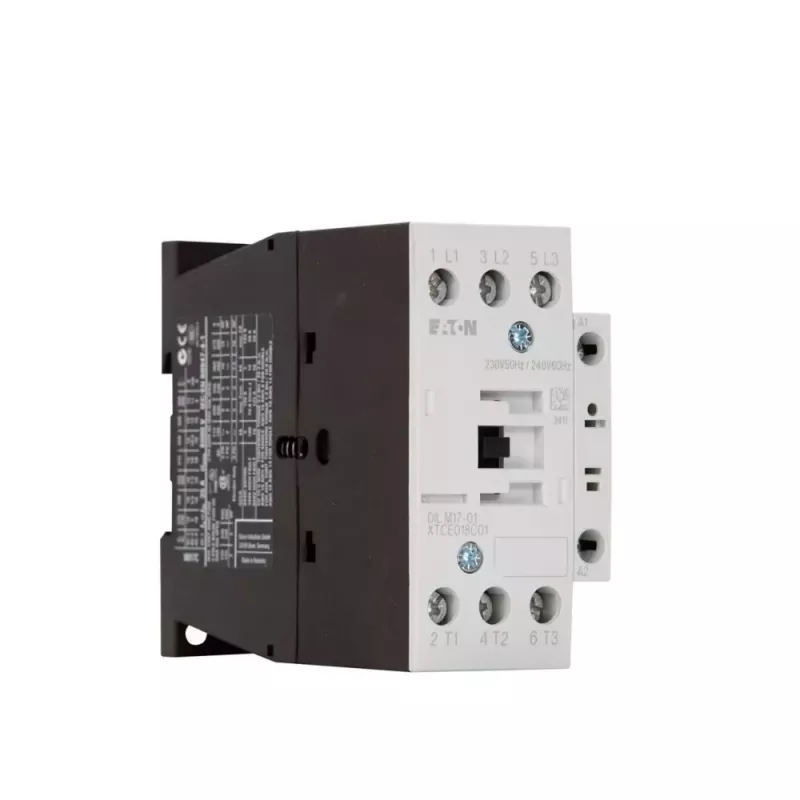

Eaton DILM17-01 Contator, tripolar, 17 A, bobina 230 V AC, 1 contacto auxiliar NC 277036

Industrial control panels and motor starters rely on the Eaton DILM17-01 contactor to switch three-phase loads up to 7.5 kW at 400 V. The 230 V AC coil (50 Hz) and 240 V AC (60 Hz) rating make it suitable for standard European and North American control circuits. Three normally open main poles handle the motor current, while the built-in normally closed auxiliary contact provides feedback or interlocking.

Key specifications

• Rated operational current: 17 A (AC-3, 400 V)
• Rated operational power: 7.5 kW (AC-3, 400 V)
• Coil voltage: 230 V AC (50 Hz), 240 V AC (60 Hz)
• Auxiliary contacts: 1 NC
• Number of poles: 3
• Mounting: DIN rail or screw
• Degree of protection: IP20
• Operating temperature: -25 to +60 °C

Why choose it

The DILM17-01 offers reliable switching in a compact 45 mm width. Screw terminals ensure secure connections, and the IP20 housing suits installation inside enclosures. Mechanical life of 10 million operations reduces replacement frequency in demanding applications.

Ideal use cases

• Motor starting and stopping in industrial machinery
• Heating, ventilation, and air conditioning systems
• Pump and fan control panels
• Conveyor and material handling equipment

Good to know

The contactor complies with IEC/EN 60947 and carries UL/CSA approvals. Rated insulation voltage is 690 V, and the rated impulse withstand voltage is 6 kV. For auxiliary contact expansion, additional side-mounted modules can be added.
