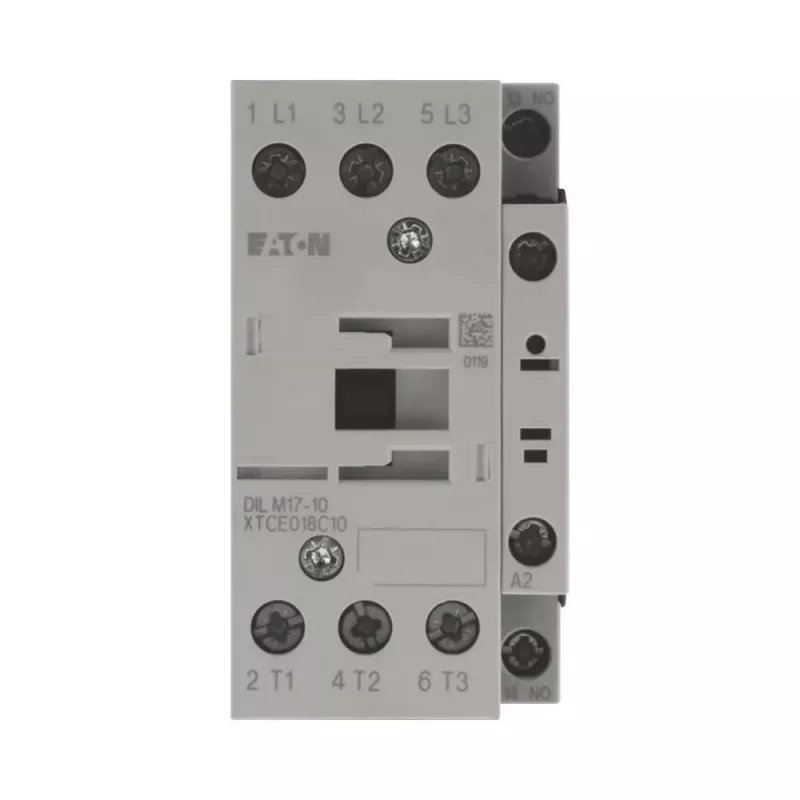

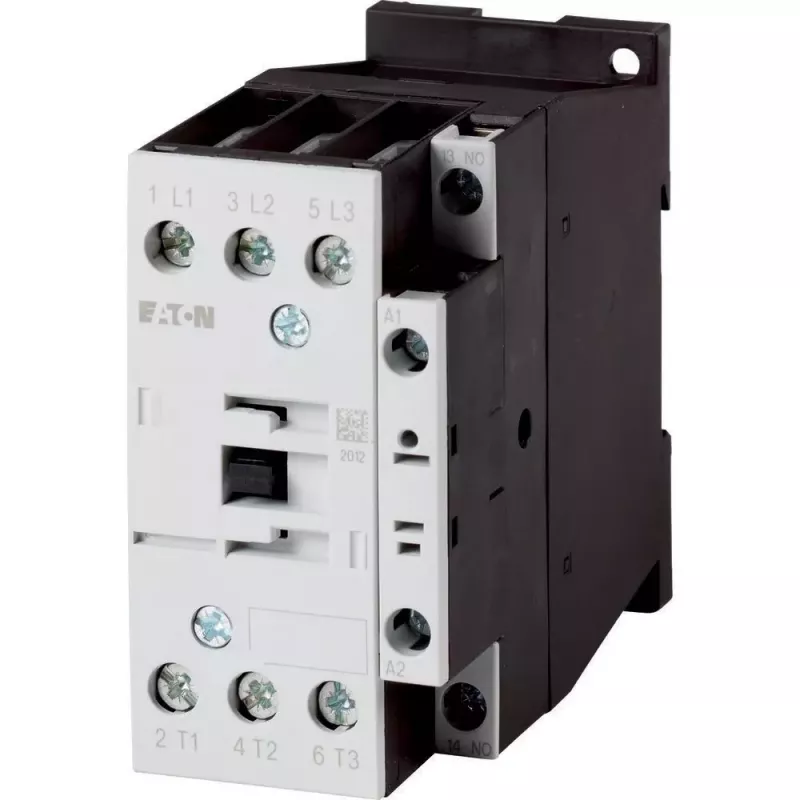

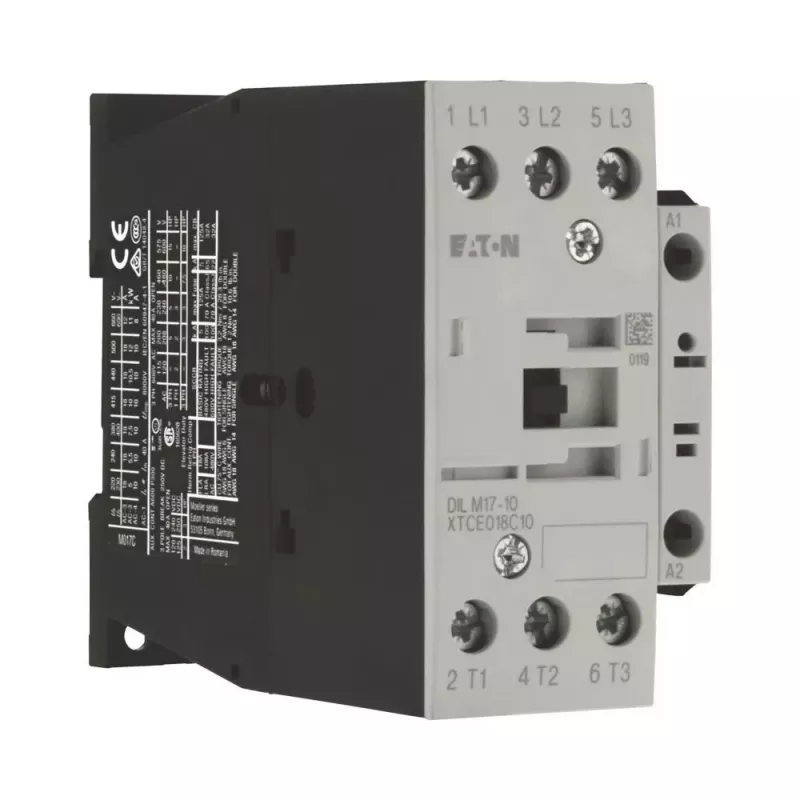

Eaton DILM17-10(RDC24) Contator tripolar, bobina 24 V DC, 17 A AC-3, 1 contacto auxiliar NO, IP00, preto/branco 277018

Rated for 17 A AC-3 at 400 V, the Eaton DILM17-10(RDC24) contactor delivers dependable motor switching up to 7.5 kW with a 24 V DC coil and a 1 NO auxiliary contact.

Overview

The Eaton DILM17-10(RDC24) is a 3-pole contactor designed for industrial motor control and power switching applications. It features a 24 V DC coil, screw terminals, and a compact 56 mm width for DIN rail or screw mounting. The contactor is rated IP00 and operates reliably in temperatures from -25 to +60 °C.

What stands out

• High electrical durability: 10 million operations (AC-3)
• Mechanical life of 30 million operations
• Rated impulse withstand voltage (Uimp) of 8 kV
• Complies with IEC/EN 60947 and VDE 0660

Technical details

• Rated operational current (AC-3, 400 V): 17 A
• Rated operational current (AC-1, 690 V): 32 A
• Rated operational voltage (Ue): 690 V AC
• Motor power (AC-3, 400 V): 7.5 kW
• Rated insulation voltage (Ui): 690 V
• Number of poles: 3
• Auxiliary contacts: 1 NO
• Coil voltage: 24 V DC
• Mounting: DIN rail / screw
• Terminal type: screw terminals
• Operating temperature: -25 to +60 °C
• Colour: black, white

Our verdict

A robust contactor for demanding motor control tasks, combining high switching capacity with long service life and compliance with key industrial standards.
