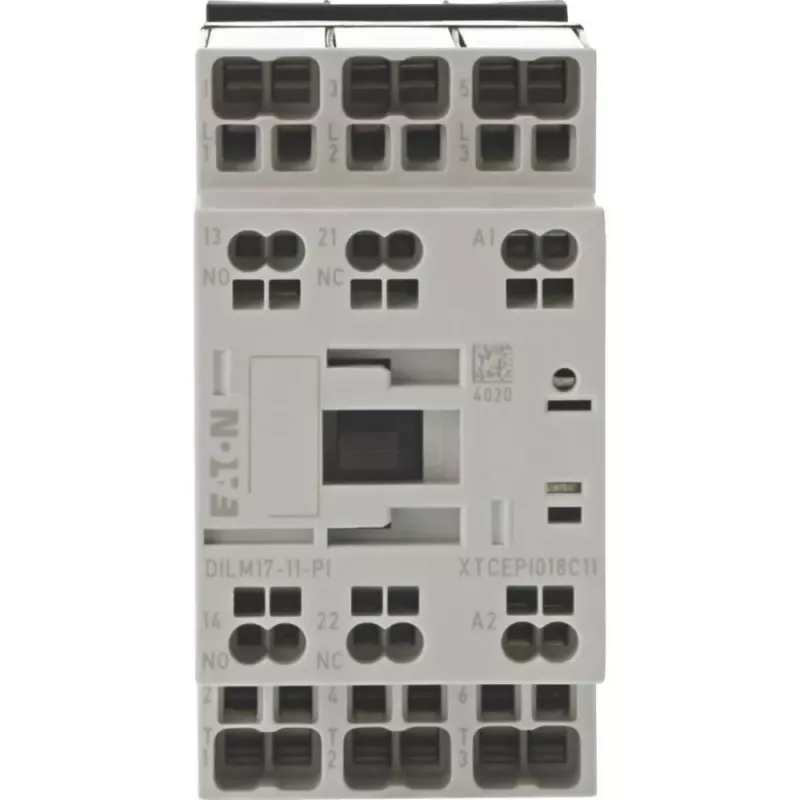

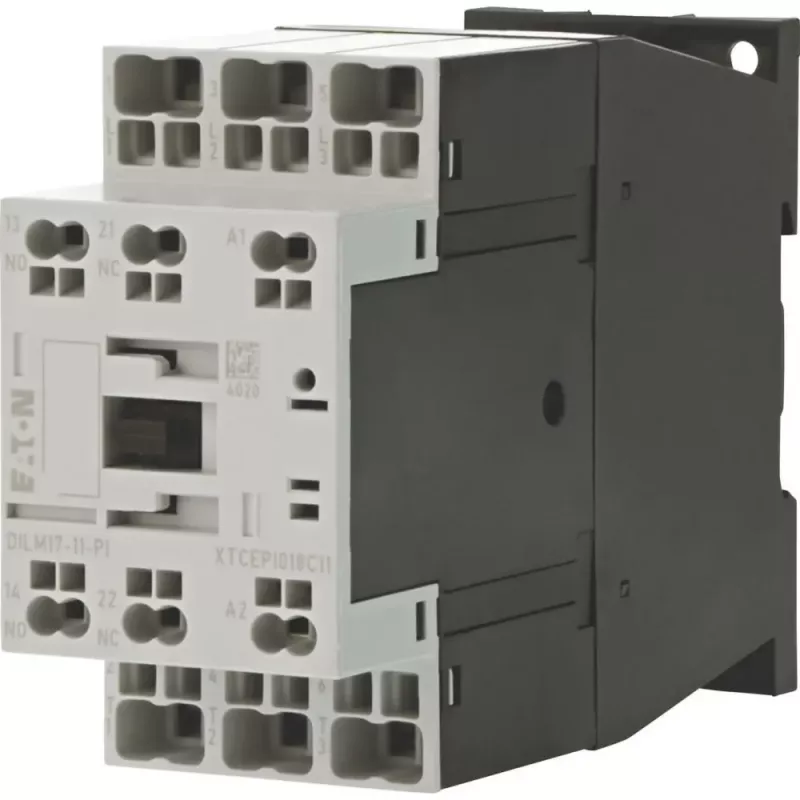

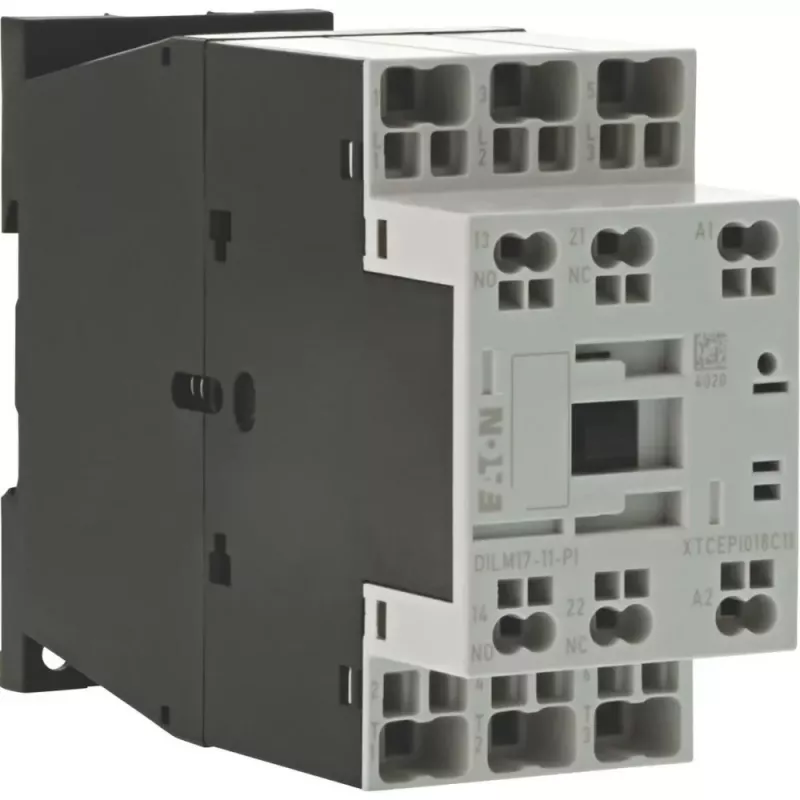

Eaton DILM17-11 Contator de potência, 3 polos, 17 A, bobina 230 V AC / 240 V AC 199279

Power contactor with 3 normally open main contacts, rated for 17 A operational current (AC-3, 400 V) and suitable for motors up to 7.5 kW. The coil accepts 230 V at 50 Hz or 240 V at 60 Hz, making it adaptable to different mains frequencies.

Advantages

Compact design for DIN rail or screw mounting. Auxiliary contacts (1 NO + 1 NC) provide control feedback. High mechanical durability of 10 million operations and electrical durability of 1.5 million operations under AC-3 load.

Suitable for

• Switching three-phase motors up to 7.5 kW at 400 V
• Control circuits requiring auxiliary contact status
• Industrial panels with DIN rail mounting

Key specifications

• Rated operational current (AC-3, 400 V): 17 A
• Rated operational current (AC-1, 400 V): 32 A
• Rated operational voltage: 690 V AC
• Coil voltage: 230 V AC (50 Hz) / 240 V AC (60 Hz)
• Number of poles: 3
• Auxiliary contacts: 1 NO + 1 NC
• Mounting: DIN rail / screw
• Degree of protection: IP20
• Connection: screw terminals
• Standards: IEC/EN 60947, VDE 0660, UL, CSA

Recommendations

Verify coil voltage and frequency match your control circuit. For higher motor currents, consider a larger contactor from the DILM series.
