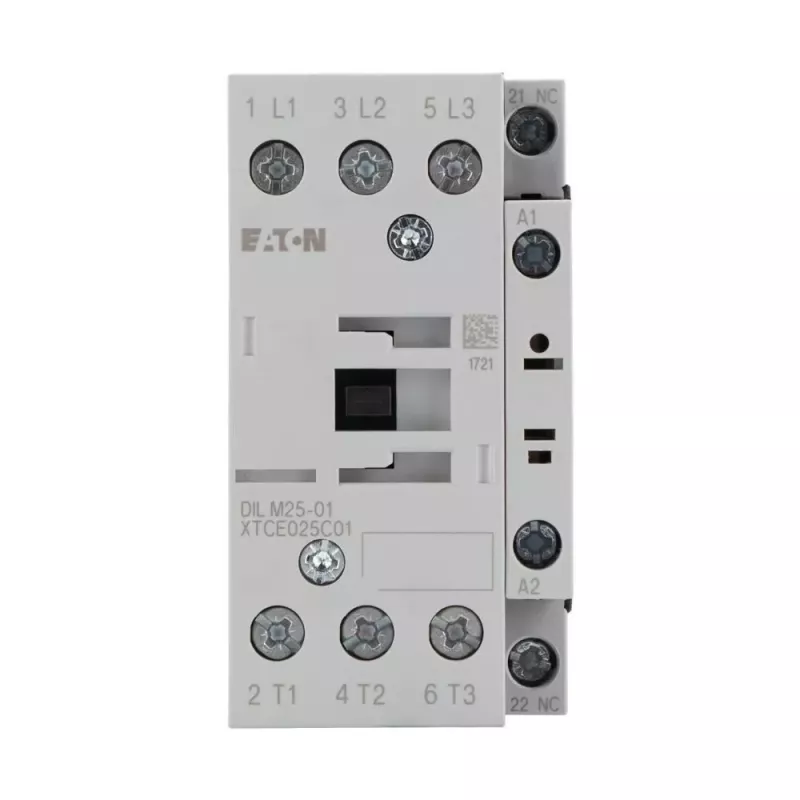

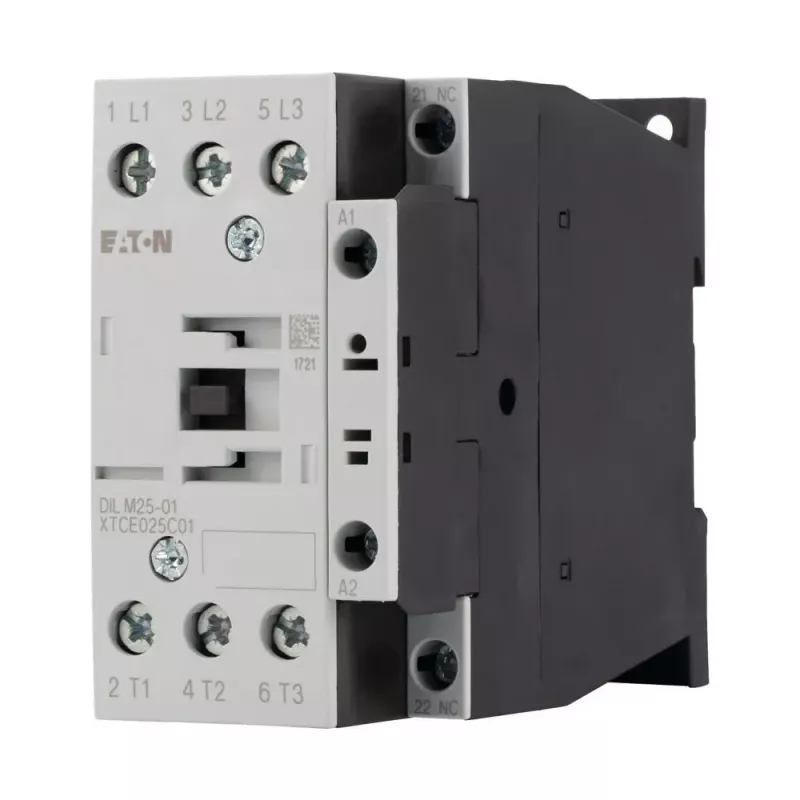

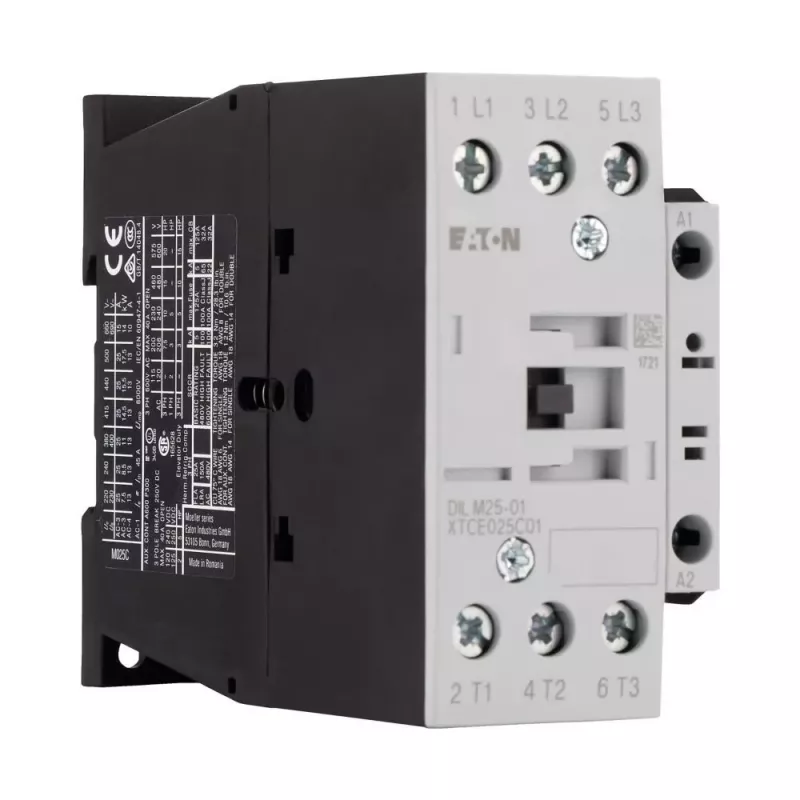

Eaton DILM25-01(RDC24) Contator tripolar, bobina 24 V DC, 25 A AC-3, 1 contacto auxiliar NC, IP00, preto/branco 277178

The Eaton DILM25-01(RDC24) contactor stands out with its DC coil, making it ideal for control circuits where a stable 24 V DC supply is available. Its compact design and reliable switching performance suit a wide range of industrial motor control applications.

Highlights

• 3-pole main contacts rated for 25 A (AC-3, 400 V)
• 1 normally closed (NC) auxiliary contact for control logic
• 24 V DC coil for direct control from PLC or DC power sources
• IP00 protection, intended for installation in suitable enclosures
• DIN rail or screw mounting for flexible installation

In daily use

This contactor is commonly used to switch three-phase motors up to 11 kW at 400 V AC. The NC auxiliary contact can be used for status feedback or interlocking. The DC coil ensures reliable operation even with voltage fluctuations typical in battery-backed systems.

Full specifications

• Product Type: Contactor
• Number of Poles: 3
• Auxiliary Contacts: 1 NC
• Coil Voltage: 24 V DC
• Rated Operational Current (AC-3, 400 V): 25 A
• Rated Operational Current (AC-1, 400 V): 45 A
• Rated Power (AC-3, 400 V): 11 kW
• IP Protection Rating: IP00
• Mounting Type: DIN Rail / Screw Mounting
• Terminal Type: Screw Terminals
• Operating Temperature: -25 to +60 °C
• Electrical Life: > 1.5 Million Operations
• Mechanical Life: > 10 Million Operations
• Standards: IEC/EN 60947, VDE 0660, UL, CSA
• Series: DILM
• Coil Type: DC
• Color: Black / White

Final note

Eaton's DILM series is known for its durability and compliance with international standards, making it a trusted choice for industrial automation.
