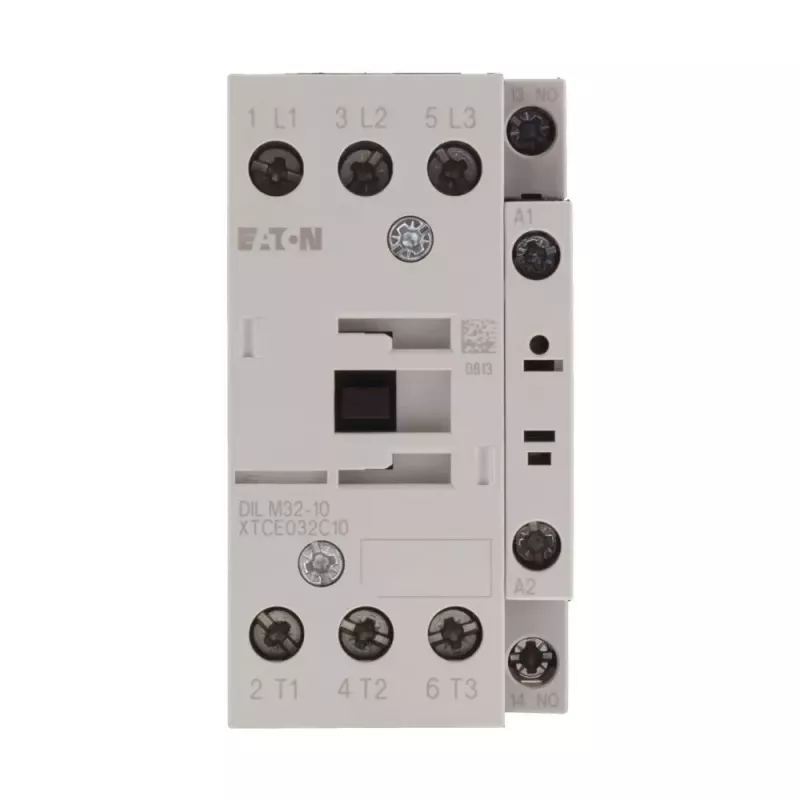

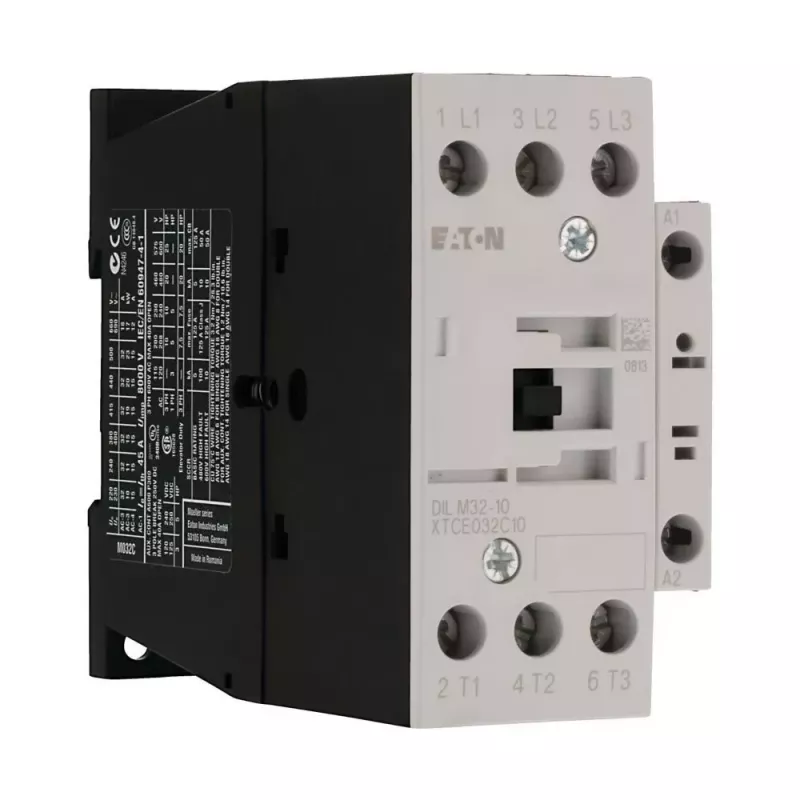

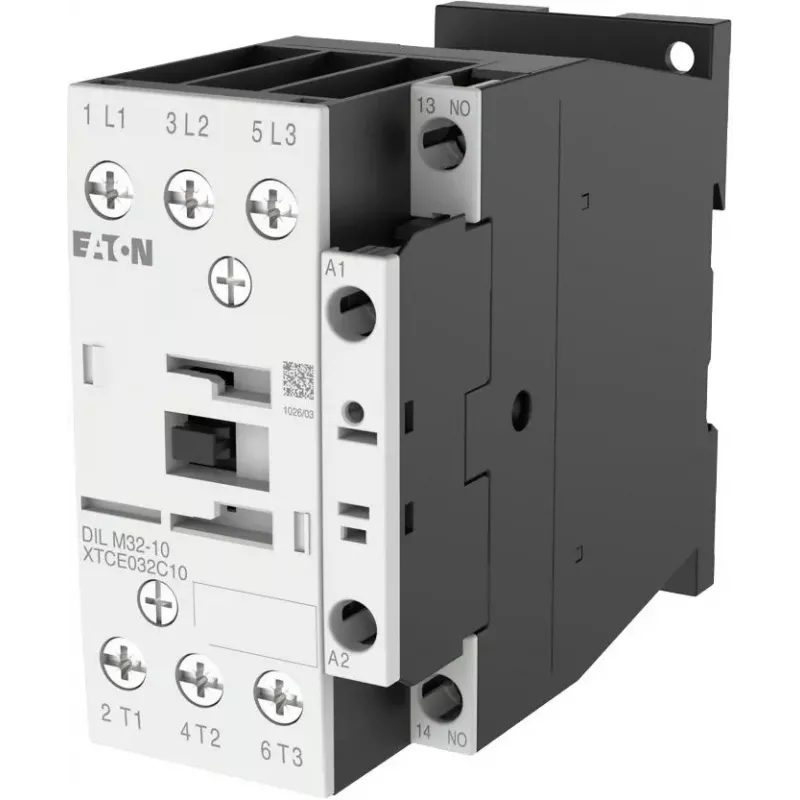

Eaton DILM32-10(RDC24) Contator de potência, tripolar, 32 A, bobina 24-27 V DC, 1 contacto auxiliar NO 277274

Rated for 32 A at AC-3 (400 V), the Eaton DILM32-10(RDC24) power contactor delivers 15 kW of switching capacity in a compact DIN-rail mountable design.

Overview

The Eaton DILM32-10(RDC24) is a 3-pole power contactor with a 24-27 V DC coil and one normally open auxiliary contact. It is engineered for reliable switching of three-phase motors and other AC loads up to 32 A under AC-3 utilization category. The contactor features screw terminals for secure wiring and a rated insulation voltage of 690 V, making it suitable for industrial control panels and motor starters.

What stands out

• High electrical durability: over 1.5 million operations under AC-3 conditions
• Wide operating temperature range from -25 °C to +60 °C
• Rated impulse withstand voltage of 6 kV for robust insulation
• Compact DIN rail or screw mounting for flexible installation

Technical details

• Main contacts: 3 normally open (NO)
• Auxiliary contacts: 1 normally open (NO)
• Rated operational current (AC-3, 400 V): 32 A
• Rated operational power (AC-3, 400 V): 15 kW
• Rated operational current (AC-1, 400 V): 50 A
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Degree of protection: IP20
• Terminal type: screw terminals
• Operating temperature range: -25 °C to +60 °C
• Electrical life (AC-3): >1.5 x 10^6 operations
• Standards: IEC/EN 60947, VDE, UL, CSA

Our verdict

The Eaton DILM32-10(RDC24) combines proven contactor technology with a DC coil for flexible control voltage integration. Its high electrical endurance and wide temperature tolerance make it a dependable choice for demanding industrial environments.
