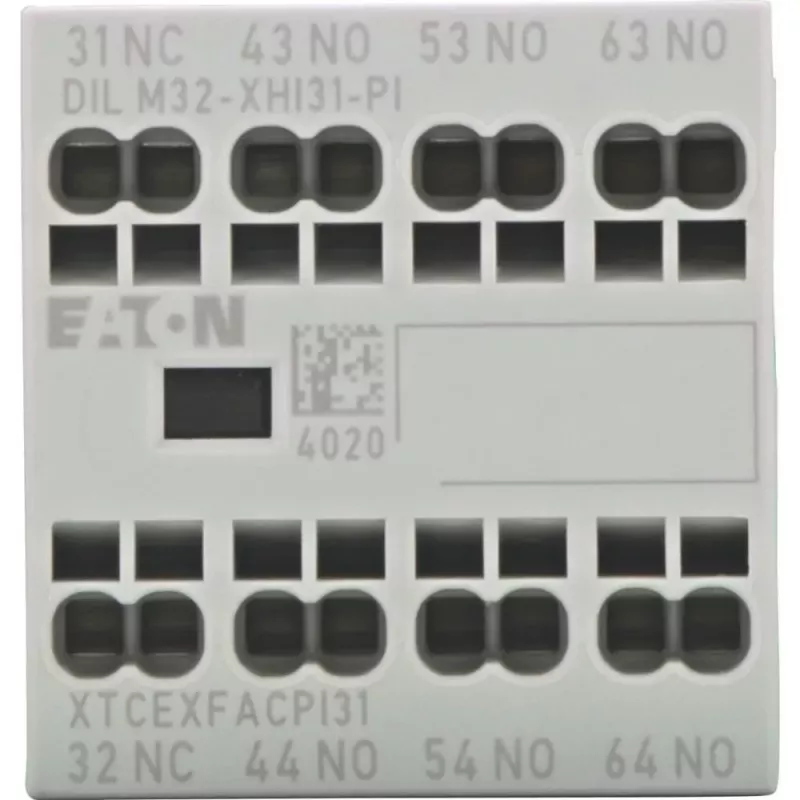

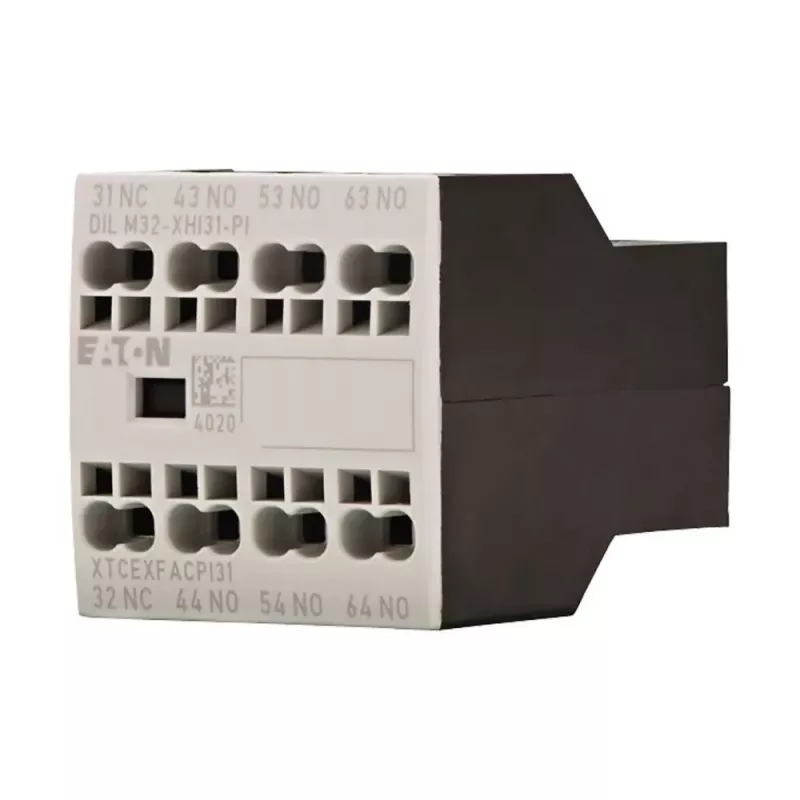

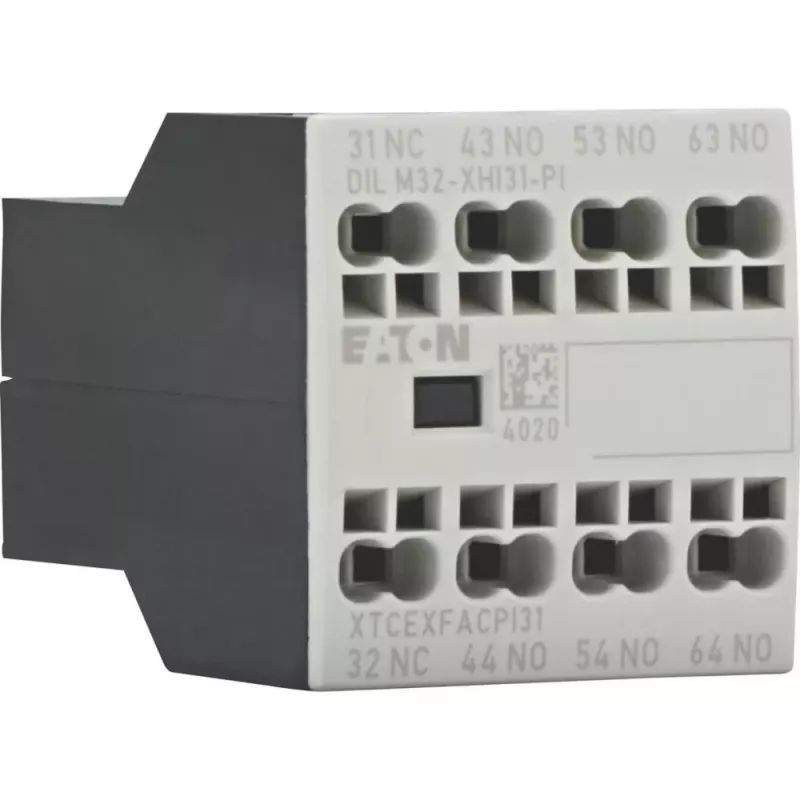

Eaton DILM32-XHI31-PI Módulo de contacto auxiliar, 3NO+1NC, 4A, terminais de parafuso, montagem frontal para contatores DILM7-DILM32 199312

With a rated operational current of 4 A at AC-15 (220-240 V), this auxiliary contact block delivers reliable switching for control circuits. The Eaton DILM32-XHI31-PI provides three normally open and one normally closed contacts, expanding the functionality of compatible contactors.

Overview

The Eaton DILM32-XHI31-PI is a front-mounting auxiliary contact block designed for use with DILM7 to DILM32 contactors. It features a 3NO+1NC contact configuration, enabling flexible control and signaling functions. Screw terminals ensure secure and straightforward wiring.

What stands out

• 3 normally open and 1 normally closed contacts for versatile switching
• Front mounting for easy installation on compatible contactors
• Rated for 4 A at AC-15 (220-240 V) and 3 A at DC-13 (220 V)
• Screw terminals accept solid or stranded conductors from 0.75 to 2.5 mm²
• High mechanical life of 10 million operations

Technical details

• Contact configuration: 3 NO + 1 NC
• Mounting type: Front mounting
• Compatibility: DILM7 to DILM32 contactors
• Rated operational current (AC-15, 220-240 V): 4 A
• Rated operational current (DC-13, 220 V): 3 A
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Degree of protection: IP20
• Terminal type: Screw terminals
• Standards: IEC/EN 60947-5-1
• Operating temperature range: -25 to +60 °C
• Connection capacity: 1 x (0.75 - 2.5) mm², 2 x (0.75 - 2.5) mm²
• Electrical life (AC-15): 1.5 x 10^6 operations
• Mechanical life: 10 x 10^6 operations
• Number of auxiliary contacts: 4
• Series: DILM

Our verdict

A robust auxiliary contact block with clear specifications and proven compatibility. The 3NO+1NC configuration and high mechanical endurance make it a reliable choice for industrial control applications.
