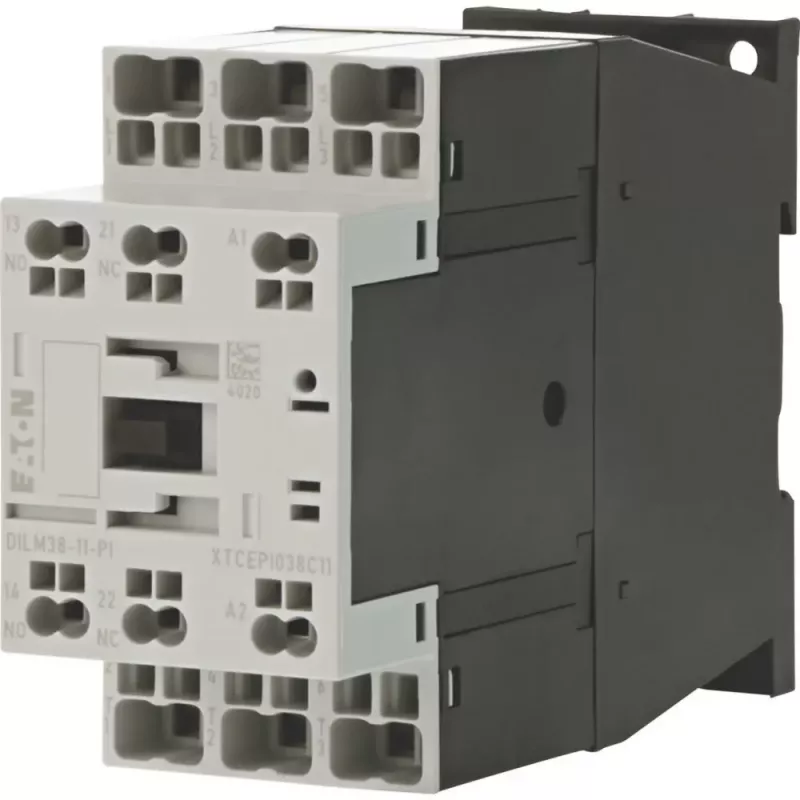

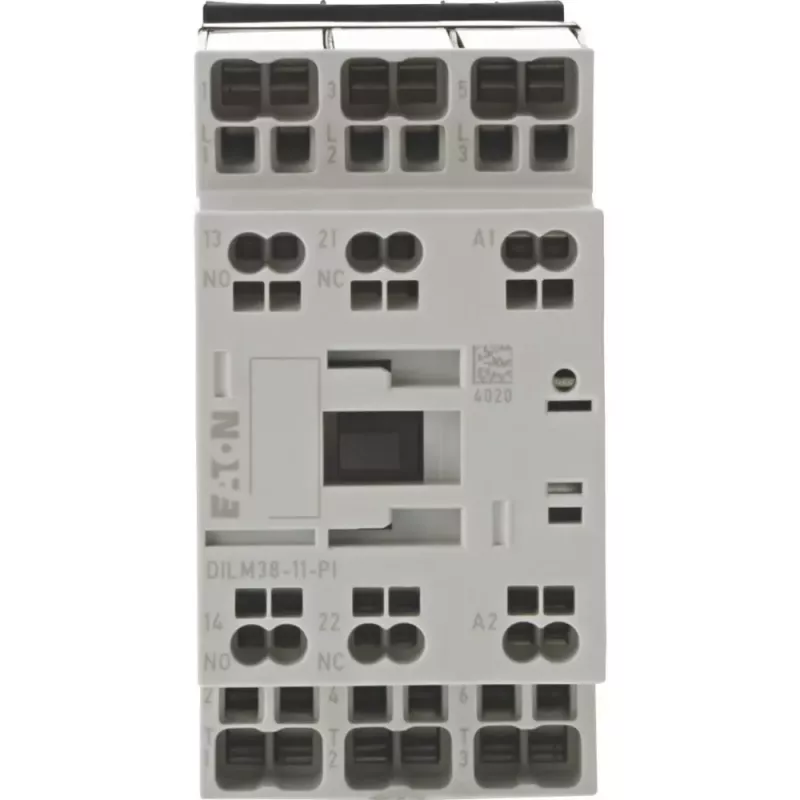

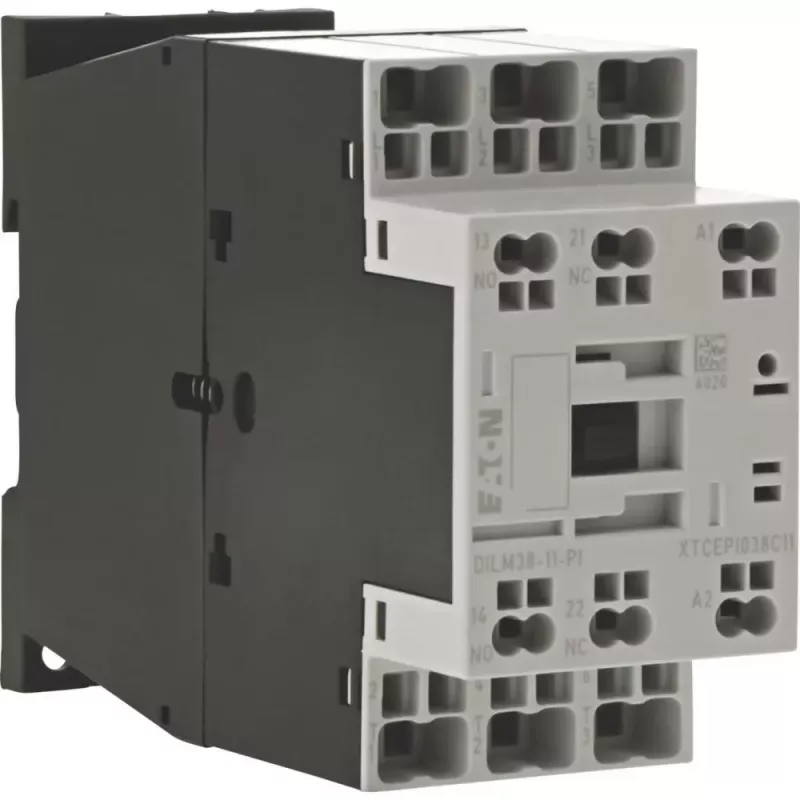

Eaton DILM38-11(RDC24) contator 3 polos, 38 A AC-3, bobina 24 V DC, 1NO+1NC 199298

Industrial electricians and panel builders use the Eaton DILM38-11(RDC24) contactor to switch three-phase motors up to 18.5 kW at 400 V. The 24 V DC coil suits control circuits with PLC outputs or DC power supplies.

Key specifications

• 3-pole main contacts, rated 38 A at AC-3, 400 V
• Rated operational current AC-1: 60 A
• Coil voltage: 24 V DC
• Auxiliary contacts: 1 normally open + 1 normally closed
• Rated insulation voltage: 690 V AC
• Rated impulse withstand voltage: 6 kV
• Mounting: DIN rail or screw
• Terminals: screw type
• Degree of protection: IP20
• Operating temperature: -25 to +60 °C
• Mechanical durability: 10 million operations
• Electrical durability (AC-3): 1.5 million operations

Why choose it

The DILM series is a proven workhorse for motor control. Its compact size and reliable performance make it a standard choice in industrial control panels.

Ideal use cases

• Motor starting and stopping in conveyors, pumps, fans
• Heating and lighting load switching
• Integration into automated systems with DC control

Good to know

The contactor complies with IEC/EN 60947, VDE 0660, UL, and CSA standards.
