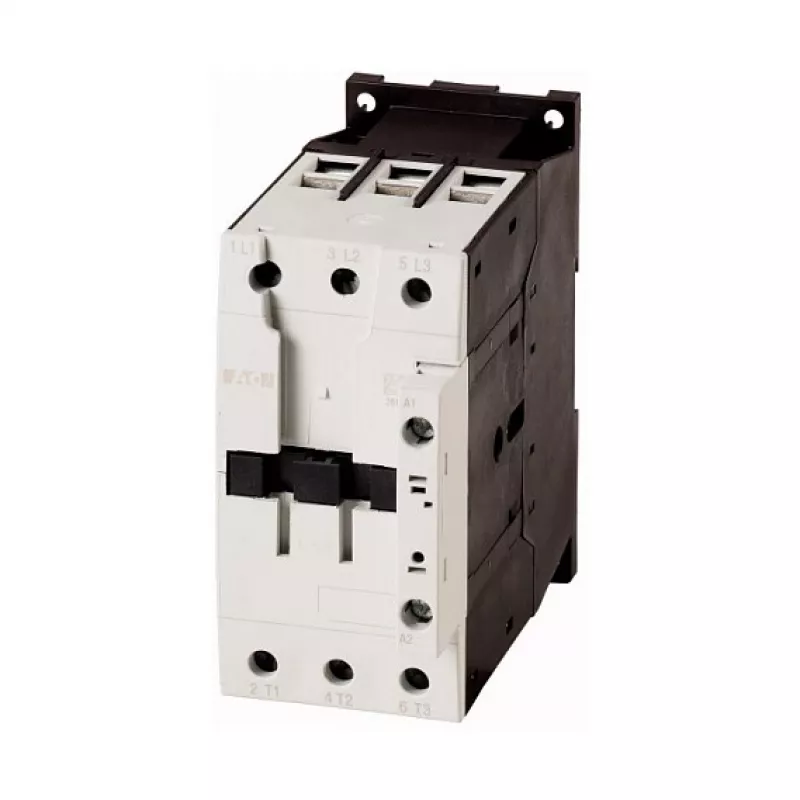

Eaton DILM65 Contator de potência tripolar, bobina 230 V 50 Hz / 240 V 60 Hz, 65 A AC-3, 30 kW 400 V, ligações por parafuso, montagem em calha DIN

The Eaton DILM65 power contactor stands out as a robust, high-performance switching solution for three-phase motor loads up to 30 kW at 400 V AC-3. Unlike many contactors that compromise on durability or ease of installation, the DILM65 combines a compact footprint with a rated operational current of 65 A and an electrical endurance of 1.5 million operations, making it a dependable choice for demanding industrial environments. Its dual-frequency coil (230 V 50 Hz / 240 V 60 Hz) ensures compatibility across regional power standards, while the built-in auxiliary contacts (1 NO + 1 NC) simplify control circuit integration without additional accessories.

Highlights

• 3-pole main circuit rated for 65 A (AC-3, 400 V) and 30 kW motor power
• Dual-rated coil: 230 V at 50 Hz or 240 V at 60 Hz for global use
• Integrated auxiliary contacts: 1 normally open + 1 normally closed
• High electrical life: 1.5 million operations in AC-3 duty
• Rated insulation voltage 690 V and impulse withstand 8 kV for enhanced safety
• Flexible mounting: DIN rail or screw fixing, with screw terminals for secure wiring
• Wide operating temperature range from -25 °C to +60 °C

In daily use

Installing the DILM65 is straightforward thanks to its dual mounting options and clear terminal layout. The screw terminals accept conductors up to 50 mm² (solid) or 2 x 16 mm² (stranded), allowing for flexible wiring in control cabinets. The IP20 protection rating is suitable for indoor panel use, and the compact design saves valuable space. With a mechanical life of 10 million operations and low power loss of 4.5 W per pole, the contactor runs efficiently and quietly, reducing maintenance intervals and energy costs over its long service life.

Full specifications

• Brand: Eaton
• Model: DILM65
• MPN: 277894
• EAN: 4015082778941
• Product type: Power contactor
• Number of poles: 3
• Rated operational power (AC-3, 400 V): 30 kW
• Rated operational current (AC-3, 400 V): 65 A
• Coil voltage: 230 V AC (50 Hz) / 240 V AC (60 Hz)
• Utilization category: AC-3
• Auxiliary contacts: 1 NO + 1 NC
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 8 kV
• Degree of protection: IP20
• Mounting: DIN rail or screw
• Terminal type: Screw terminals
• Main circuit connection capacity: 1 x 50 mm² / 2 x 16 mm²
• Power loss per pole: 4.5 W
• Electrical life (AC-3): 1.5 million operations
• Mechanical life: 10 million operations
• Operating temperature range: -25 °C to +60 °C
• Standards: IEC/EN 60947

Final note

The Eaton DILM65 is a proven workhorse for motor control applications, offering a rare combination of high switching capacity, dual-frequency coil compatibility, and long-term reliability. Whether you are upgrading an existing panel or designing a new installation, this contactor delivers consistent performance and peace of mind.
