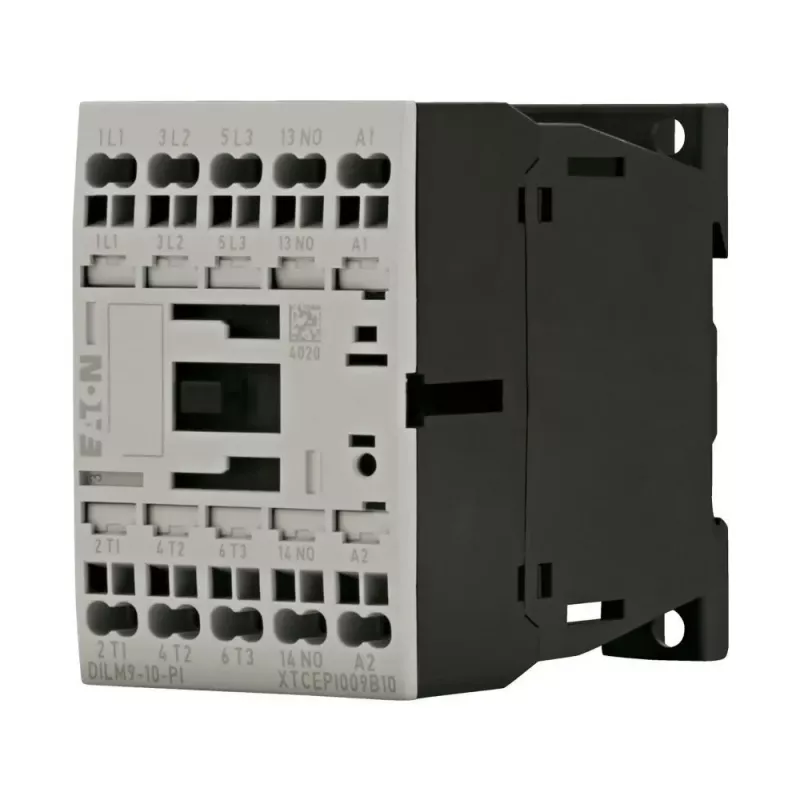

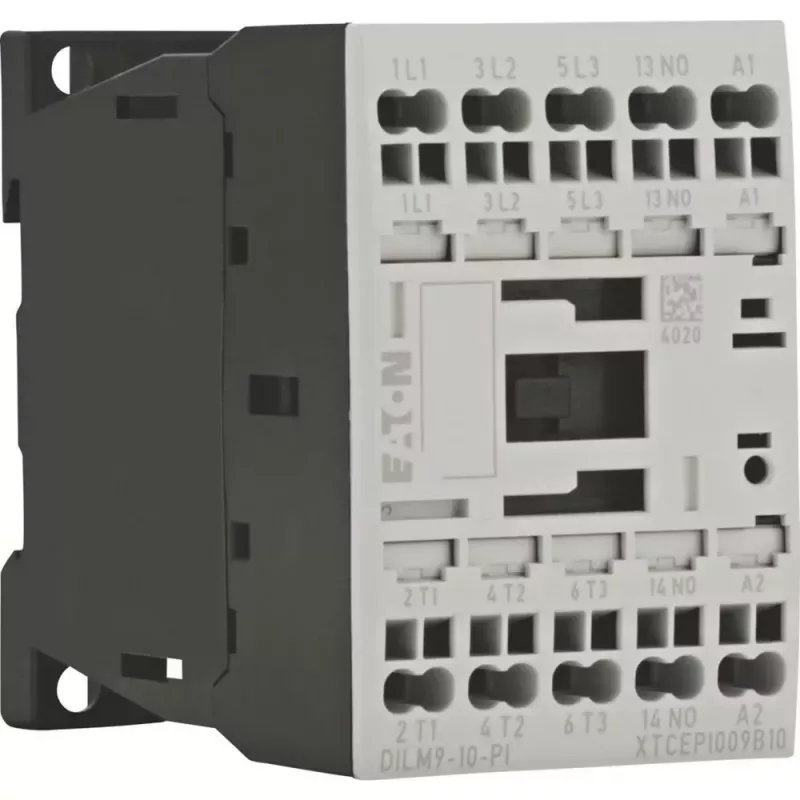

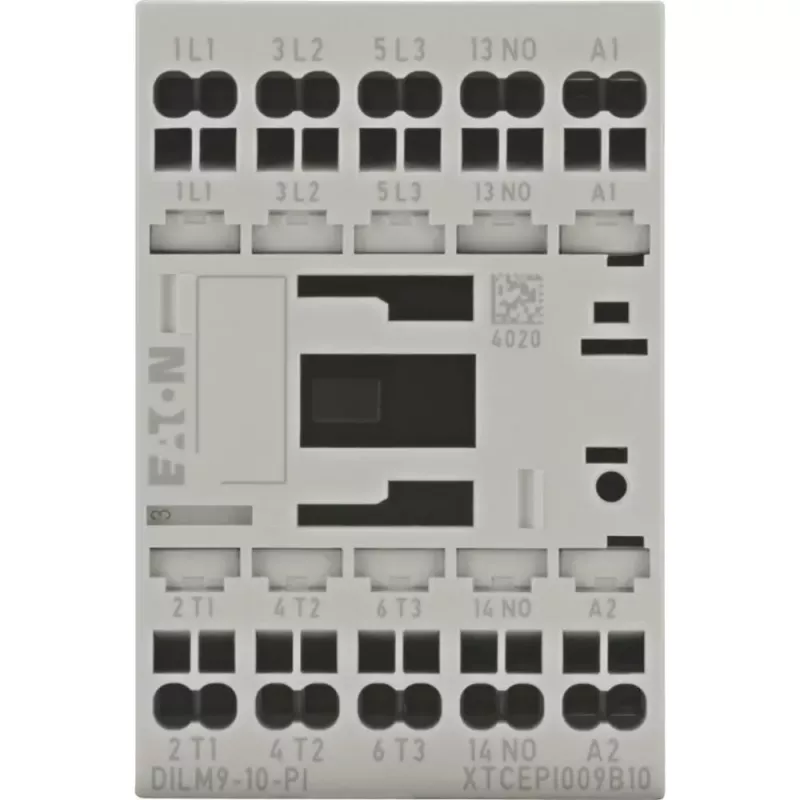

EATON DILM9-10(24VDC) Contator de potência 3 polos 400V 4kW 9A 24V DC 1NO 199233

The EATON DILM9-10(24VDC) power contactor delivers reliable switching for three-phase motors up to 4 kW at 400 V. Its 24 V DC coil and 3-pole design make it a dependable choice for industrial control circuits.

Advantages

Compact DILM9 frame with screw terminals simplifies DIN rail or screw mounting. The contactor offers a long mechanical life of 10 million operations and an electrical life of 1.5 million operations under AC-3 load, reducing maintenance needs.

Suitable for

• Motor starting and stopping in industrial machines
• Heating, lighting, and auxiliary circuit switching
• Control panels requiring a 24 V DC coil with 1 NO auxiliary contact

Key specifications

• Rated operational current (AC-3, 400 V): 9 A
• Rated operational power (AC-3, 400 V): 4 kW
• Coil voltage: 24 V DC
• Number of poles: 3
• Auxiliary contacts: 1 NO
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Degree of protection: IP20
• Ambient operating temperature: -25 to +60 °C
• Short-circuit protection (gG/gL fuse): 20 A

Recommendations

For reliable motor control in industrial environments, pair this contactor with a suitable overload relay and short-circuit protection device.
