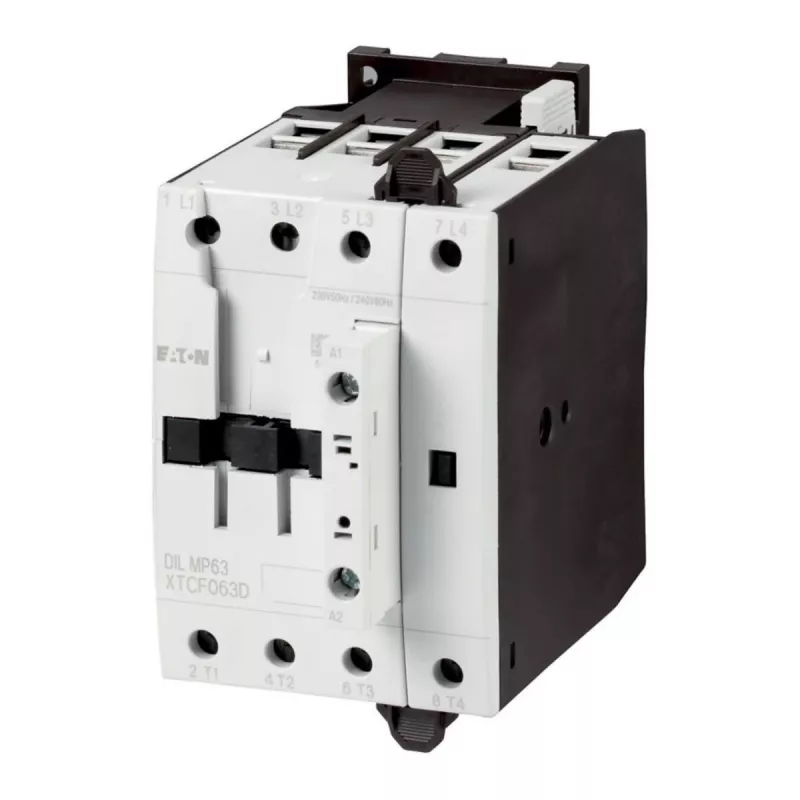

Eaton DILMP63 Contator de potência, 3 polos, 63 A, bobina 230 V AC 50 Hz / 240 V AC 60 Hz, 1 NA + 1 NF, IP00 109855

Switching high-current loads in industrial control systems demands a contactor that can handle 63 A without compromising reliability. The Eaton DILMP63 is a 3-pole power contactor built for exactly that task, providing robust performance for motor control and power switching applications up to 690 V AC.

Who is it for

This contactor is intended for panel builders, system integrators, and maintenance engineers who need a dependable switching device for motors, heaters, or other three-phase loads in industrial environments. It fits into control cabinets and machine control systems where space and performance are critical.

Main features

• Rated operational current of 63 A (AC-3, 400 V) and 80 A (AC-1, 400 V)
• Coil voltage: 230 V AC at 50 Hz and 240 V AC at 60 Hz
• 3 main poles plus 1 normally open (NO) and 1 normally closed (NC) auxiliary contact
• Rated operational voltage up to 690 V AC
• IP00 protection rating for installation inside enclosures
• DIN rail or screw mounting for flexible installation
• Long electrical life: 1.5 million operations (AC-3)
• Mechanical durability of 10 million operations

Specifications

• Number of poles: 3
• Rated operational current (AC-3, 400 V): 63 A
• Rated operational current (AC-1, 400 V): 80 A
• Rated operational voltage: 690 V AC
• Coil voltage: 230 V AC (50 Hz), 240 V AC (60 Hz)
• Rated power (AC-3, 400 V): 30 kW
• Auxiliary contacts: 1 NO + 1 NC
• IP protection rating: IP00
• Mounting type: DIN rail / Screw mounting
• Terminal type: Screw terminals
• Operating temperature range: -25 to +60 °C
• Electrical life (AC-3): 1.5 x 10^6 operations
• Mechanical life: 10 x 10^6 operations
• Colour: Black, White

Tips

Because the DILMP63 has an IP00 rating, it must be installed inside a suitable enclosure that provides protection against dust and moisture. When selecting a coil voltage, ensure your control circuit matches either 230 V 50 Hz or 240 V 60 Hz. The auxiliary contacts can be used for status feedback or interlocking, but verify their current rating for your specific application.
