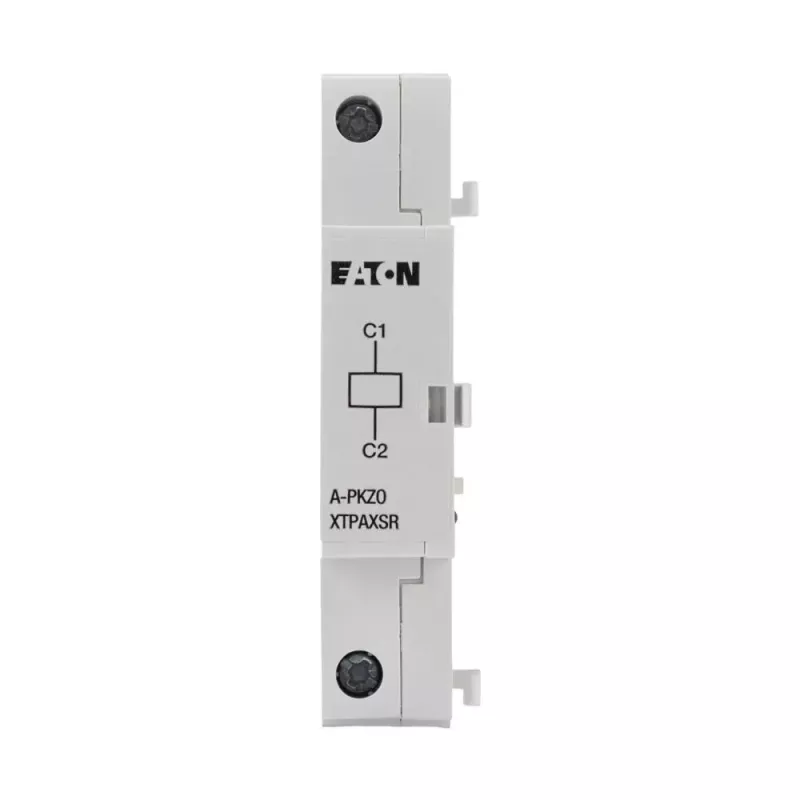

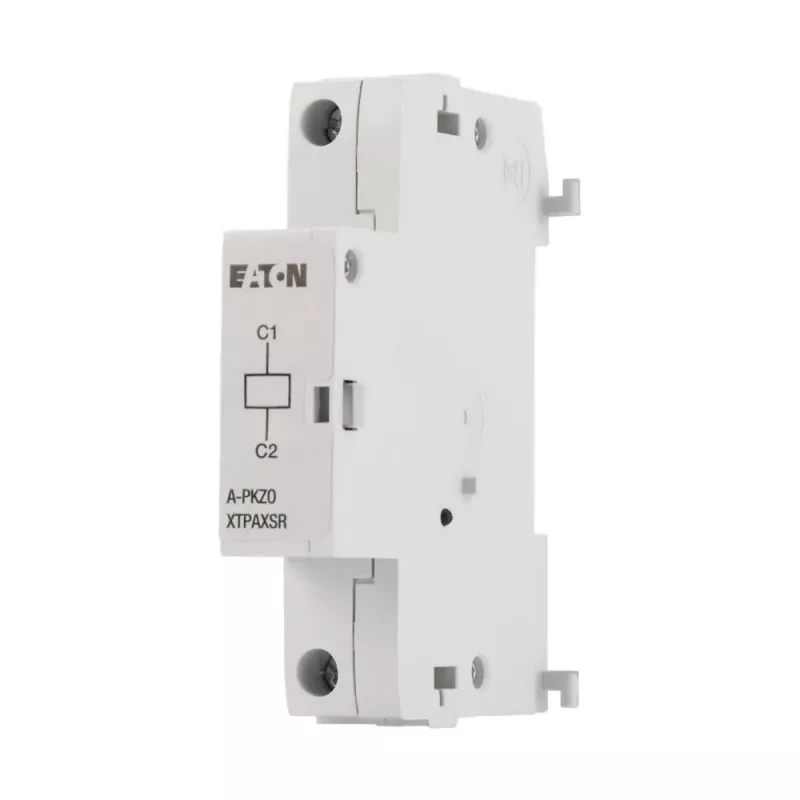

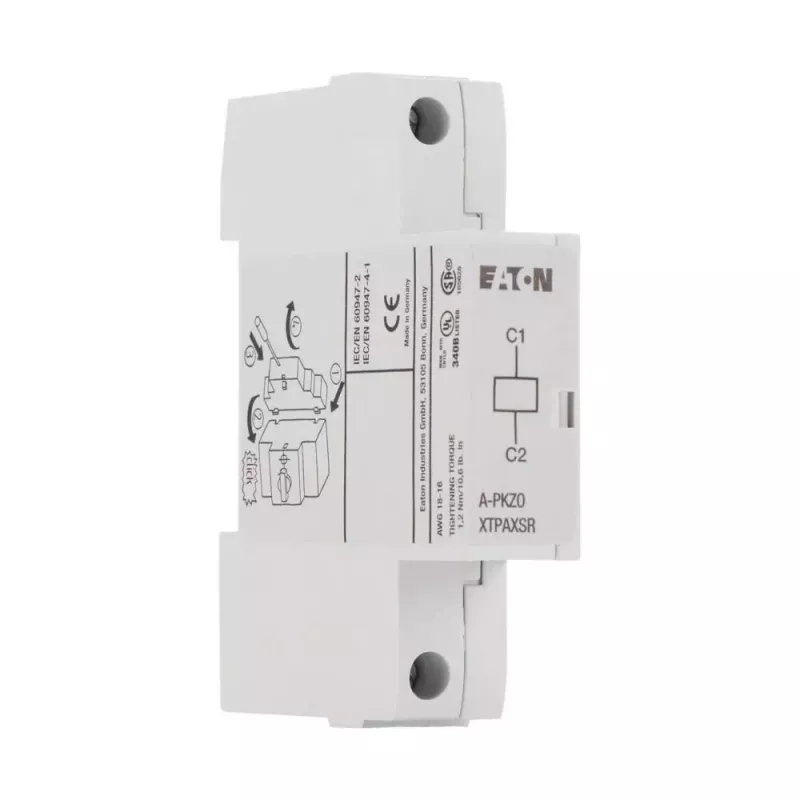

Eaton Disparador shunt 230 V AC para disjuntores PKZ0/PKE A-PKZ0 (073187)

When a motor protective circuit breaker must be switched off remotely—for example, by an emergency stop button, a fire alarm contact, or a PLC output—a shunt trip release is the component that makes it happen. The Eaton A-PKZ0 shunt trip release is built for exactly this task on Eaton PKZ0 and PKE motor protective circuit breakers. It trips the breaker instantly when 230 V AC is applied to its coil, adding remote tripping capability without replacing the breaker itself.

Who is it for

Electrical planners, panel builders, and maintenance technicians who need to integrate remote tripping into motor protection circuits. It suits industrial control panels, machine safety systems, and building automation where a breaker must be opened from a distance.

Main features

• Remote tripping of Eaton PKZ0 and PKE motor protective circuit breakers
• Rated operating voltage 230 V AC, 50 Hz
• Side mounting on left or right of the breaker
• Electromagnetic coil with low current consumption (under 100 mA)
• Screw terminals for secure wiring
• Part of the Eaton xStart series

Specifications

• Accessory type: Shunt trip release
• Compatibility: Eaton PKZ0, PKE motor protective circuit breakers
• Rated operating voltage: 230 V AC
• Rated frequency: 50 Hz
• Function: Remote tripping of circuit breaker
• Mounting position: Side mounting (left or right)
• Operating principle: Electromagnetic coil
• Current consumption: < 100 mA
• Connection type: Screw terminals
• Product series: Eaton xStart
• Ambient operating temperature: -25 to +55 °C
• Storage temperature: -40 to +80 °C

Tips

Check the coil voltage before ordering: this version is for 230 V AC 50 Hz supplies. Mount the release on the side of the breaker that gives the cleanest cable routing. The screw terminals accept standard ferrules or solid conductors; tighten to the torque specified in the breaker manual.
